Position of Parts in Engine Compartment: 1AR-FE

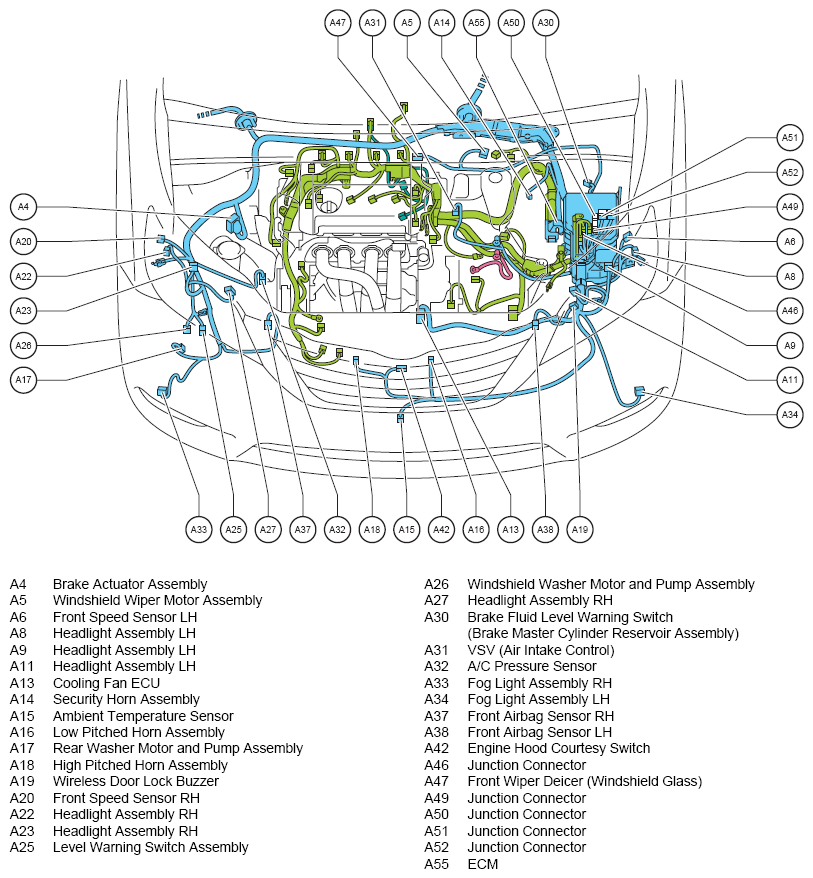

Fig 1: Engine Compartment Parts (1AR-FE; 1 Of 2)
G08846012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

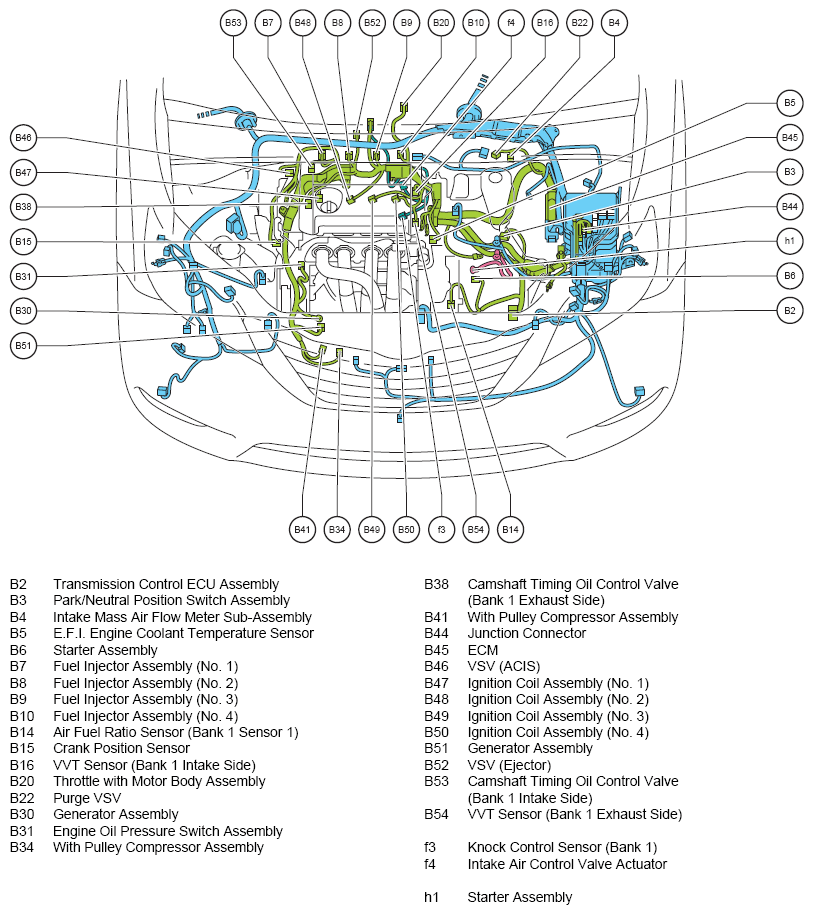

Fig 2: Engine Compartment Parts (1AR-FE; 2 Of 2)
G08846013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
