: Location of Ground Points

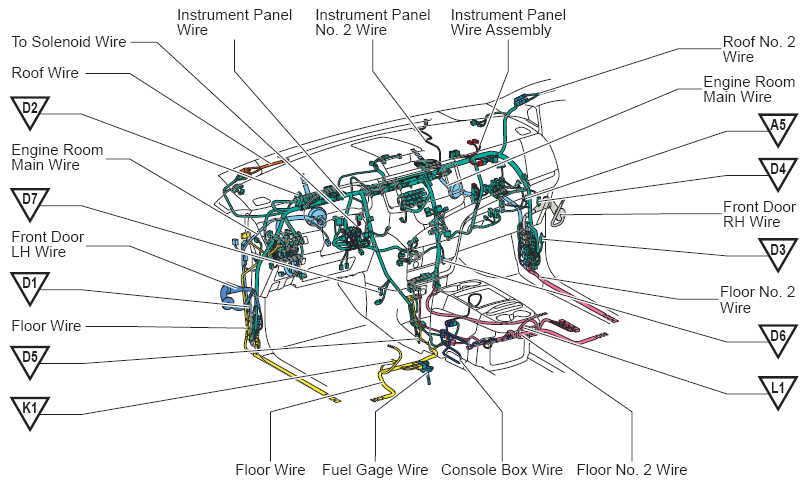

Fig 1: Locating Wire Harness And Ground Points
G08846031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

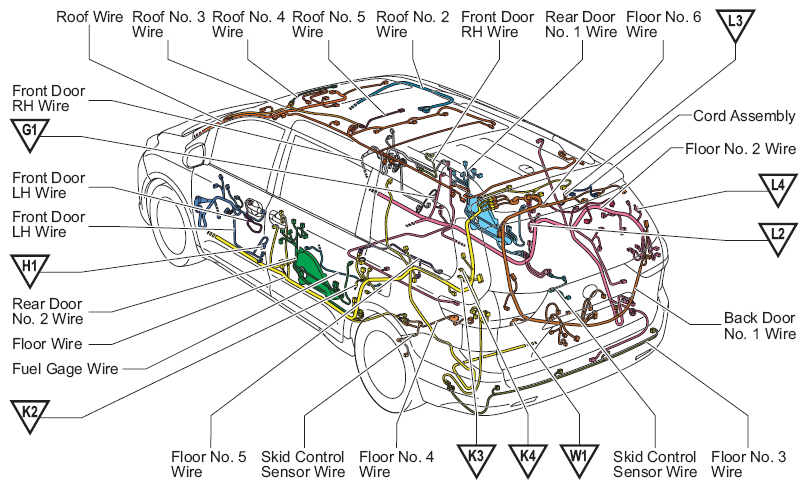

Fig 1: Locating Wire Harness And Ground Points
G08846033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
