: Location of Connector Joining Wire Harness and Wire Harness: Overview

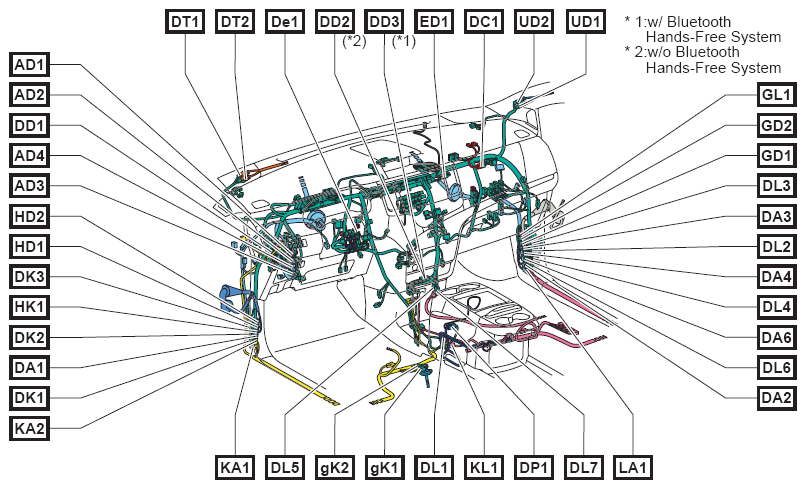

Fig 1: Locating Connector Joining Wire Harness and Wire Harness
G08846030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

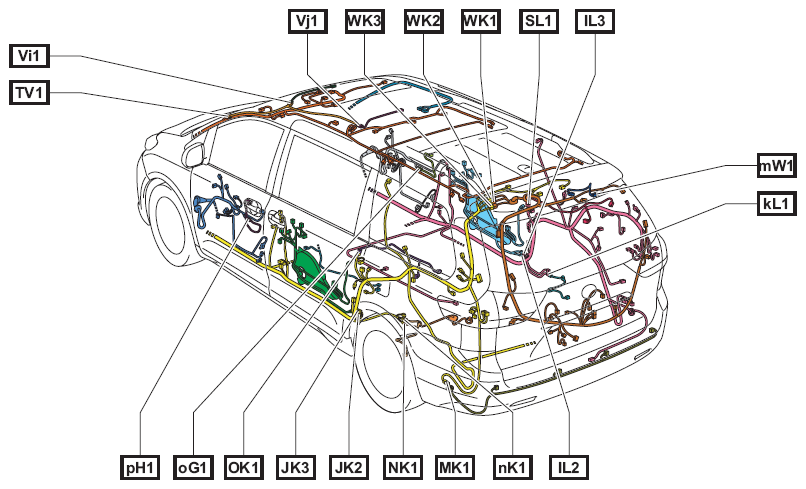

Fig 1: Locating Connector Joining Wire Harness and Wire Harness
G08846032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
