: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points: 2GR-FE

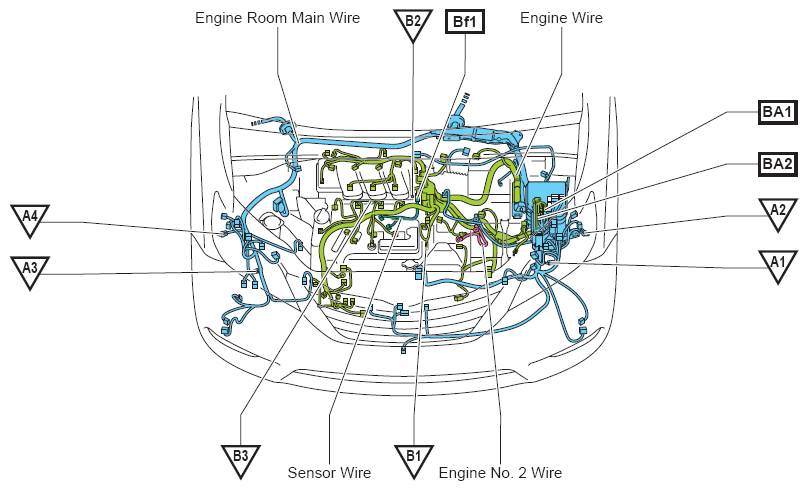

Fig 1: Locating Wiring Harness And Ground Points (2GR-FE)
G08846028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
