Rear Drive Shaft Assembly: Components: Illustration

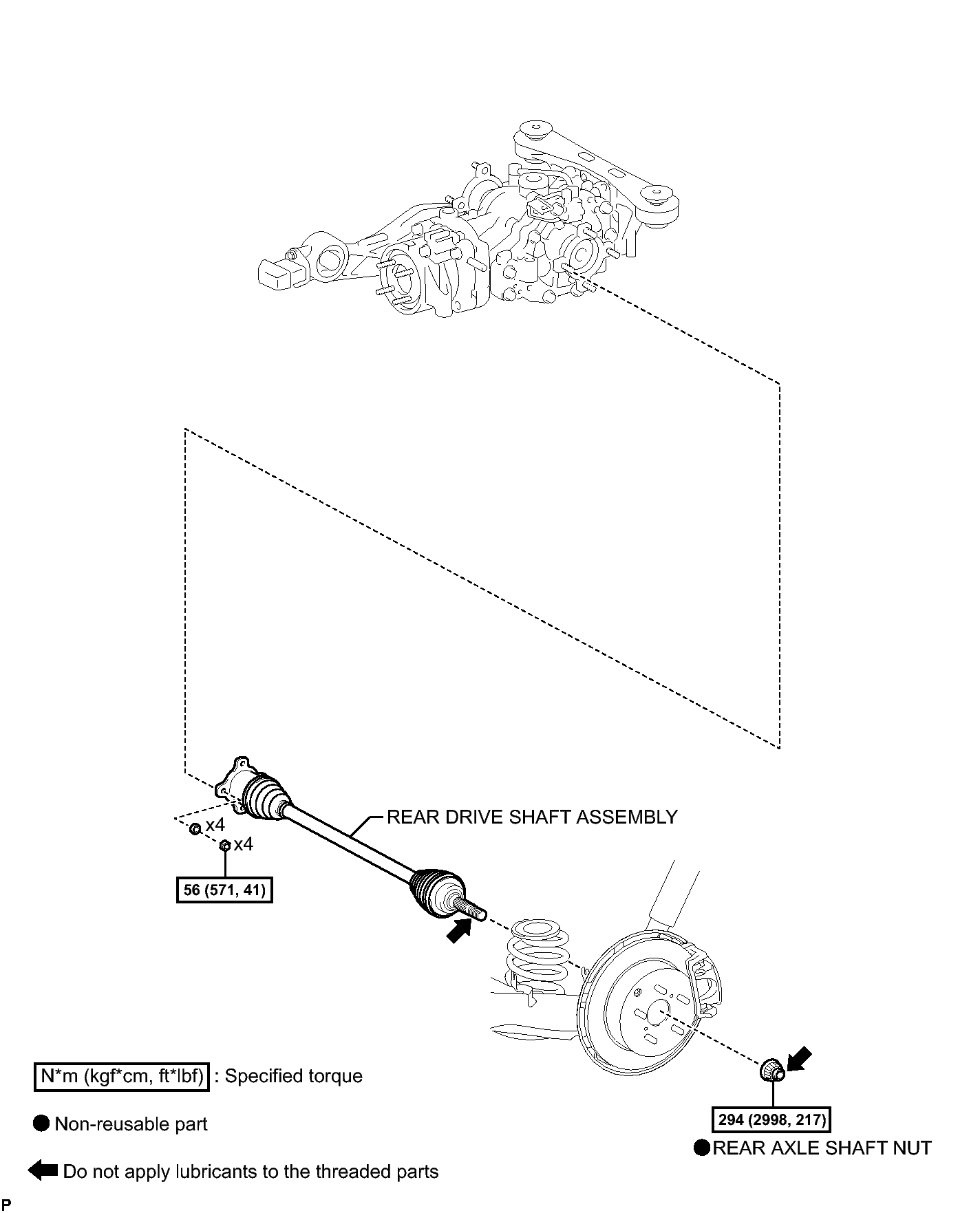

Fig 1: Rear Drive Shaft Assembly Replacement Components With Torque Specifications
GTY301548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

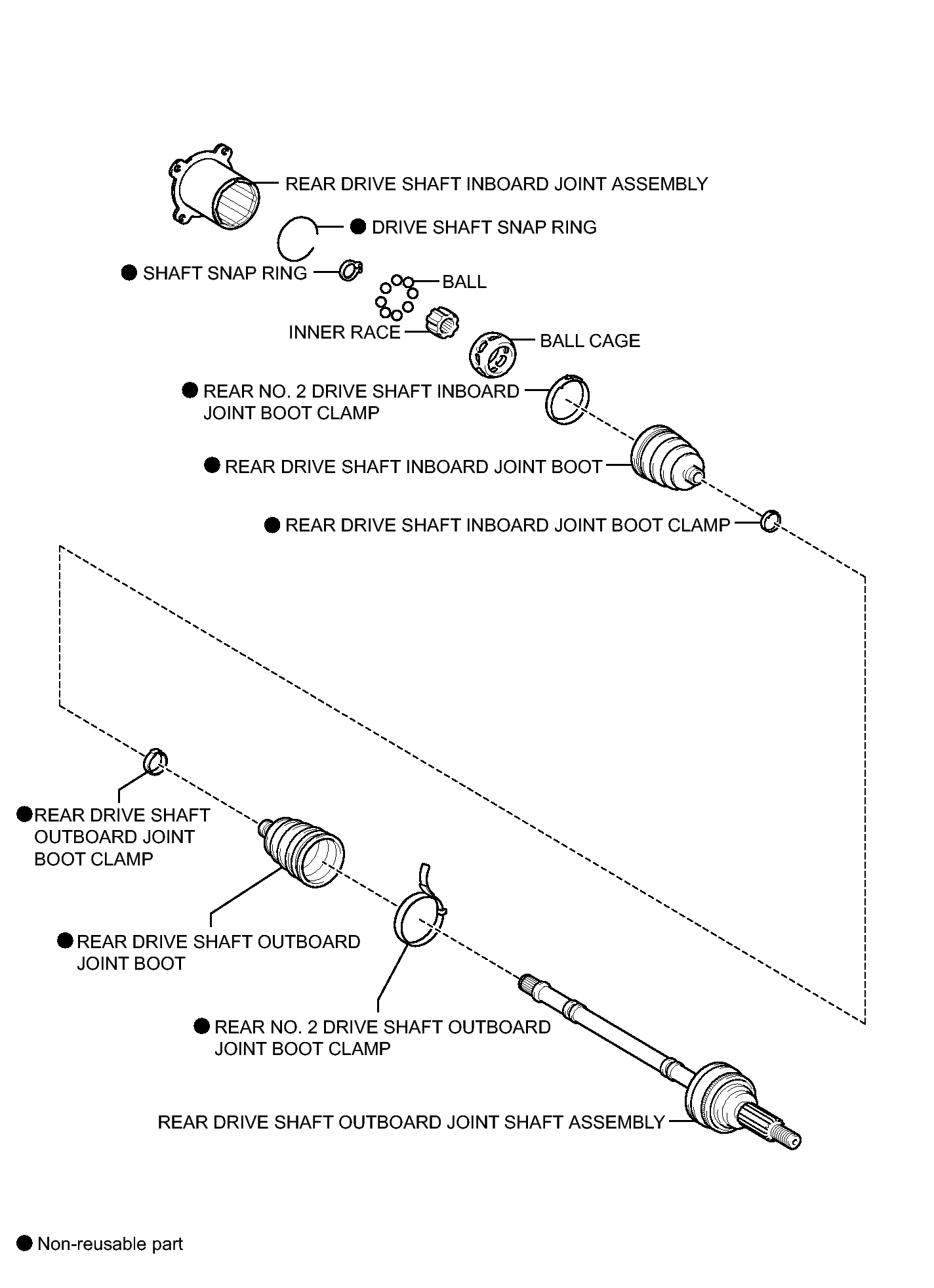

Fig 1: Exploded View Of Rear Drive Shaft Assembly Replacement Components
GTY307568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
