FRONT DRIVE SHAFT ASSEMBLY (for 2GR-FE): Components: Illustration

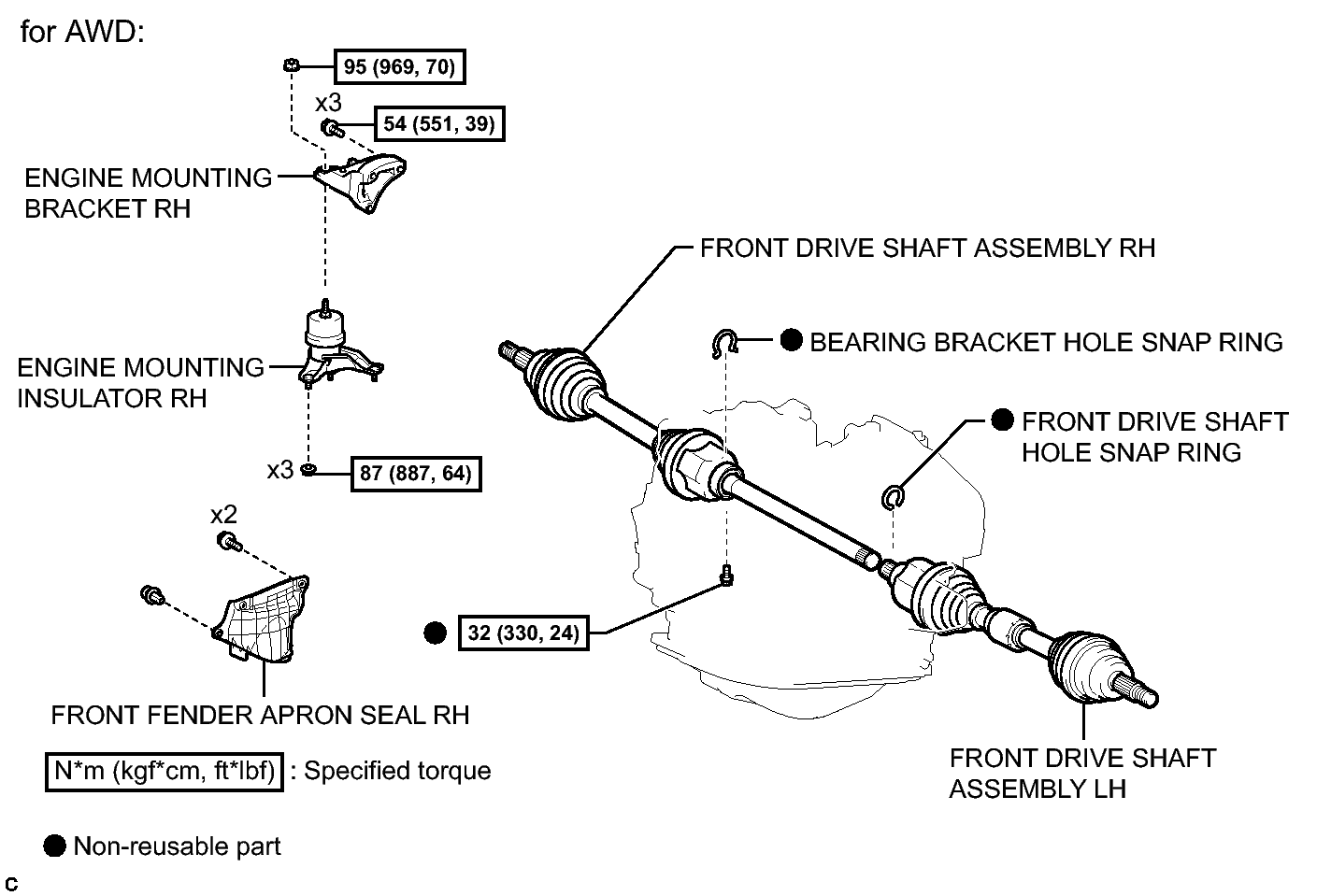

Fig 1: Front Drive Shaft Assembly Replacement Components With Torque Specifications (1 of 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

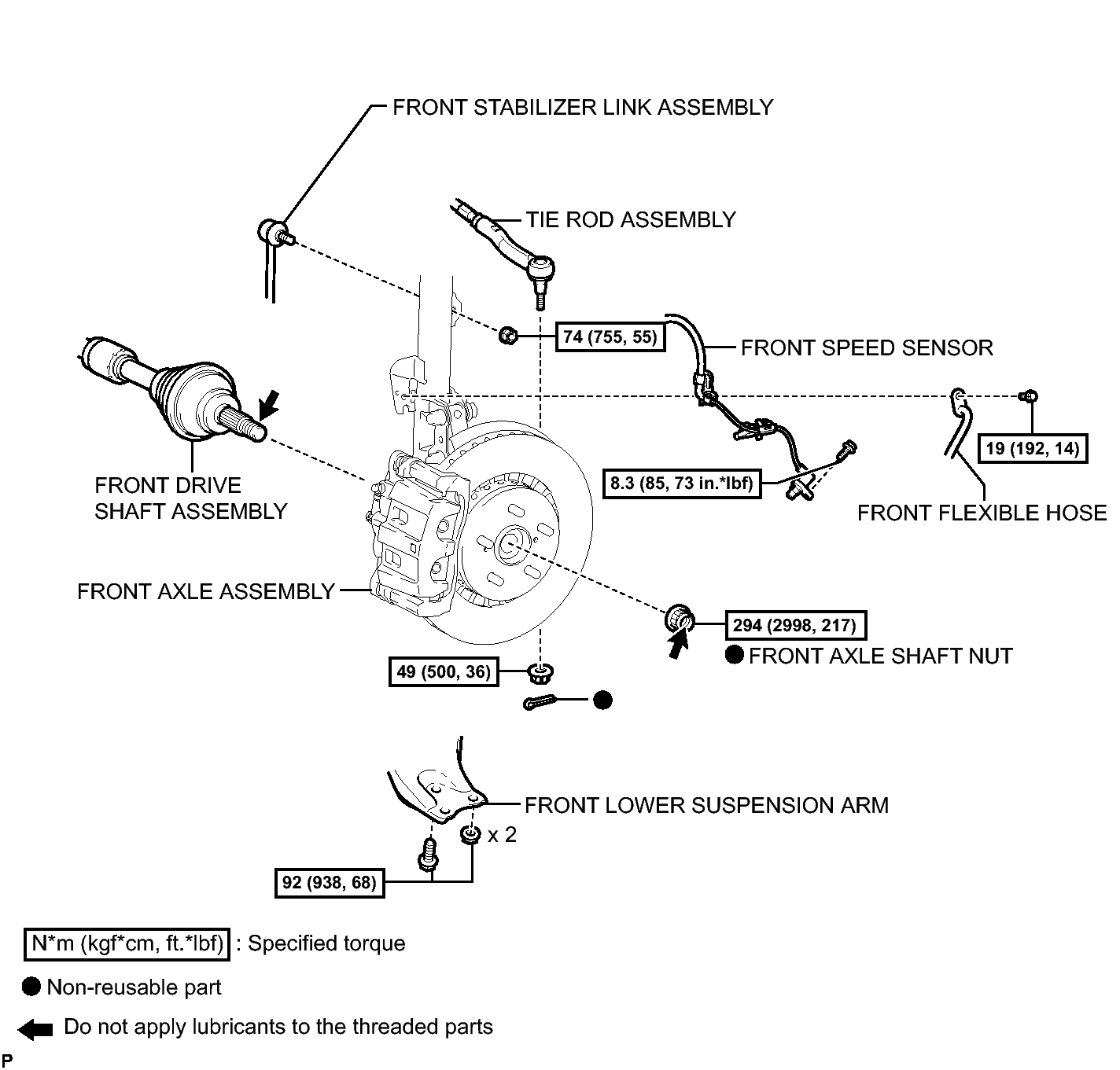

Fig 1: Front Drive Shaft Assembly Replacement Components With Torque Specifications (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

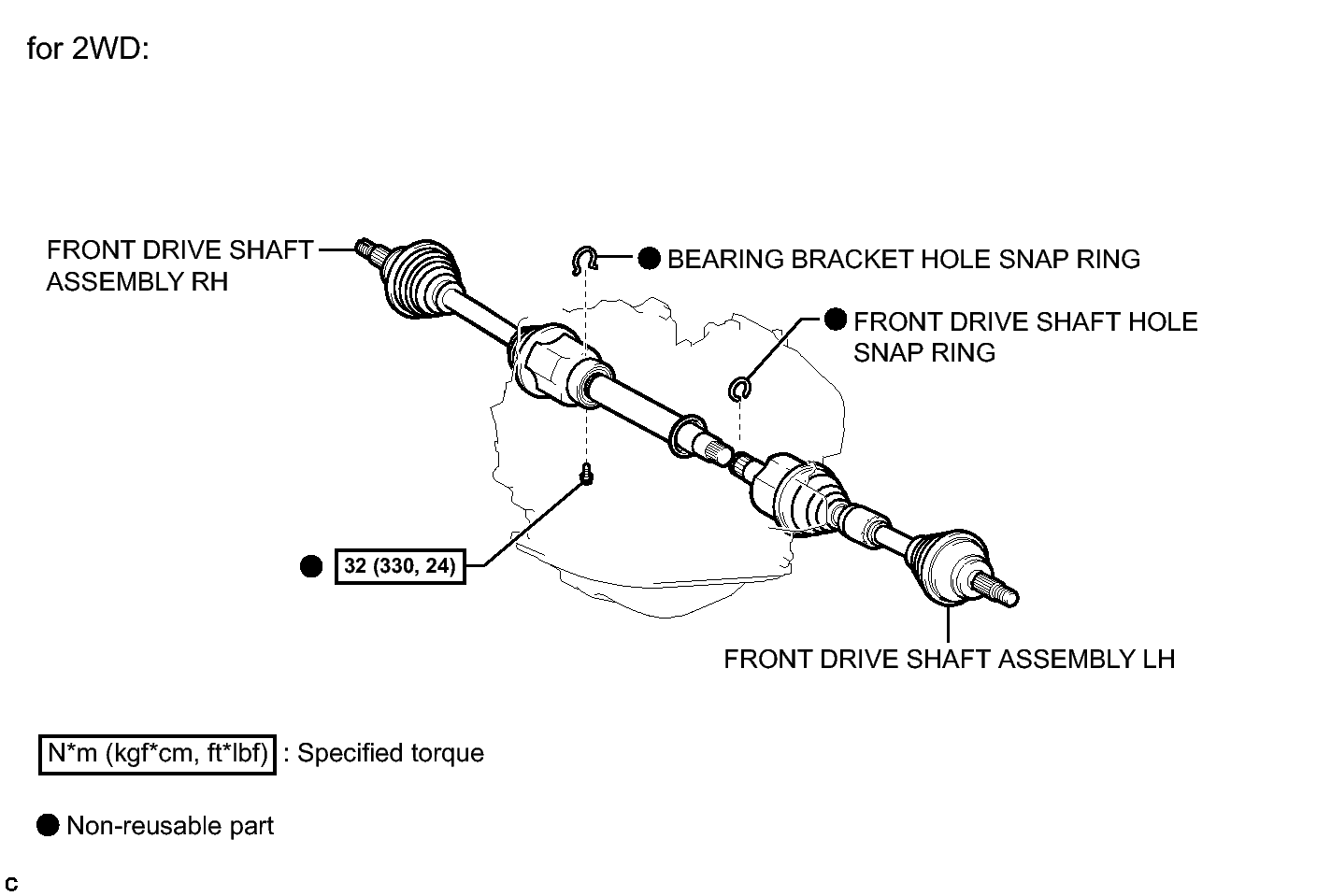

Fig 1: Front Drive Shaft Assembly Replacement Components With Torque Specifications (3 of 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

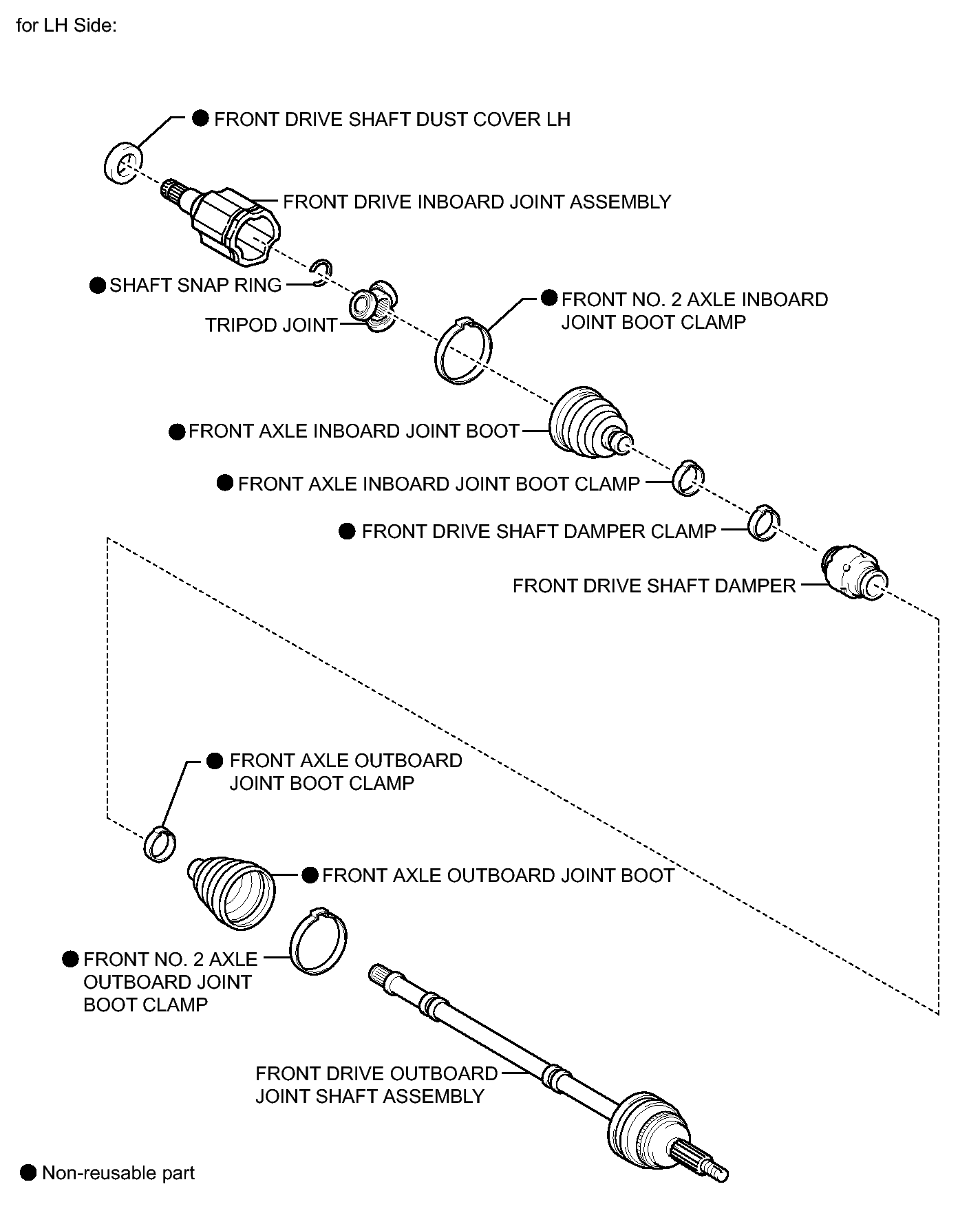

Fig 1: Exploded View Of Front Drive Shaft Assembly Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

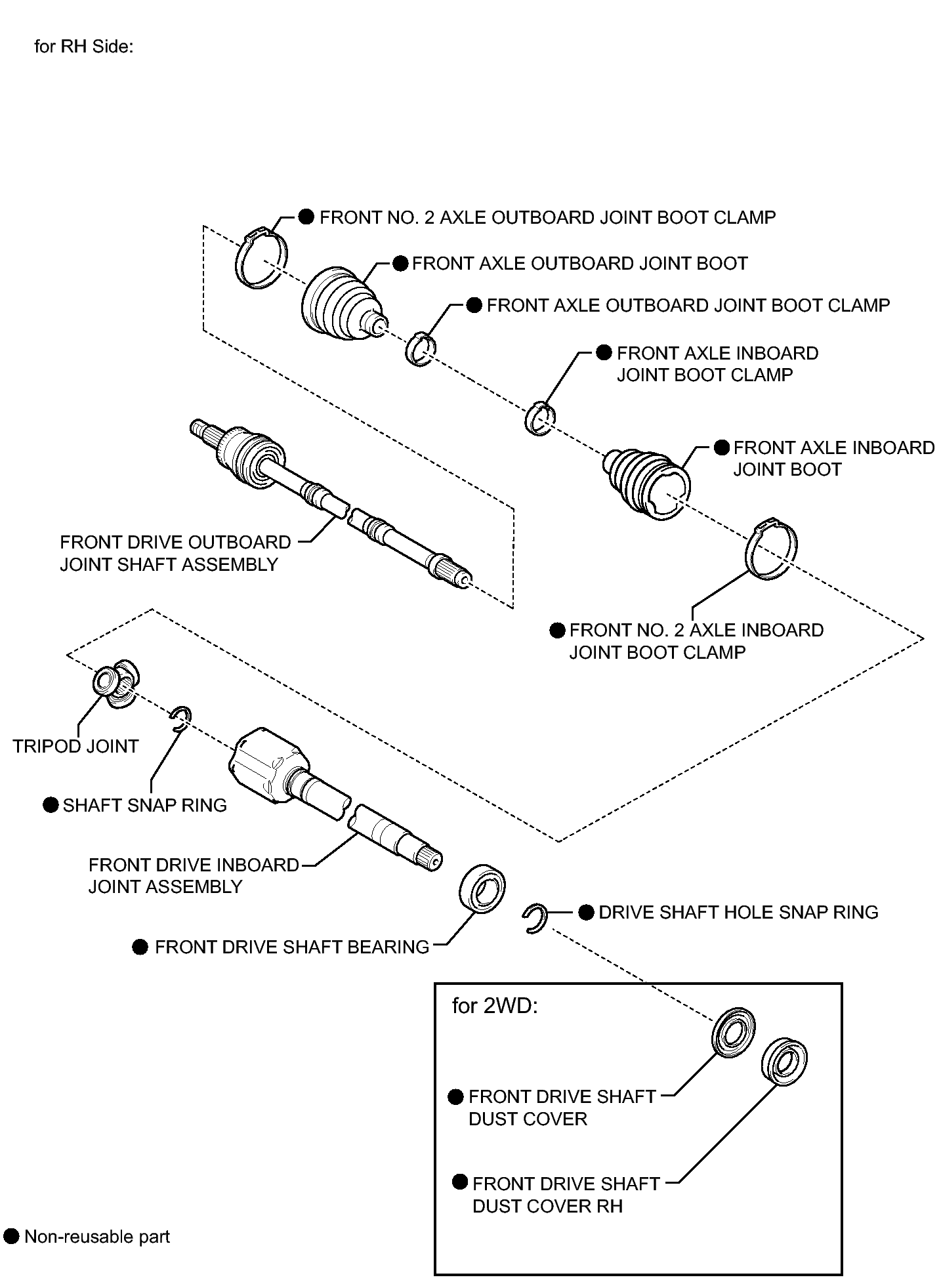

Fig 1: Exploded View Of Front Drive Shaft Assembly Replacement Components (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
