FRONT DRIVE SHAFT ASSEMBLY (for 1AR-FE): Components: Illustration

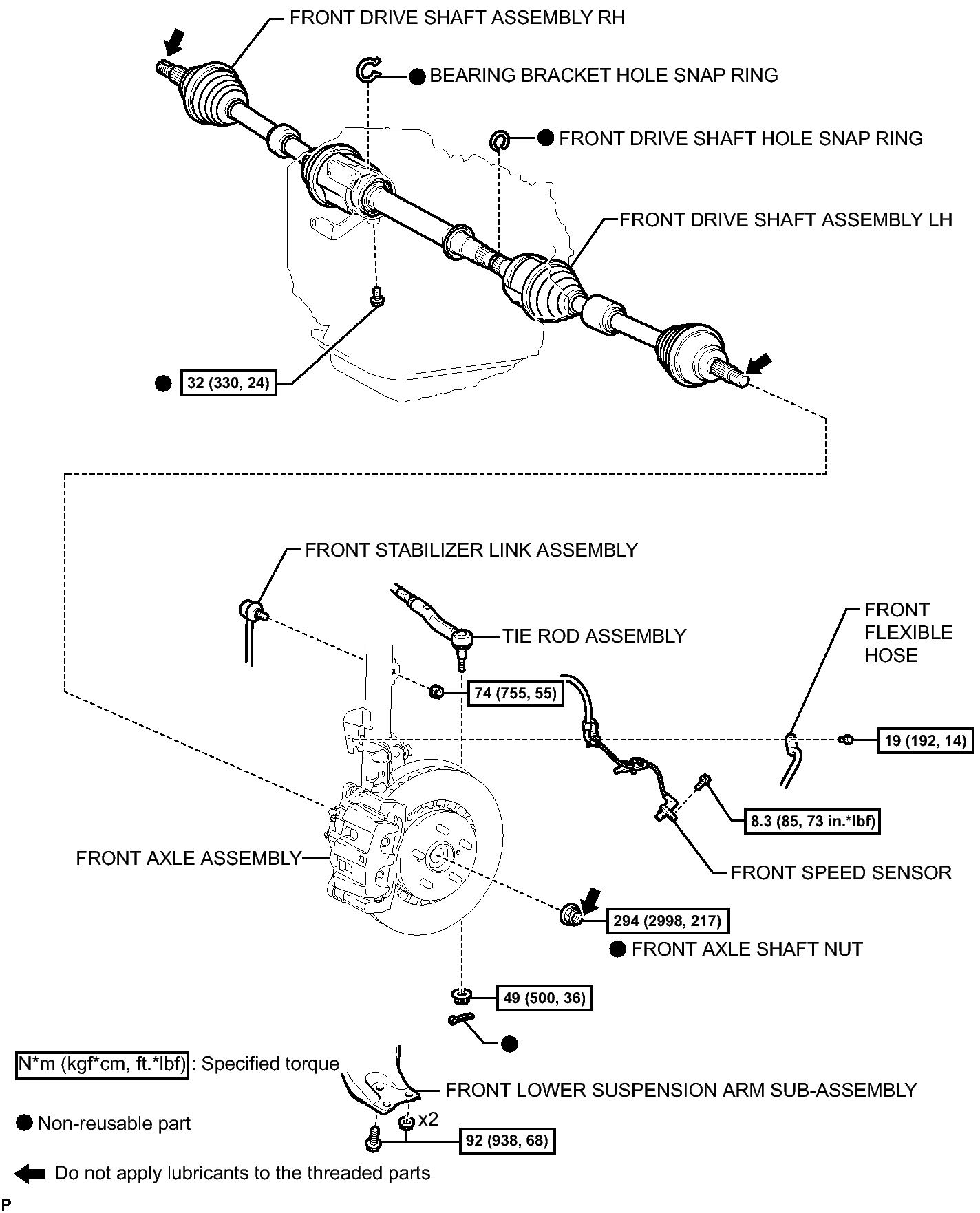

Fig 1: Front Drive Shaft Assembly Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Front Drive Shaft Assembly Replacement Components (LH) (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

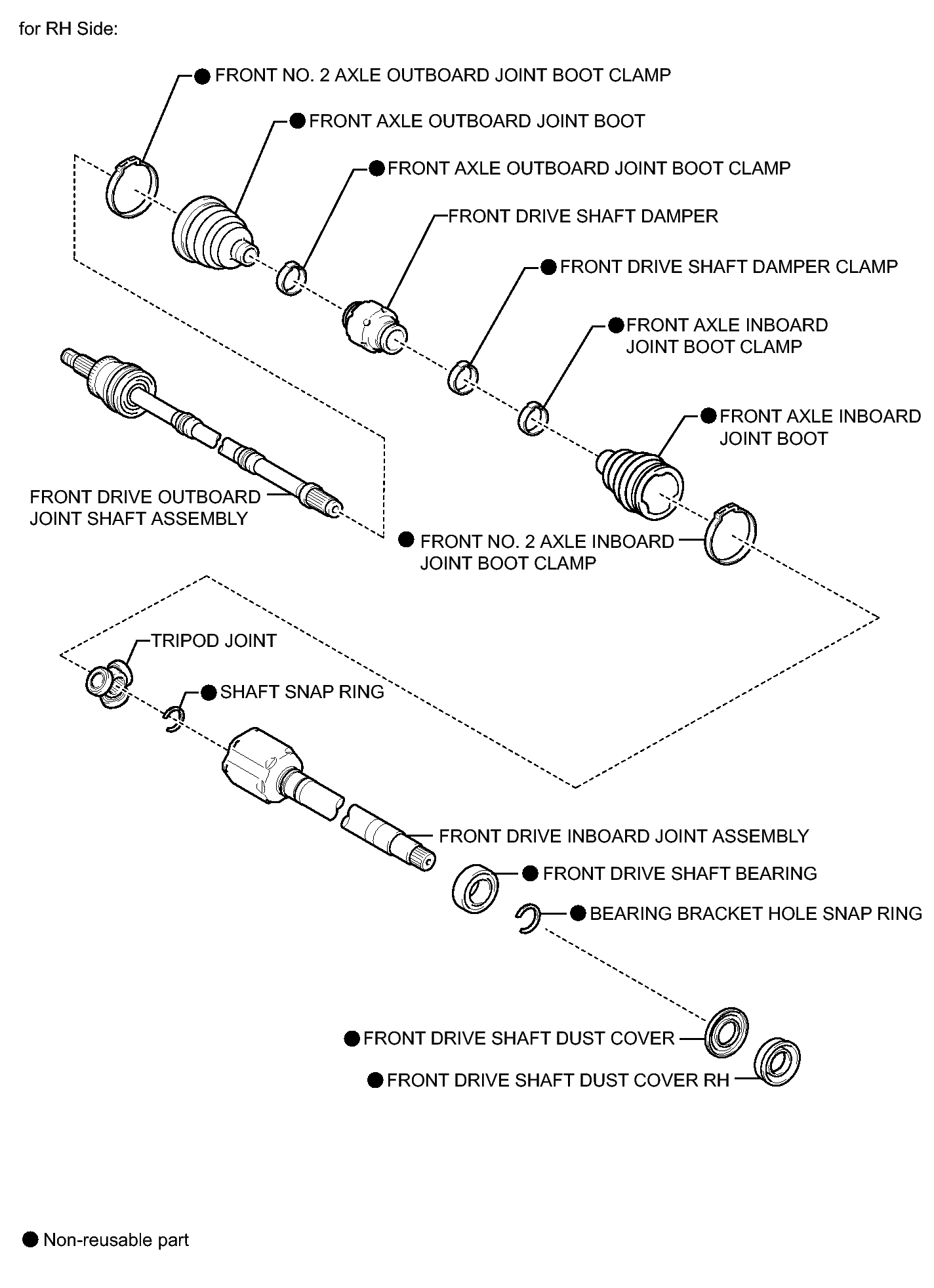

Fig 1: Exploded View Of Front Drive Shaft Assembly Replacement Components (RH) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
