Parking Brake Switch: Components: Illustration

Fig 1: Parking Brake Switch Replacement Components With Torque Specifications (1 of 2)
GTY305622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

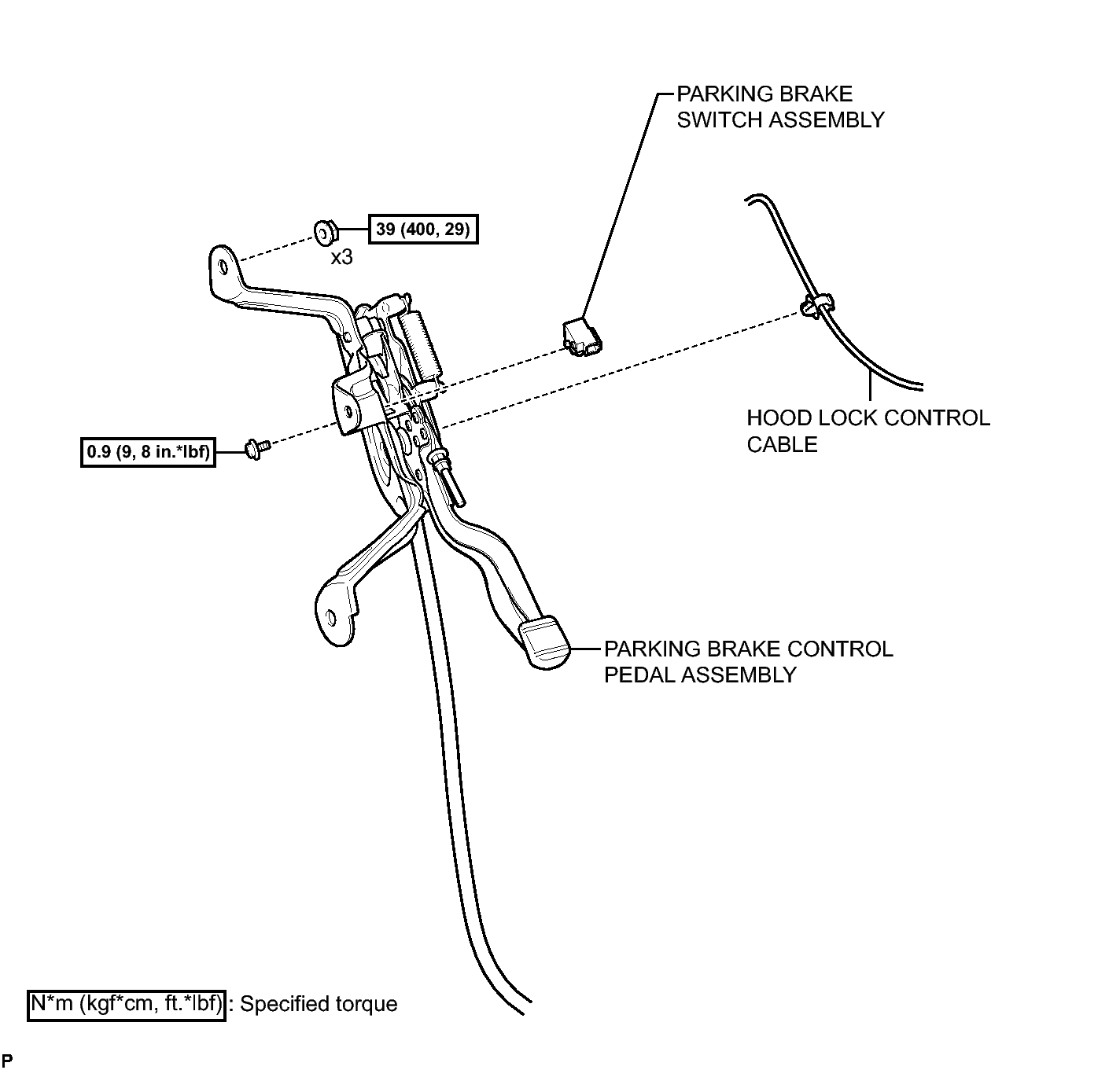

Fig 1: Parking Brake Switch Replacement Components With Torque Specifications (2 of 2)
GTY304896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
