Parking Brake Pedal: Components: Illustration

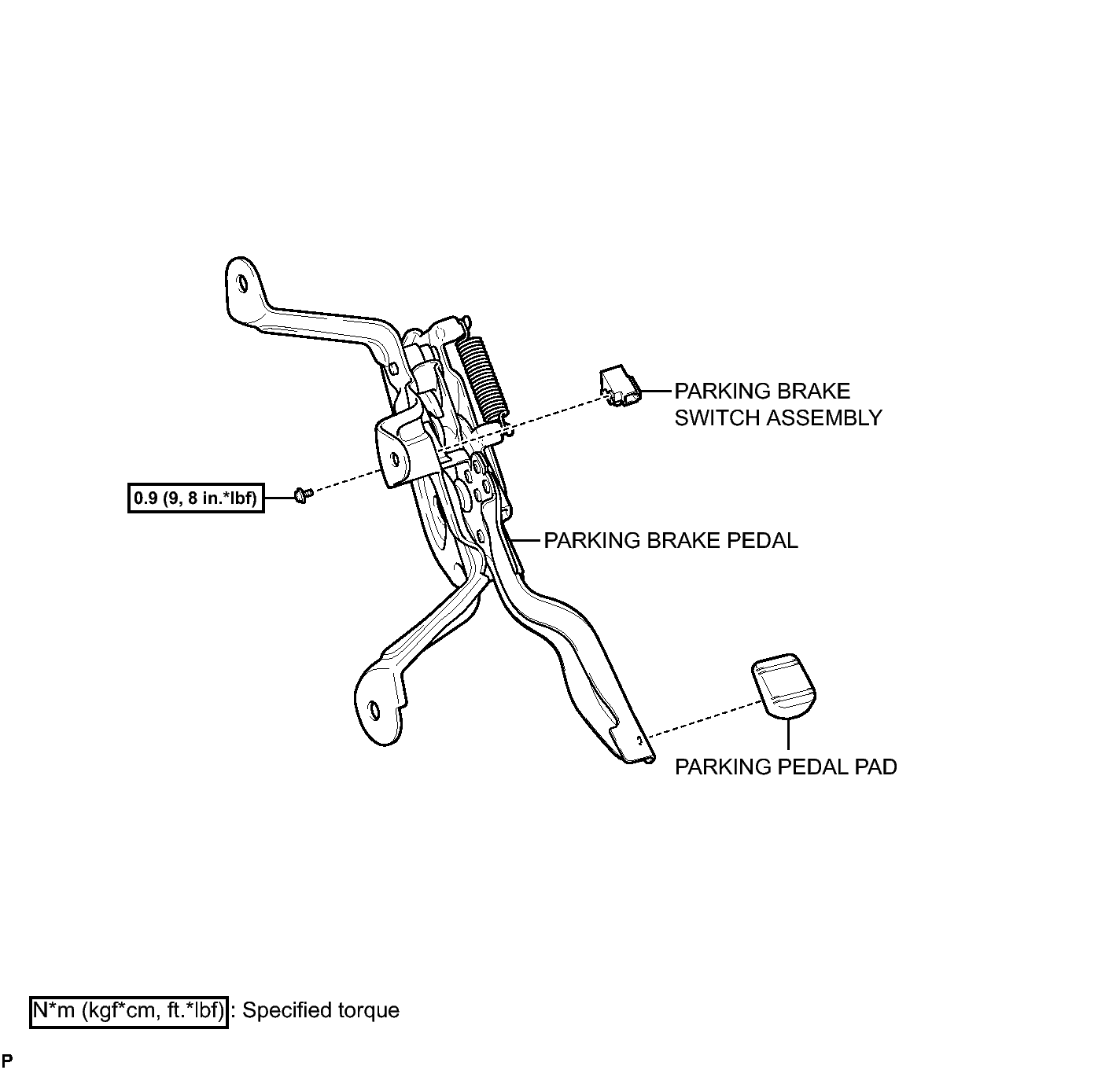

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

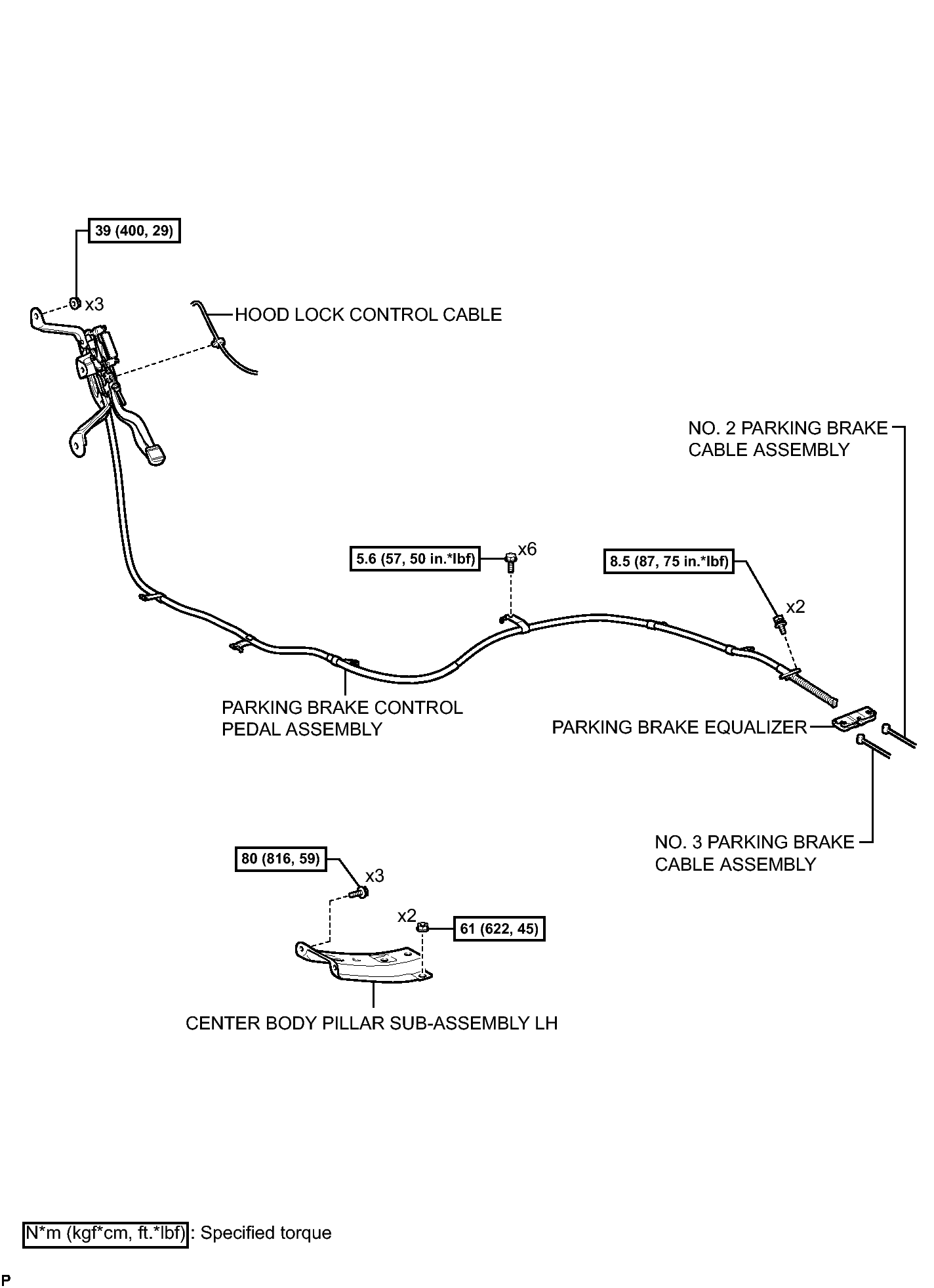

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (2 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (3 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (4 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (5 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
