Parking Brake Cable: Components: Illustration

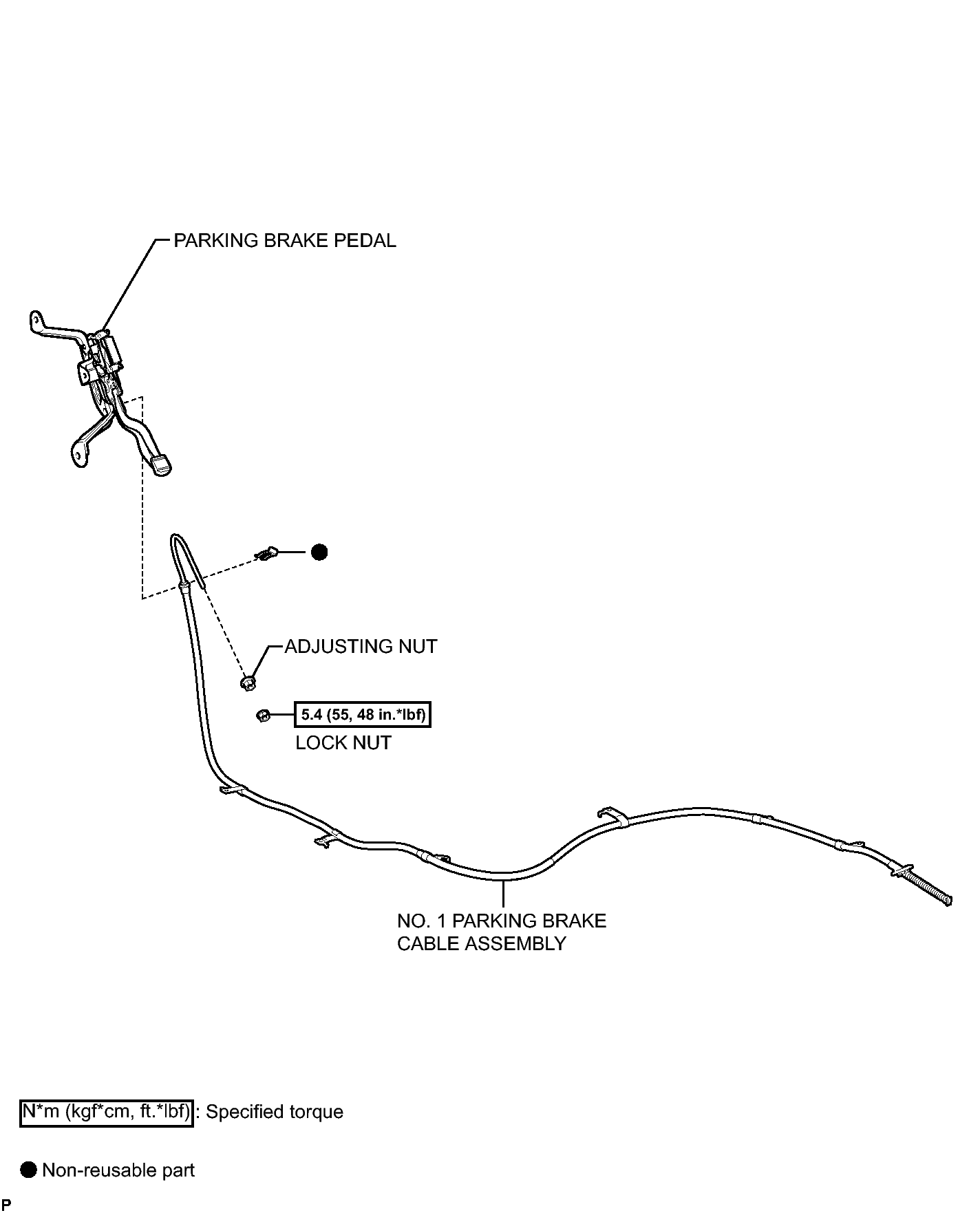

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (1 of 2)
GTY302801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

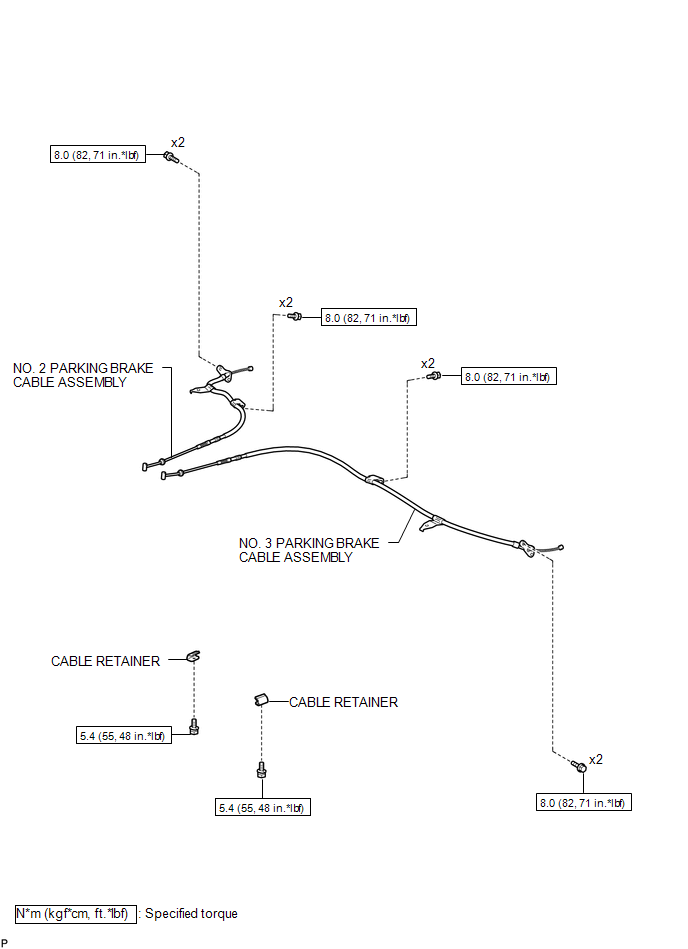

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (2 of 2)
GTY296440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
