Rear Brake: Components: Illustration

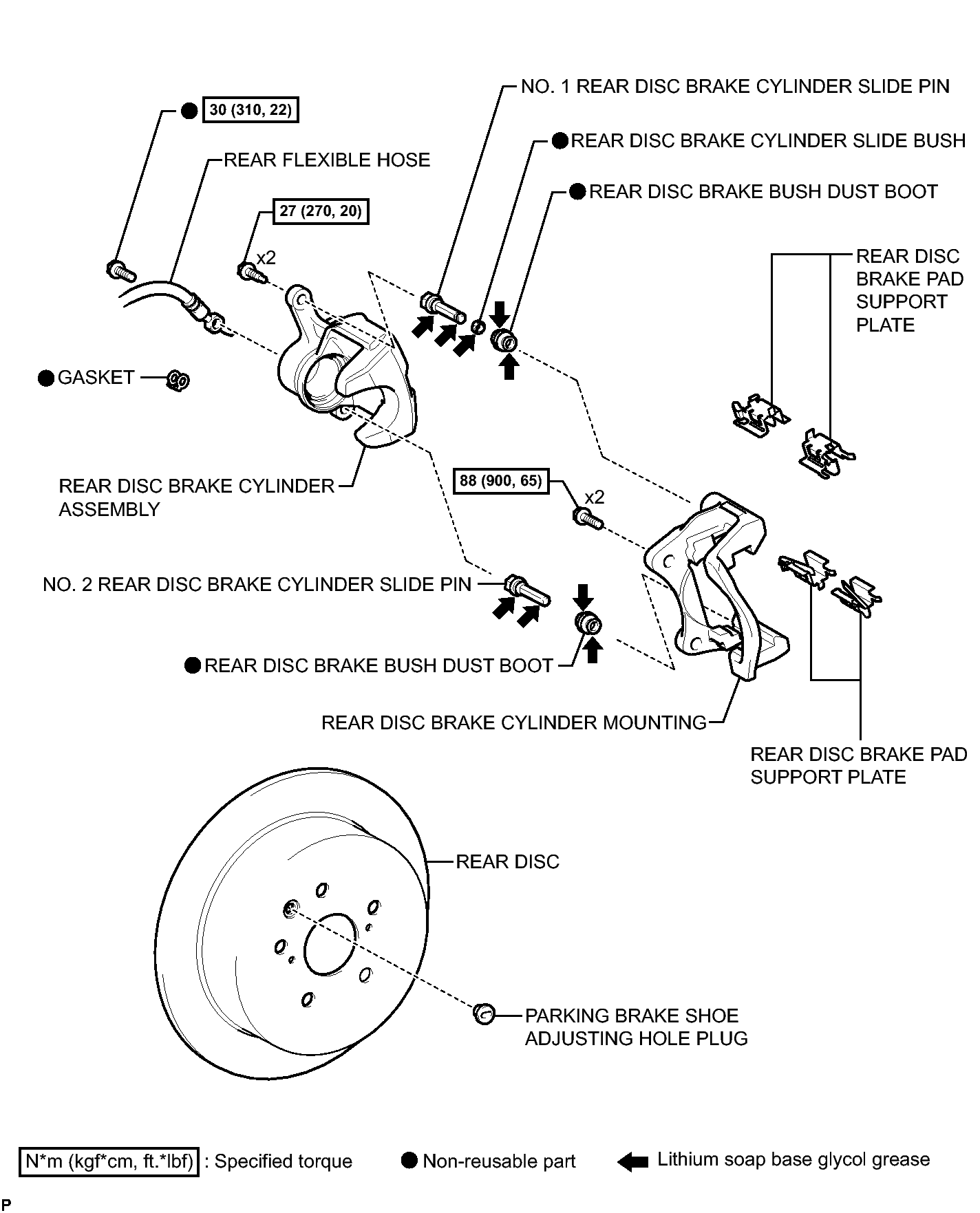

Fig 1: Exploded View Of Rear Brake Caliper With Torque Specifications (1 of 2)
GTY324057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

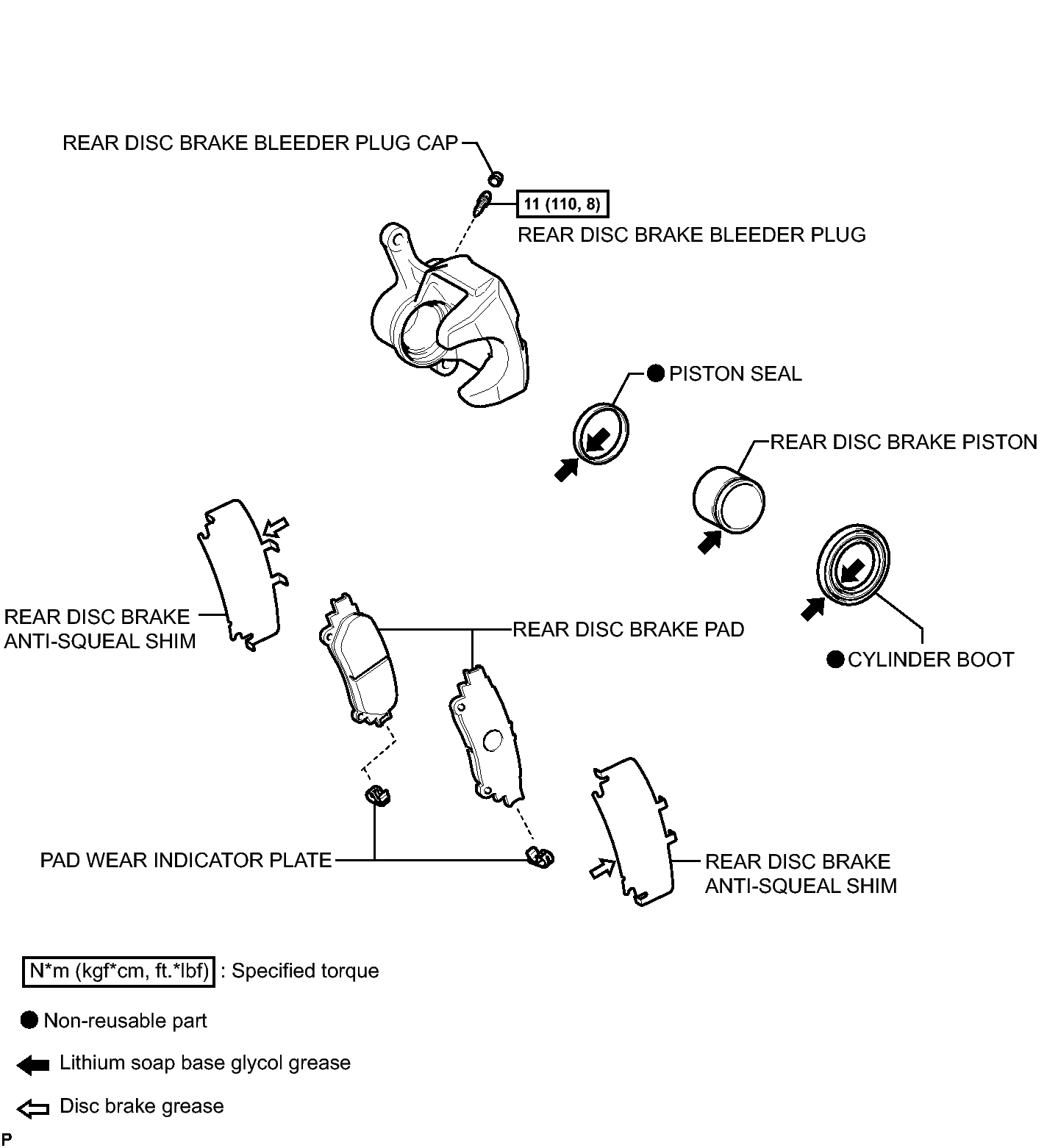

Fig 1: Exploded View Of Rear Brake Caliper With Torque Specifications (2 of 2)
GTY302550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
