Vacuum Switching Valve: Components: Illustration

Fig 1: Vacuum Switching Valve Replacement Components With Torque Specifications (1 of 2)
GTY304119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

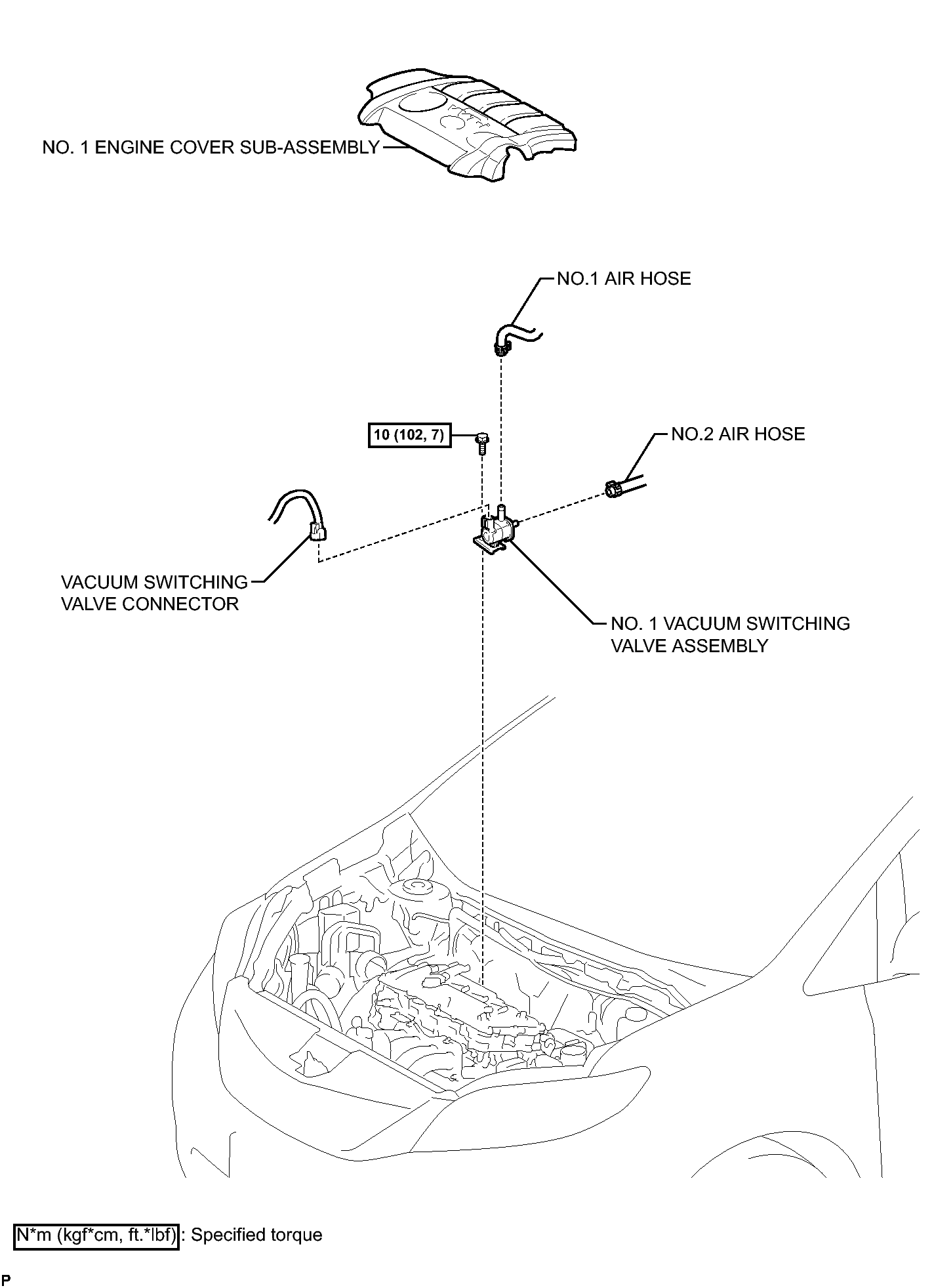

Fig 1: Vacuum Switching Valve Replacement Components With Torque Specifications (2 of 2)
GTY303669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
