Ejector Tube: Components: Illustration

Fig 1: Ejector Tube Replacement Components With Torque Specifications
GTY304119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

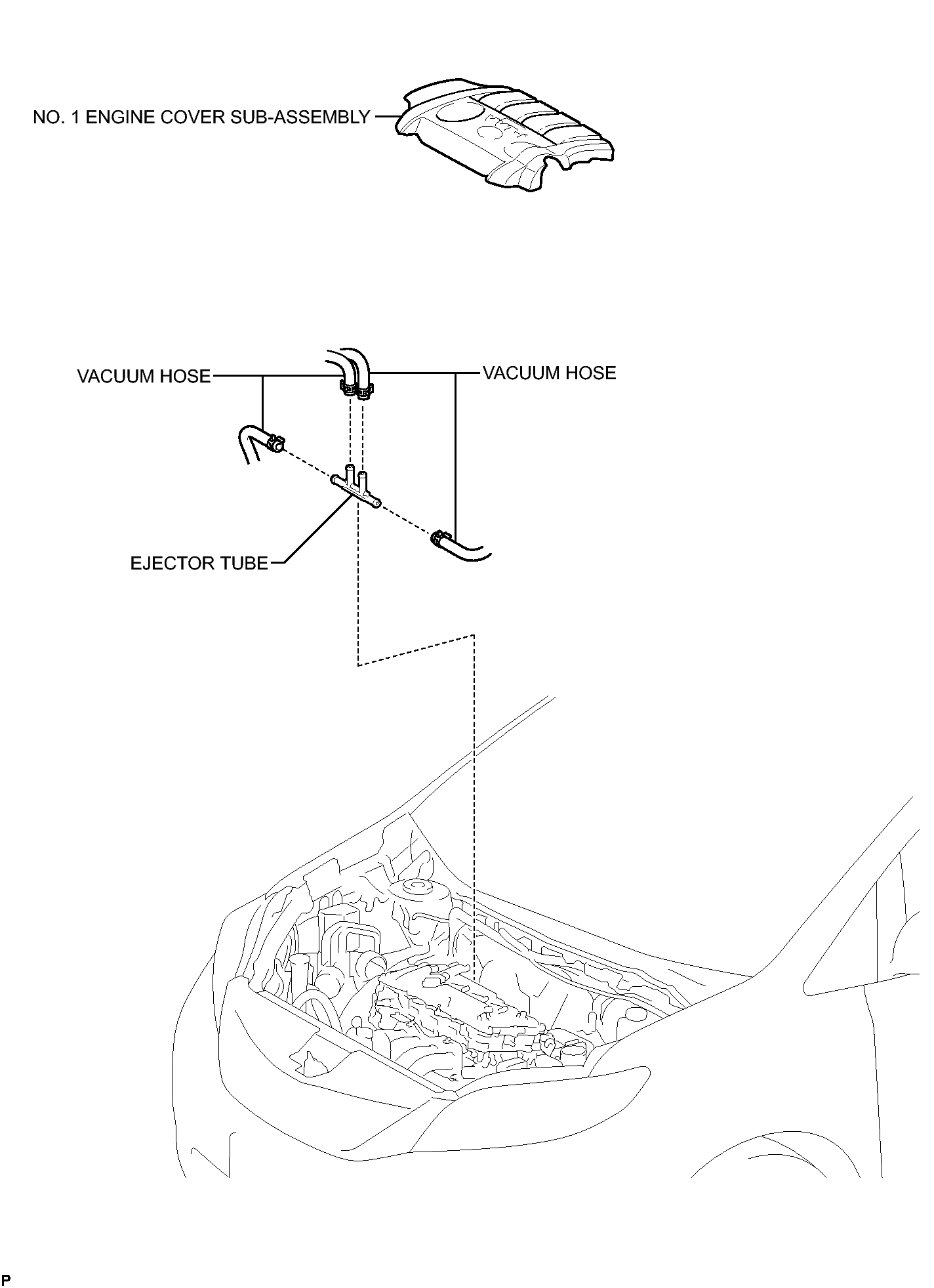

Fig 1: Ejector Tube Replacement Components
GTY296349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
