Brake Pedal: Components: Illustration

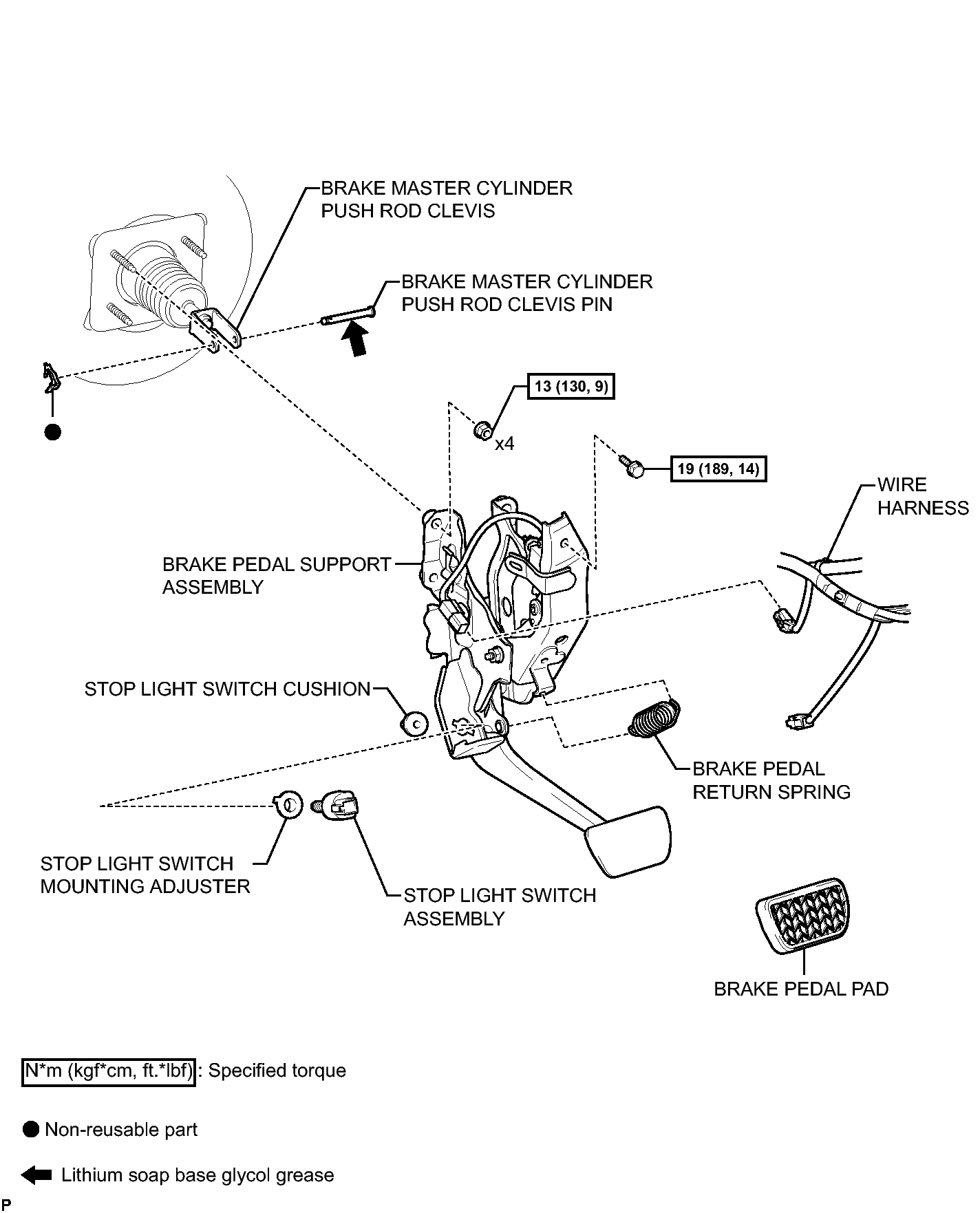

Fig 1: Exploded View Of Brake Pedal Replacement Components With Torque Specifications

GTY296126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
