Brake Master Cylinder: Components: Illustration

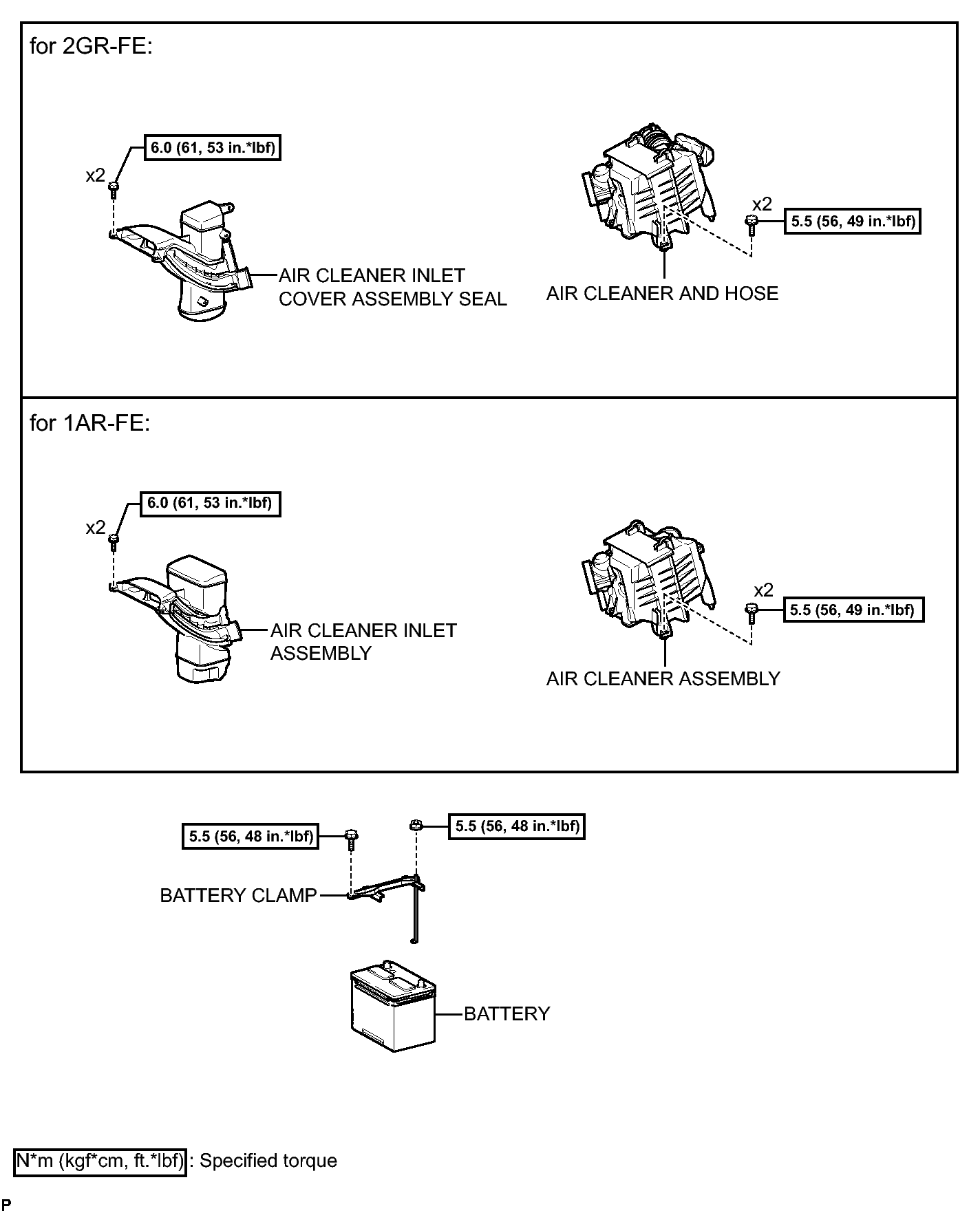

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 of 3)
GTY301097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

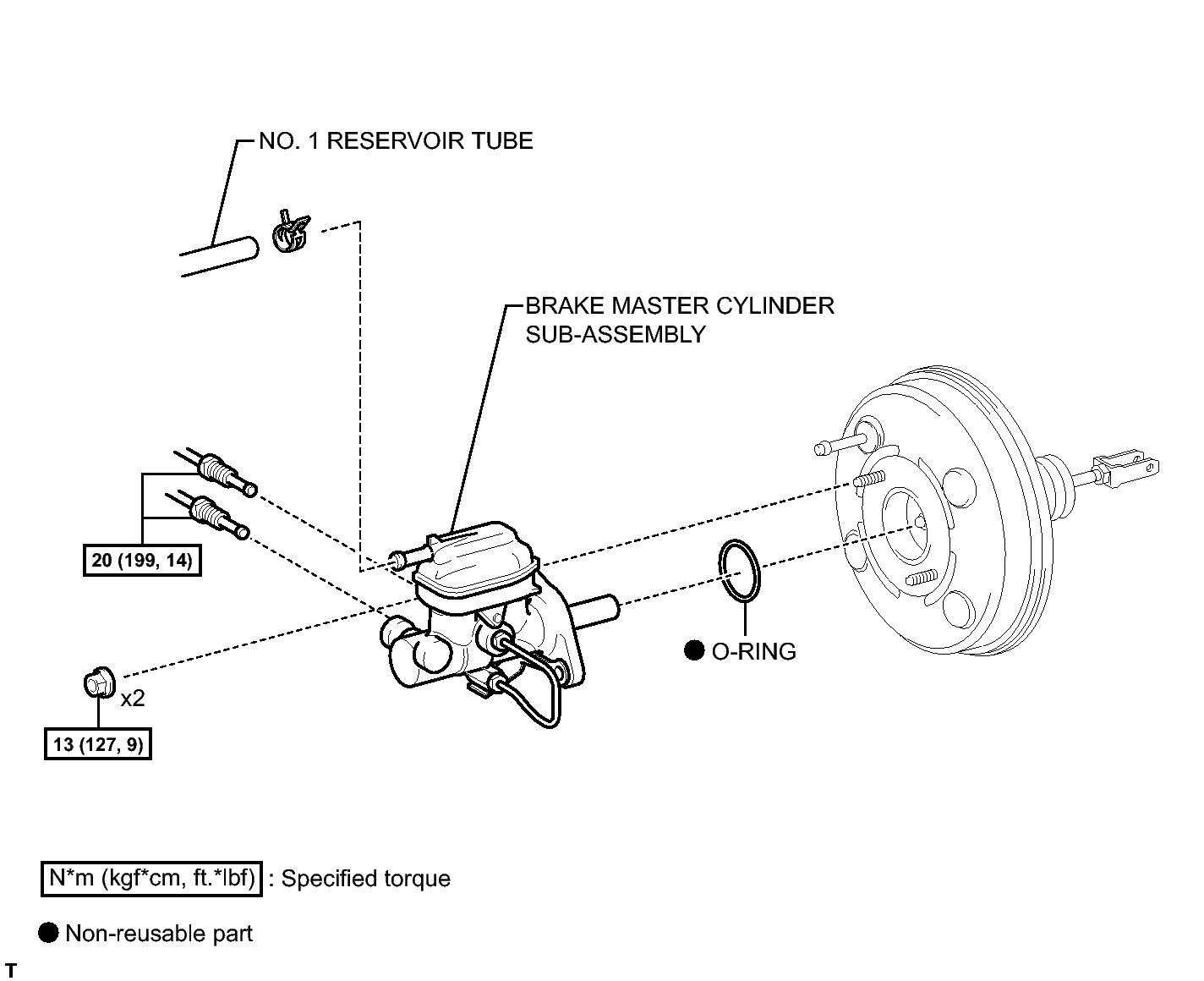

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (2 of 3)
GTY301465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

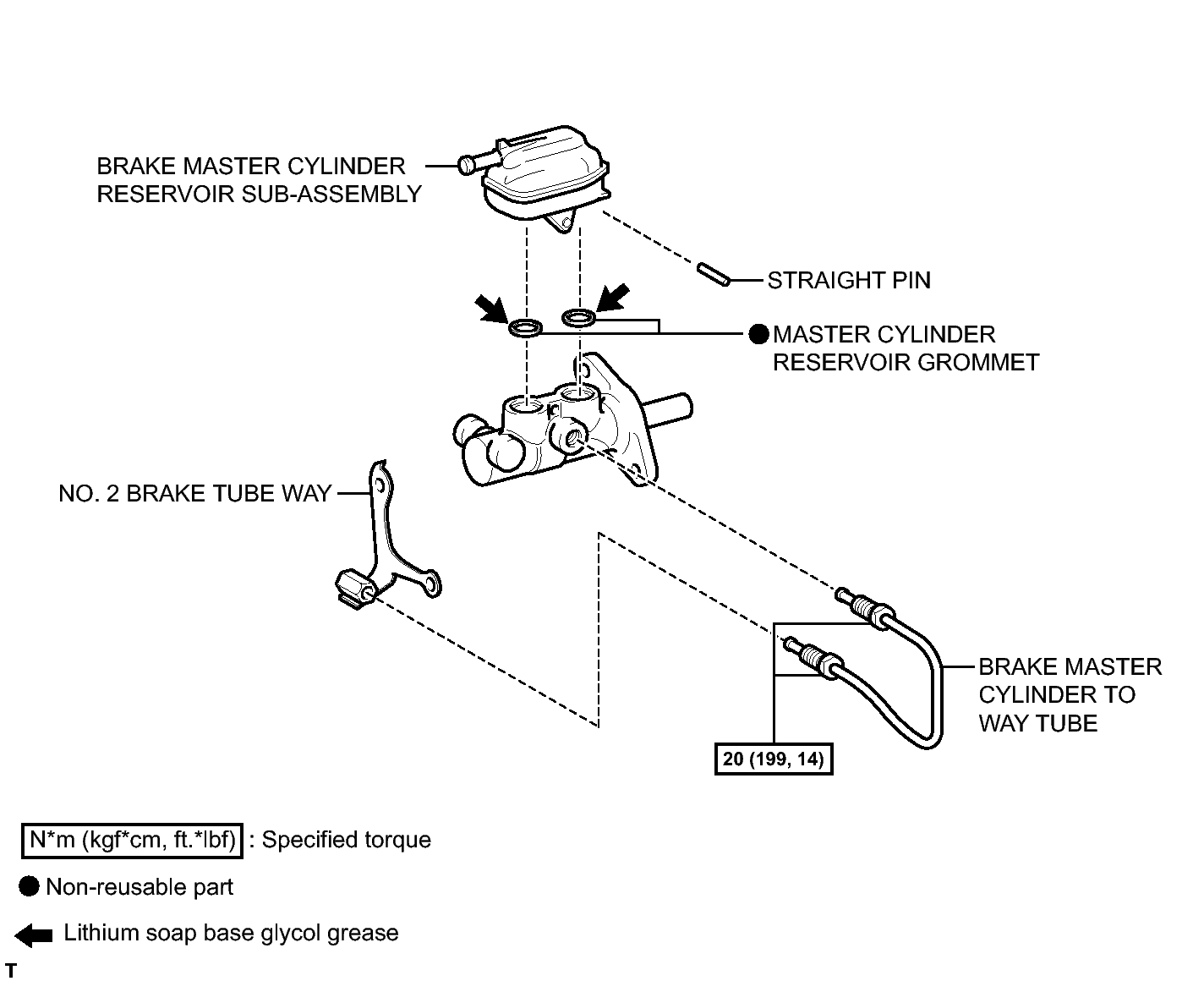

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (3 of 3)
GTY306800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
