Brake Booster: Components: Illustration

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 of 6)
GTY304119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

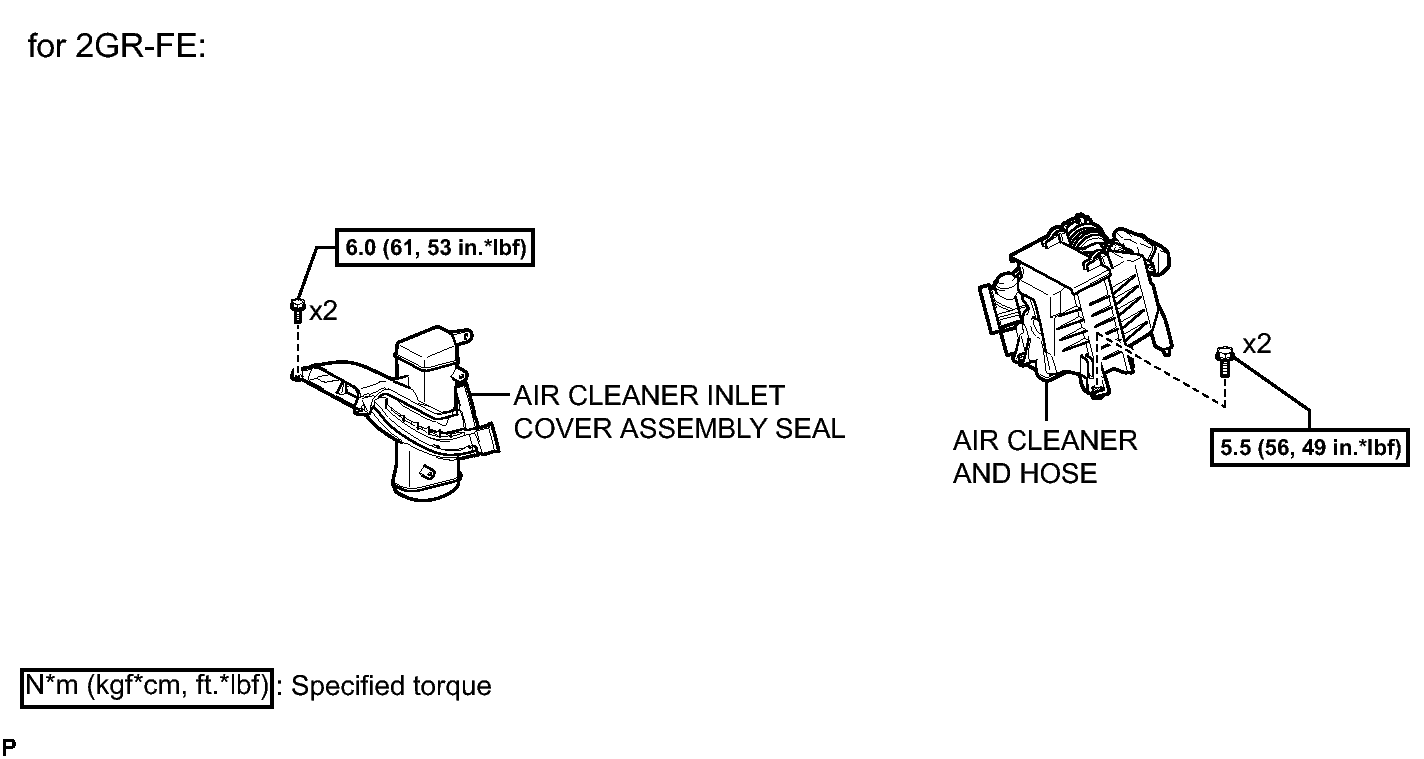

Fig 1: Brake Booster Replacement Components With Torque Specifications (2 of 6)
GTY299642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

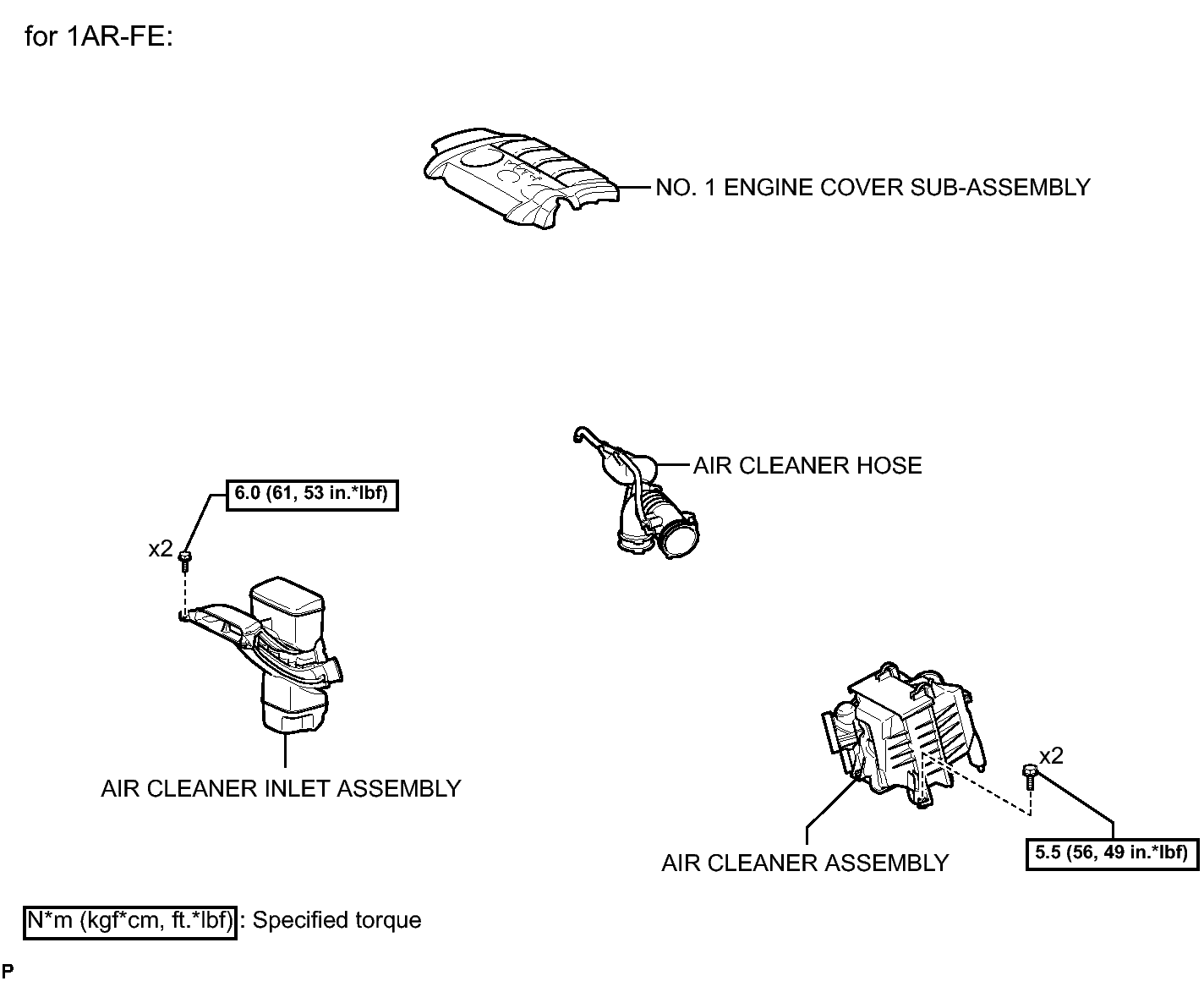

Fig 1: Brake Booster Replacement Components With Torque Specifications (3 of 6)
GTY298215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Brake Booster Replacement Components With Torque Specifications (4 of 6)
GTY301465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

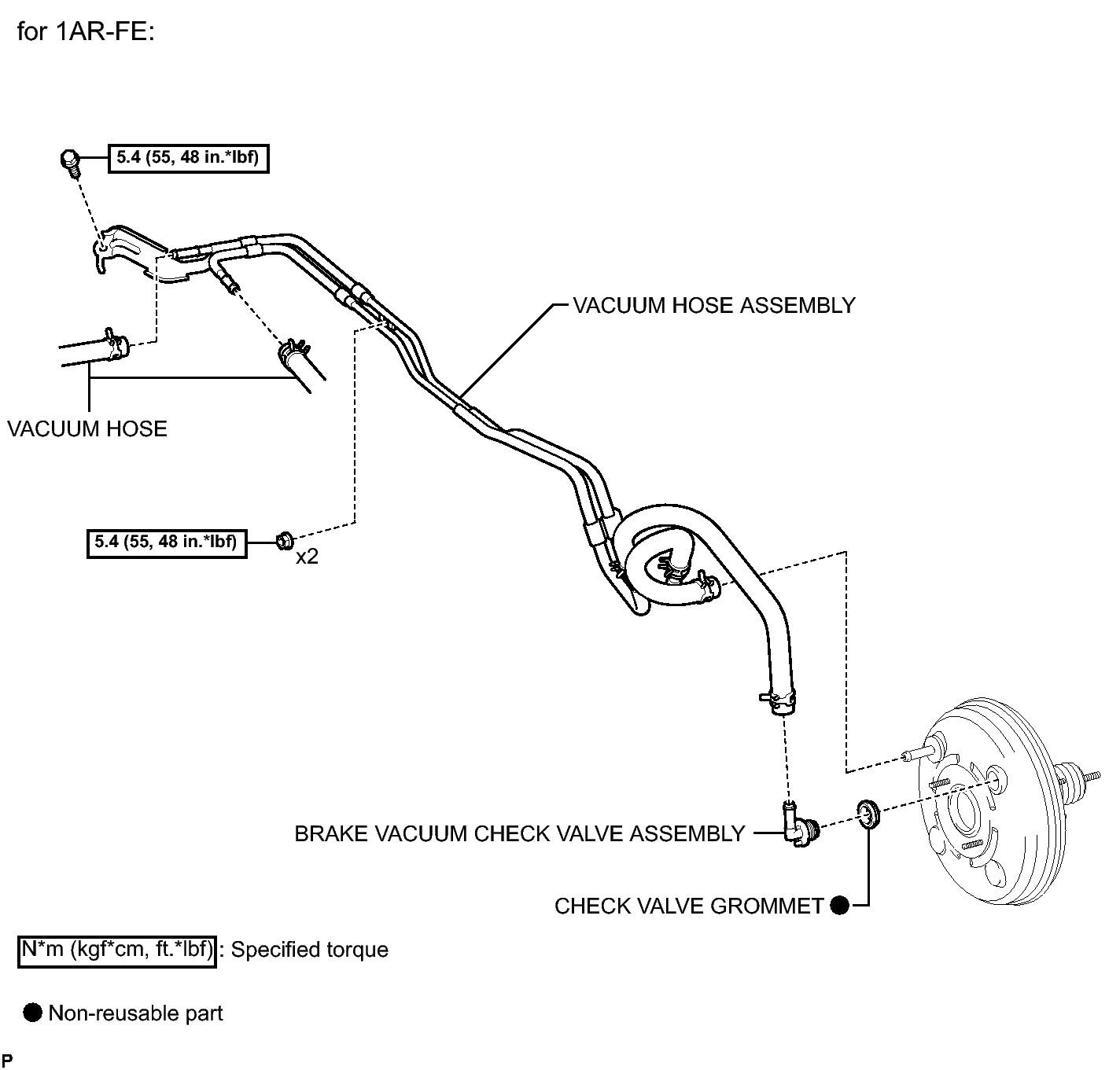

Fig 1: Brake Booster Replacement Components With Torque Specifications (5 of 6)
GTY300304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

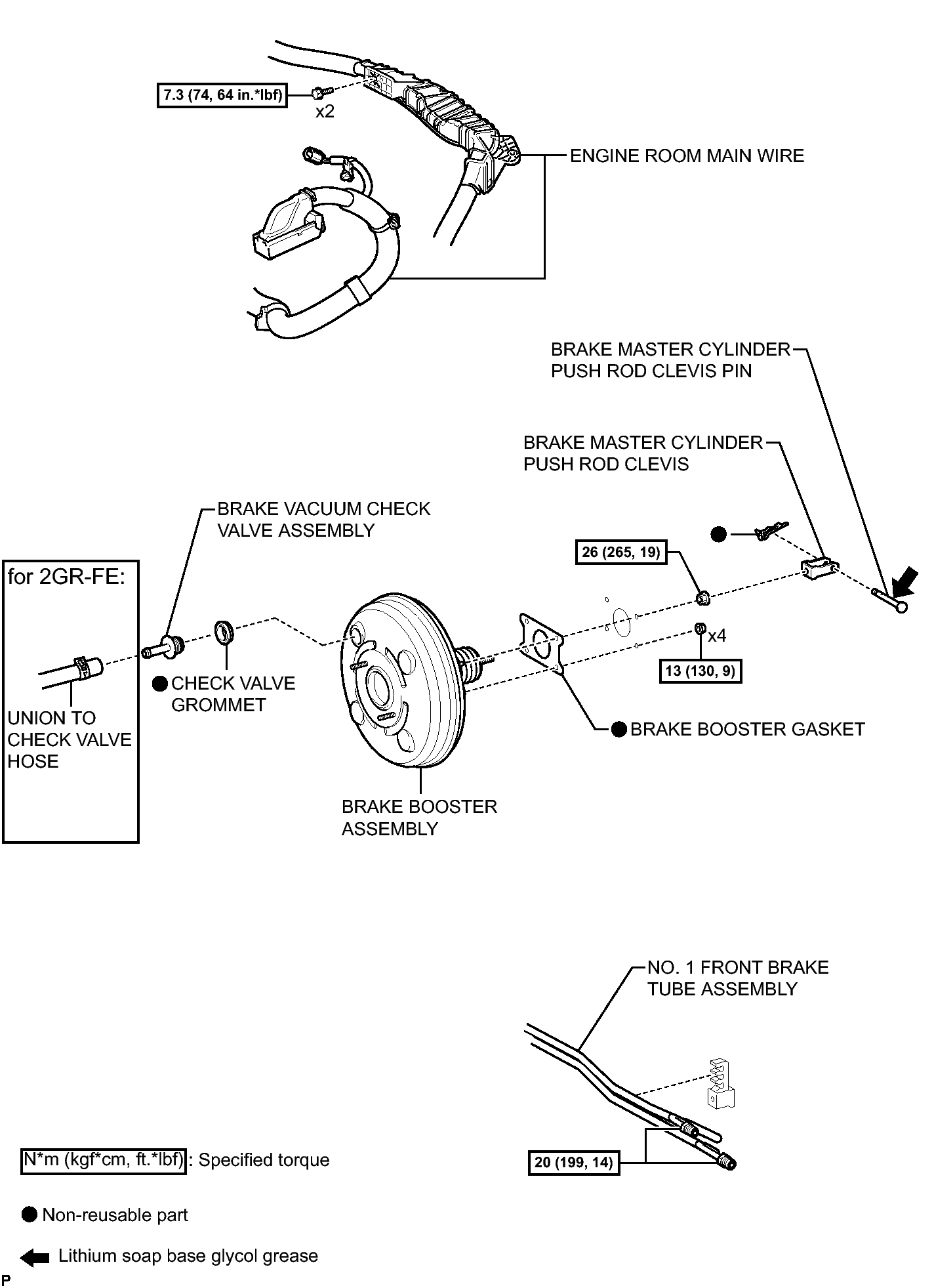

Fig 1: Brake Booster Replacement Components With Torque Specifications (6 of 6)
GTY303432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
