Front Brake Flexible Hose: Components: Illustration

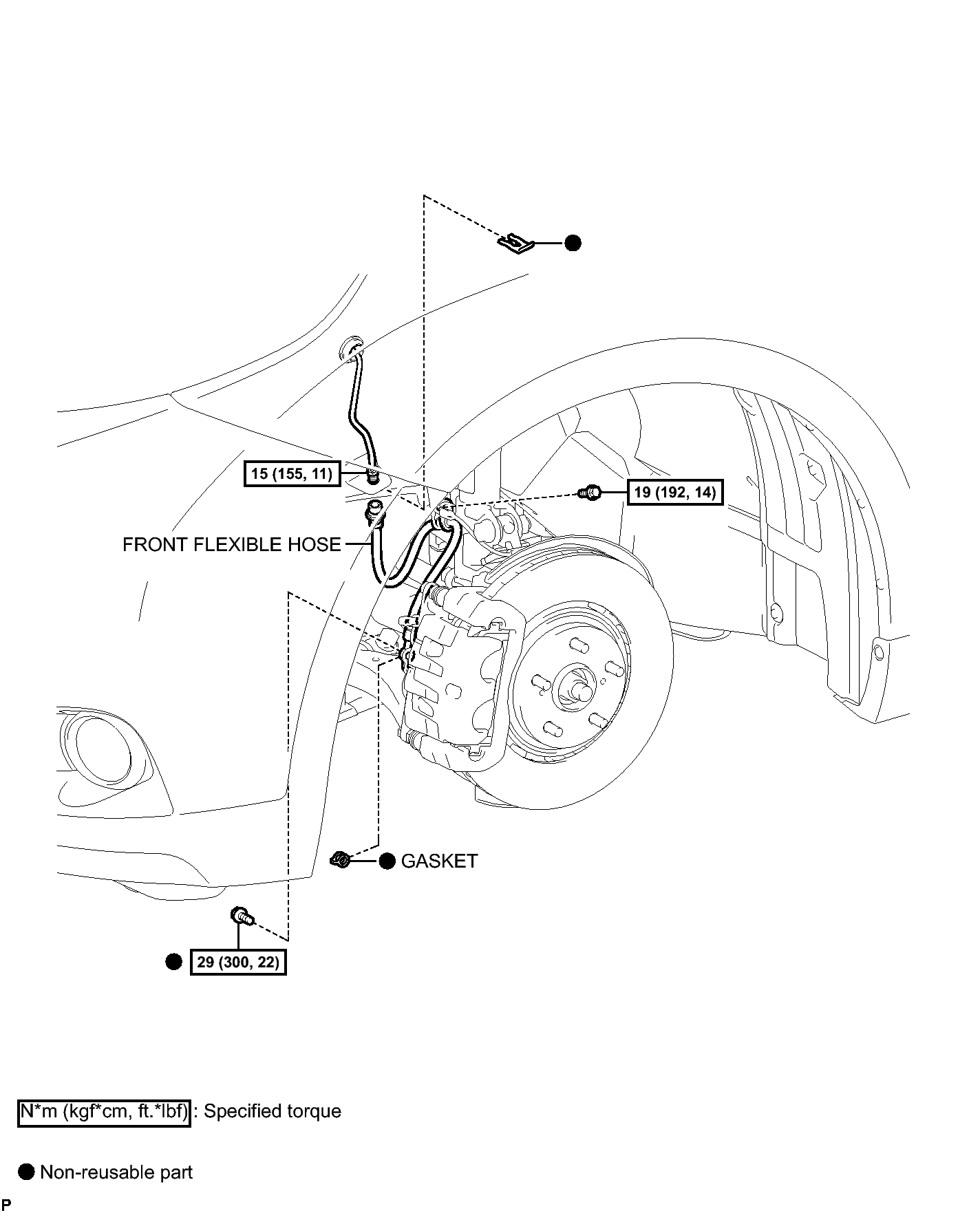

Fig 1: Front Brake Flexible Hose Replacement Components With Torque Specifications

GTY335634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
