Sliding Roof Housing: Removal: Removal

HINT:

• Use the same procedure for both the RH and LH sides.
• The procedure described below is for the LH side.

1. REMOVE ROOF HEADLINING ASSEMBLY

   Refer to REMOVAL

2. REMOVE TELEVISION DISPLAY BRACKET (w/ Rear Seat Entertainment System)
   Fig 1: Identifying Television Display Bracket Fasteners (w/ Rear Seat Entertainment System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the 2 bolts and 2 nuts and television display bracket.
3. REMOVE ROOF CONSOLE PLATE

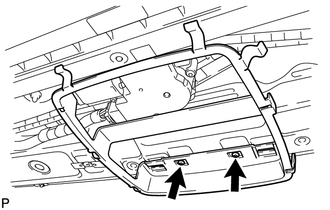

   Fig 2: Identifying Roof Console Plate & Fasteners

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using a T20 "TORX" socket wrench, remove the 2 screws and roof console plate.
4. REMOVE SLIDING ROOF FRONT GARNISH LH
   1. Pull the lower edge of the sliding roof front garnish LH toward the inside of the vehicle to separate it from the sliding roof housing sub-assembly.
      Fig 3: Removing Sliding Roof Front Garnish LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To avoid breaking the sliding roof front garnish LH, do not pull on it too strongly.

   2. Compress the forward edge of the sliding roof front garnish LH, disengage the claw, and slide the sliding roof front garnish LH towards the rear of the vehicle.

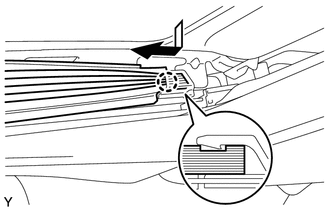

      Fig 4: Removing Sliding Roof Front Garnish LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Disengage the sliding roof front garnish LH from the sliding roof glass sub-assembly, and remove the sliding roof front garnish LH.
      Fig 5: Removing Sliding Roof Front Garnish LF

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE SLIDING ROOF FRONT GARNISH RH

   HINT:

   Use the same procedure as for the LH side.

6. REMOVE SLIDING ROOF GLASS SUB-ASSEMBLY
   Fig 6: Identifying Sliding Roof Glass Sub-Assembly Fasteners

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using a T25 "TORX" socket wrench, remove the 6 screws and sliding roof glass sub-assembly.
      NOTE:

      To prevent the sliding roof glass and sliding roof drive gear from being displaced, fully close the sliding roof glass (sliding roof drive cable), and then remove the sliding roof glass.

7. REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY

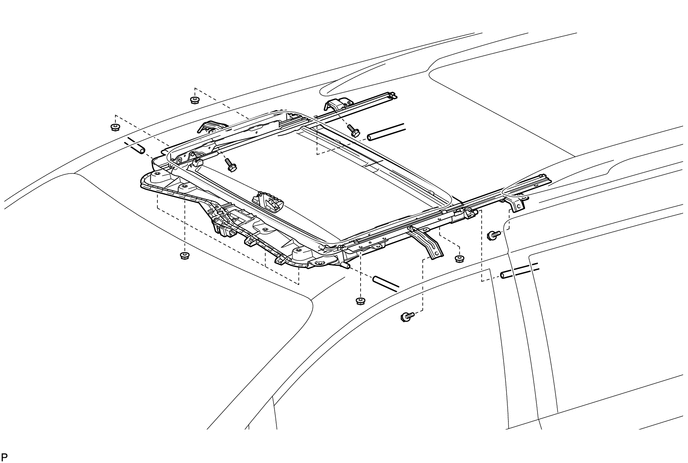

   Fig 7: Identifying Sliding Roof Housing Sub-Assembly, Drain Hoses & Fasteners

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the 4 sliding roof drain hoses.
   2. Remove the 4 bolts, 8 nuts and sliding roof housing sub-assembly.
