Sliding Roof Housing: Components: Illustration

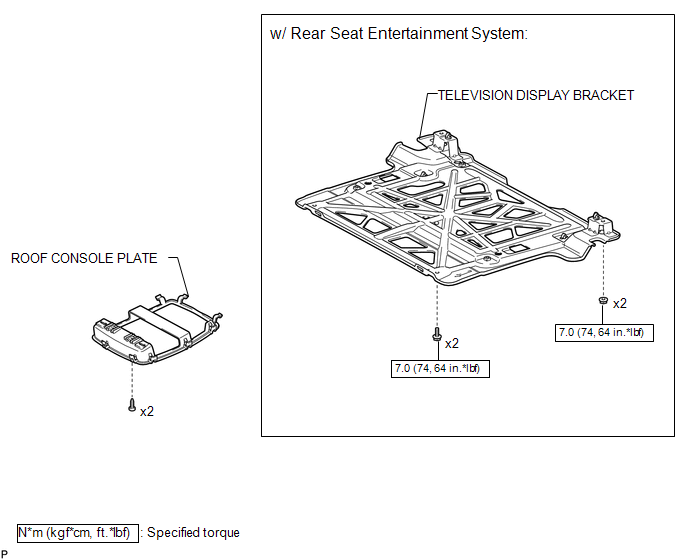

Fig 1: Sliding Roof Housing Replacement Components With Torque Specifications (1 of 3)
GTY296561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

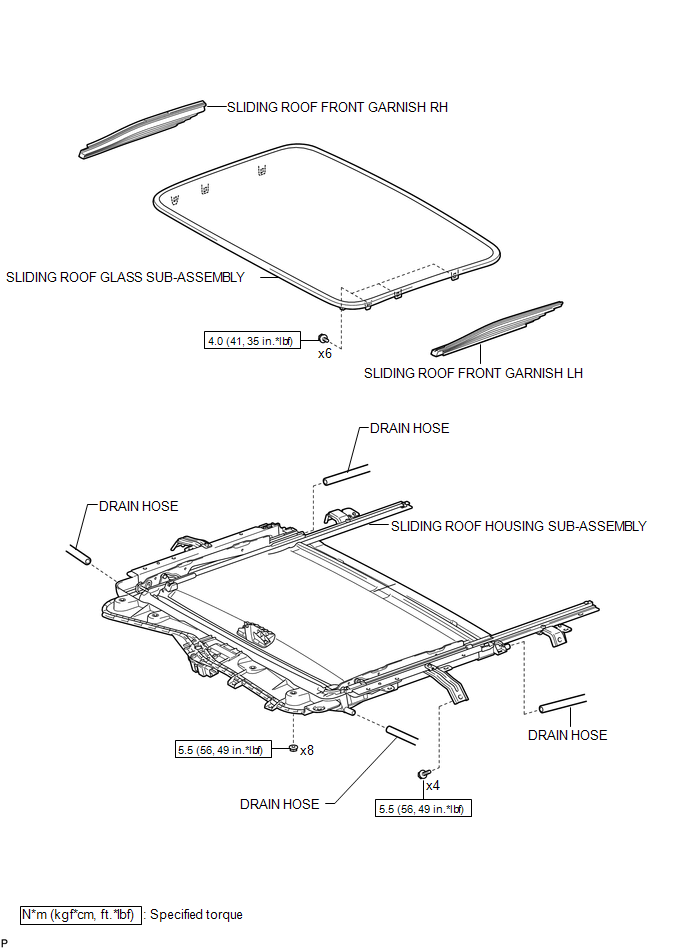

Fig 1: Sliding Roof Housing Replacement Components With Torque Specifications (2 of 3)
GTY335856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

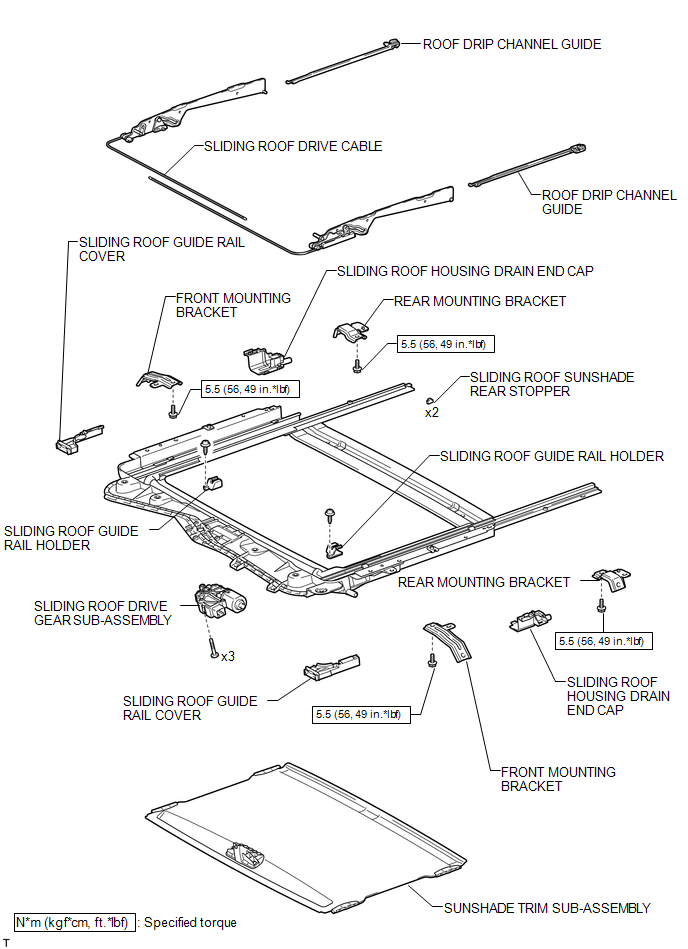

Fig 1: Sliding Roof Housing Replacement Components With Torque Specifications (3 of 3)
GTY337685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
