Rear Slide Roof Housing: Components: Illustration

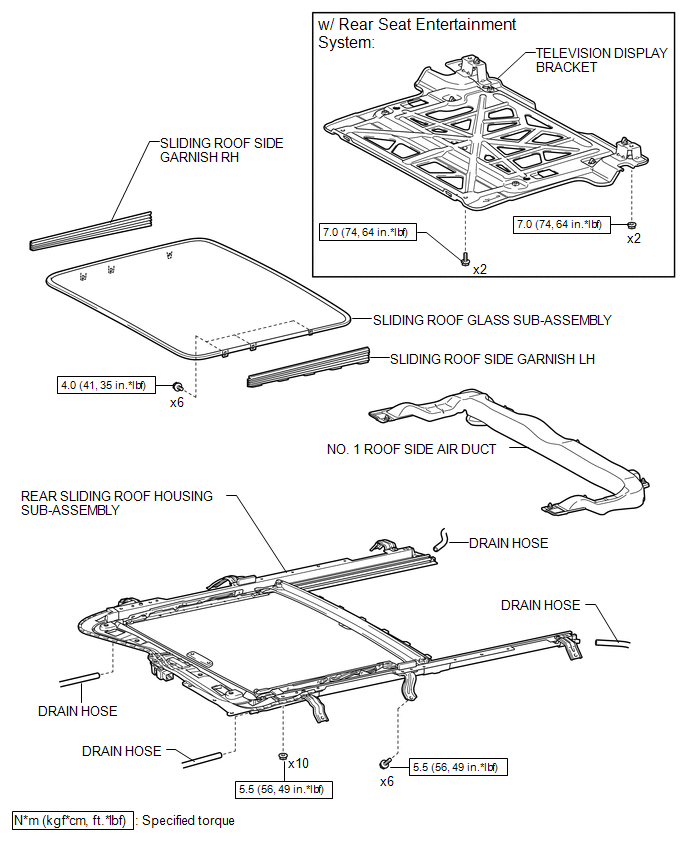

Fig 1: Rear Slide Roof Housing Replacement Components With Torque Specifications (1 Of 2)
GTY340122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

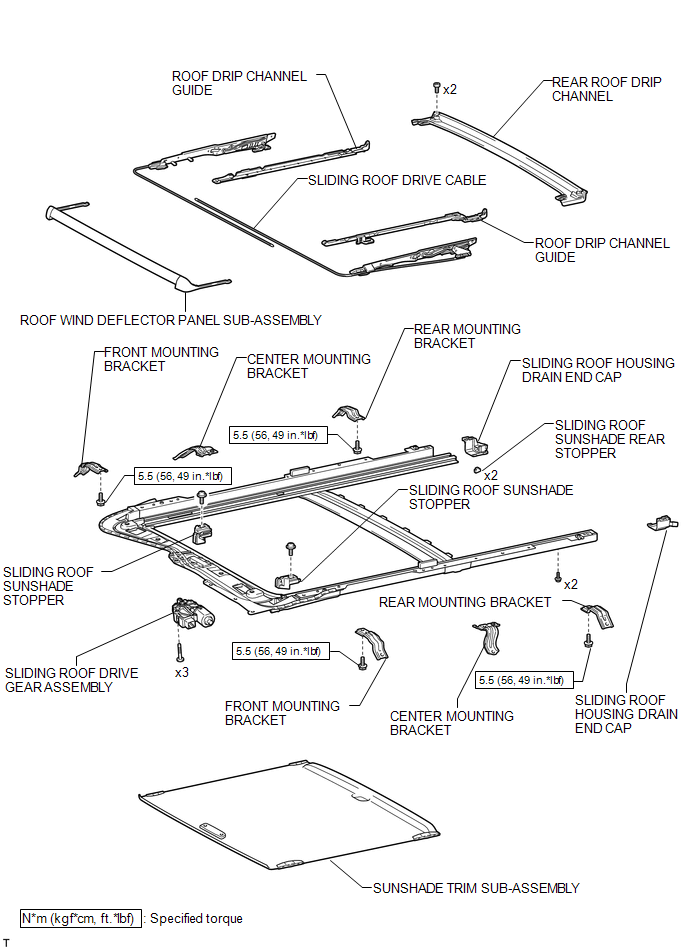

Fig 1: Rear Slide Roof Housing Replacement Components With Torque Specifications (2 Of 2)
GTY338649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
