Parts Location: Illustration

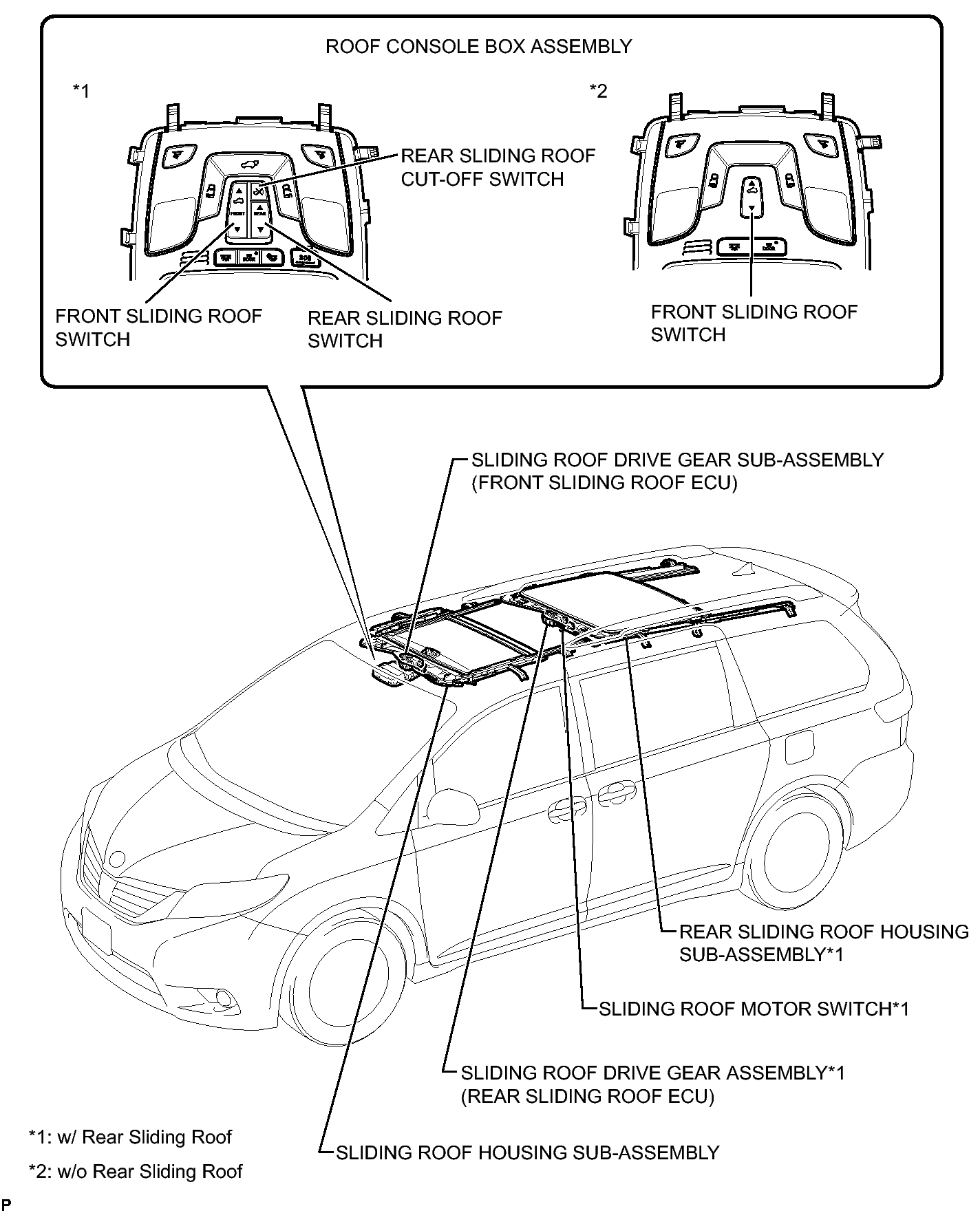

Fig 1: Sliding Roof System Components Location (1 of 2)
GTY295722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

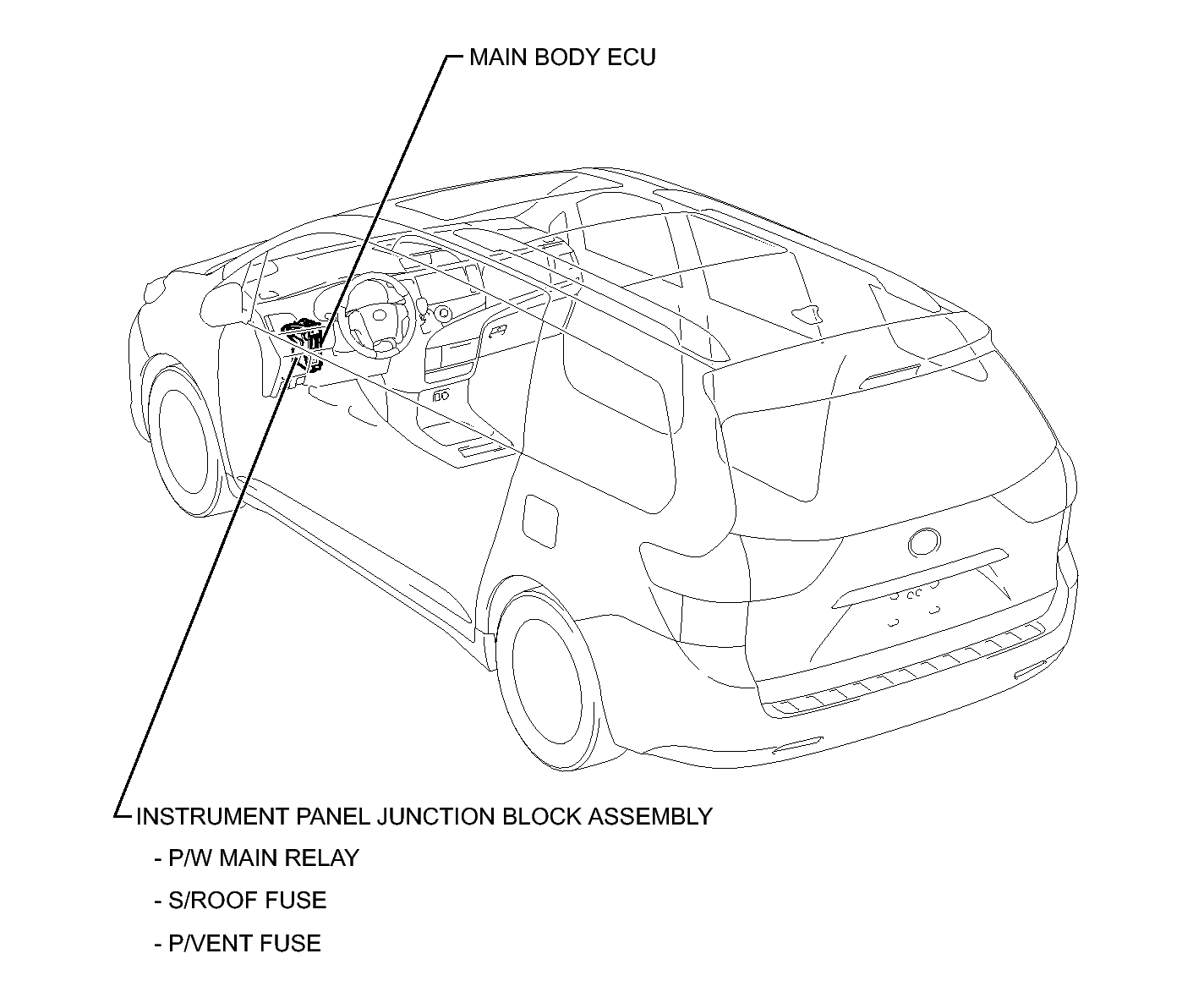

Fig 1: Sliding Roof System Components Location (2 of 2)
GTY297323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
