REAR NO. 1 SEAT ASSEMBLY (w/ Center Seat): Components: Illustration

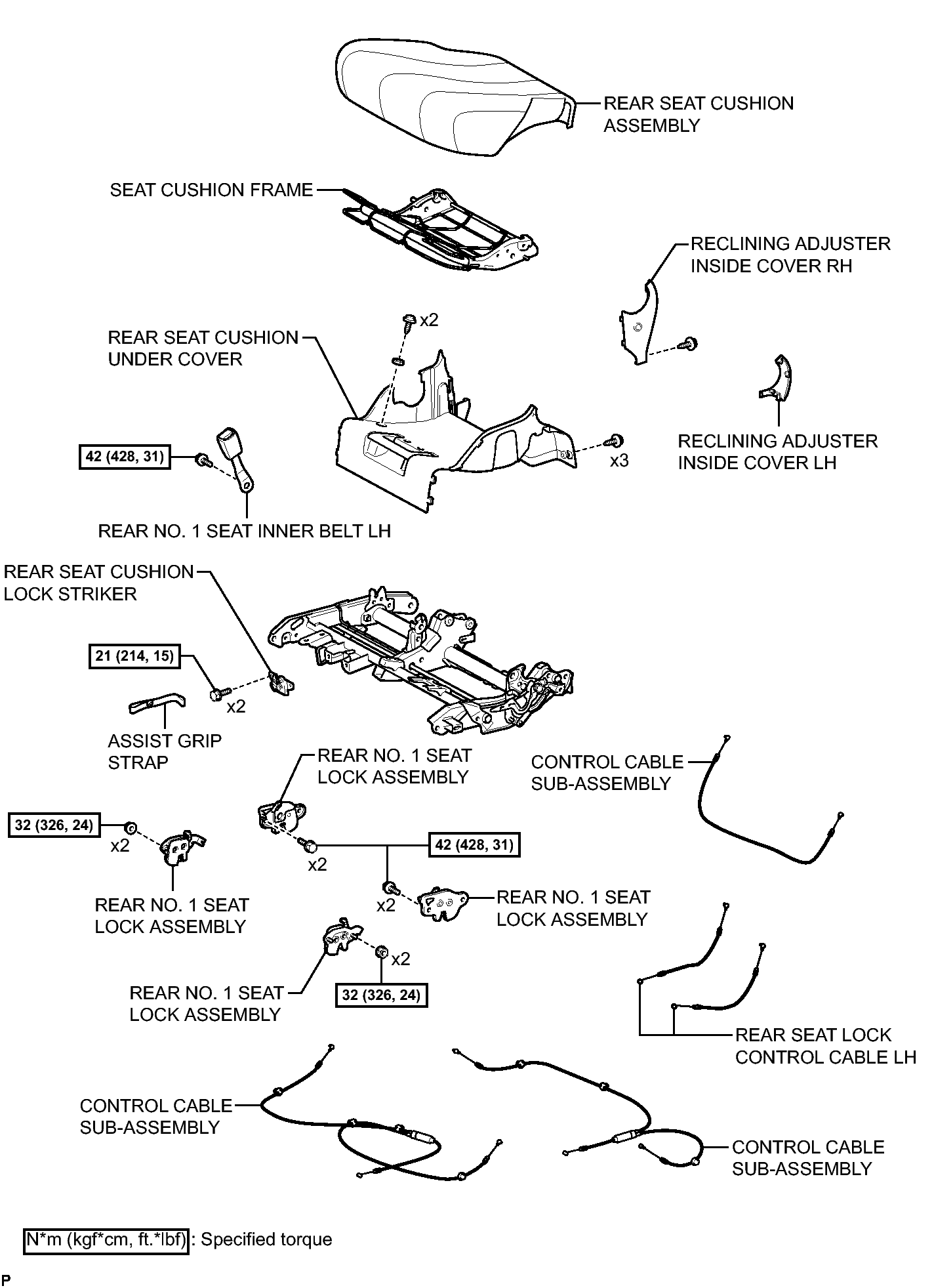

Fig 1: Rear No. 1 Seat Assembly (w/ Center Seat) Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

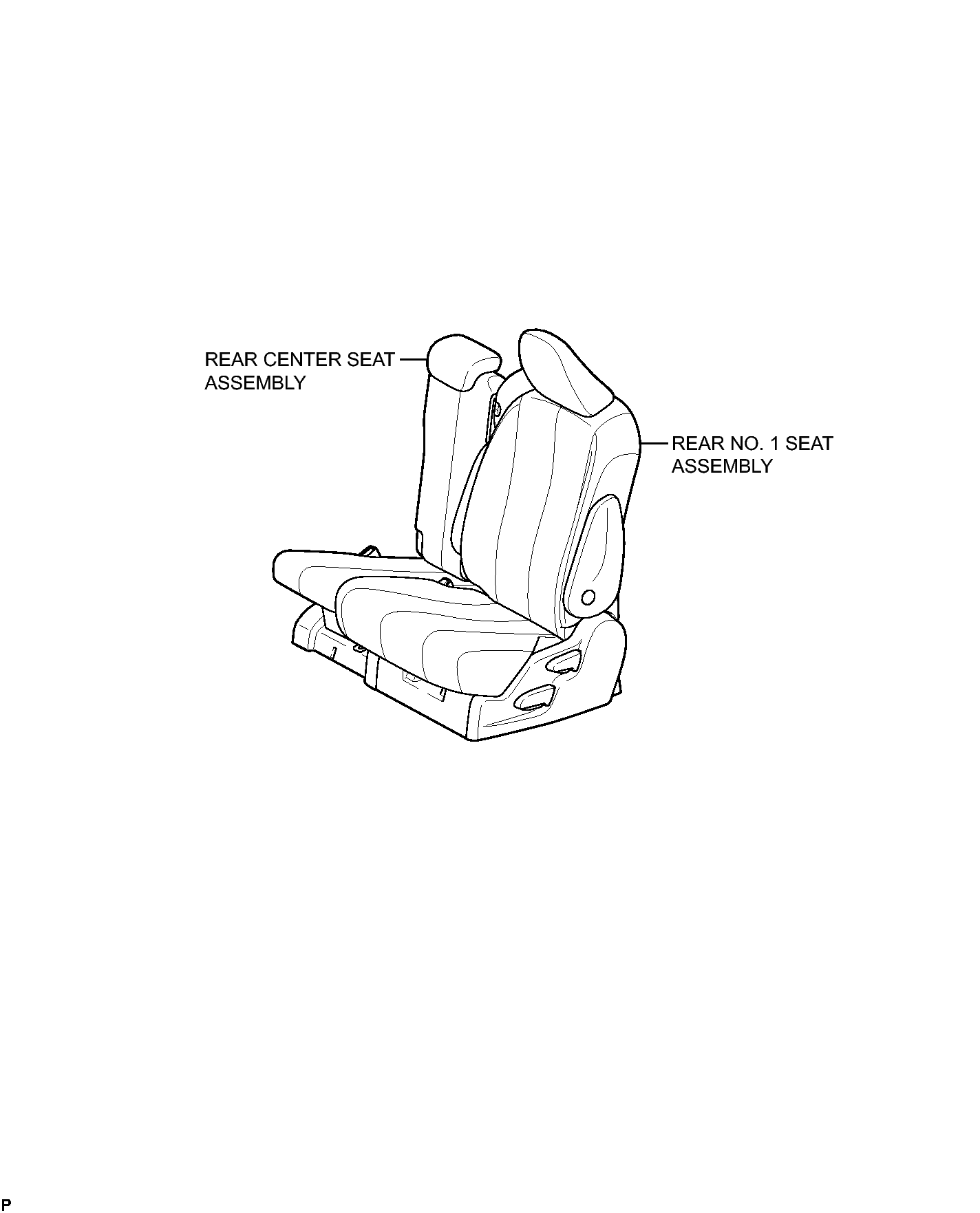

Fig 1: Rear No. 1 Seat Assembly (w/ Center Seat) Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

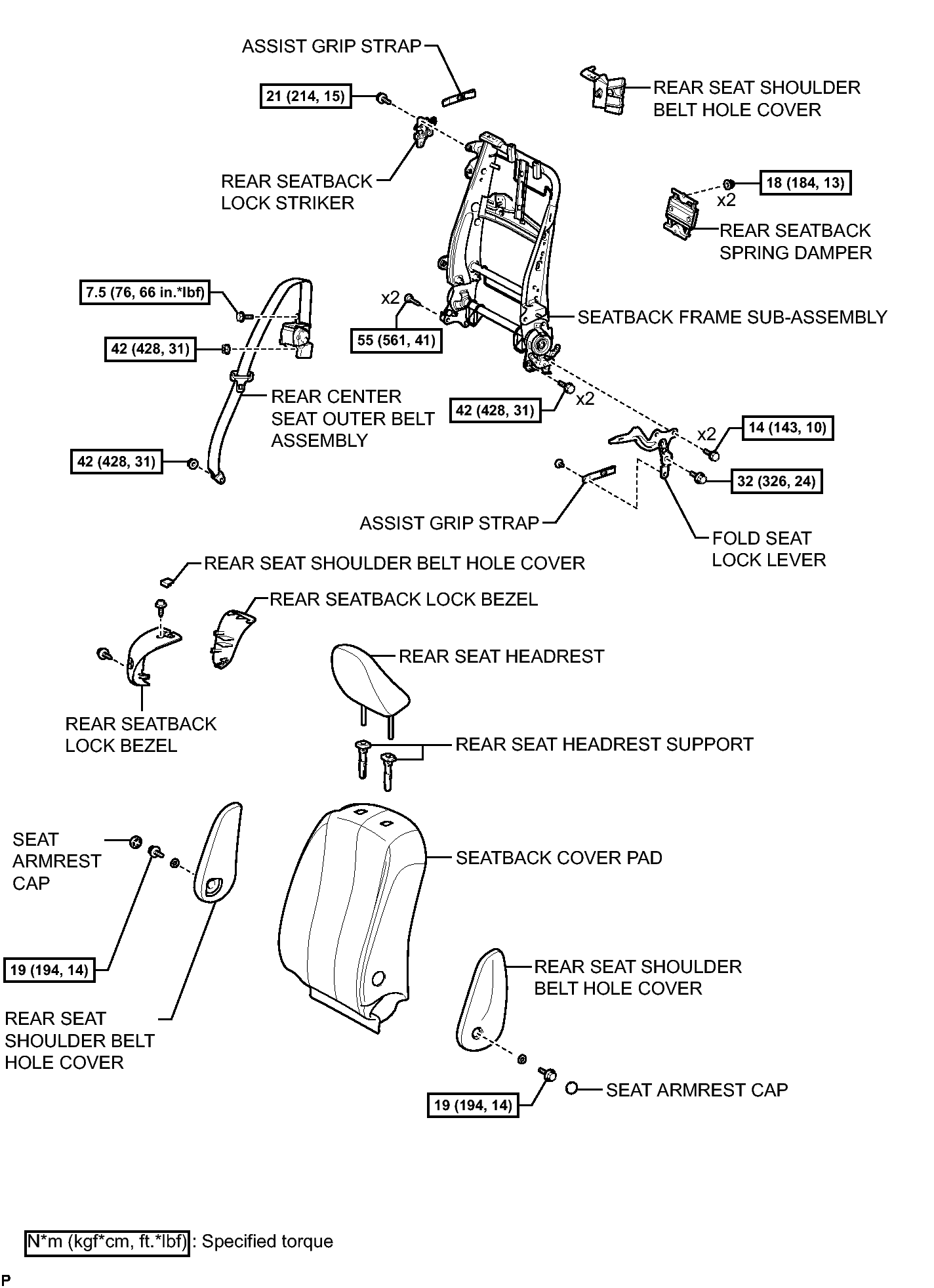

Fig 1: Rear No. 1 Seat Assembly (w/ Center Seat) Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

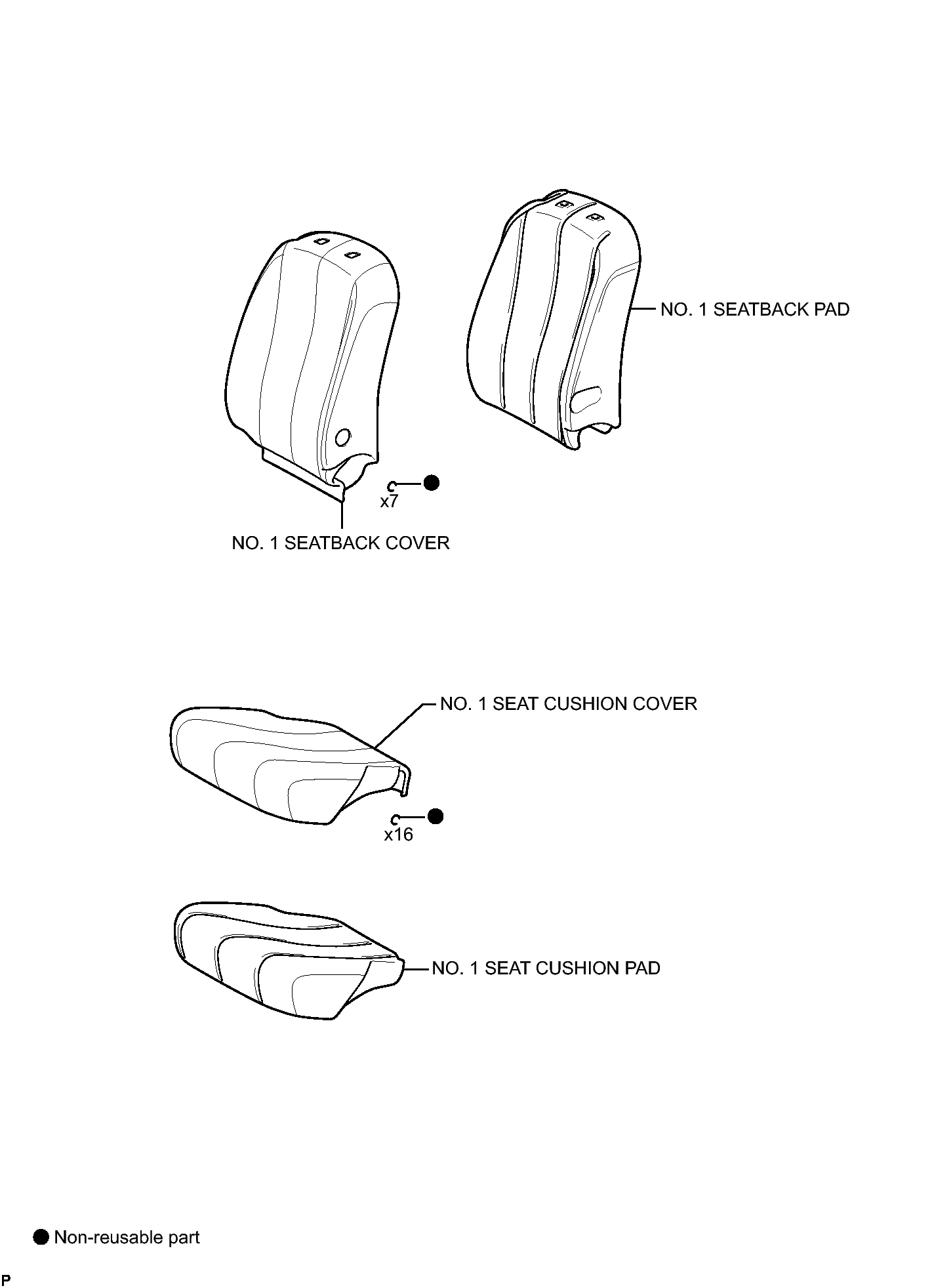

Fig 1: Rear No. 1 Seat Assembly (w/ Center Seat) Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

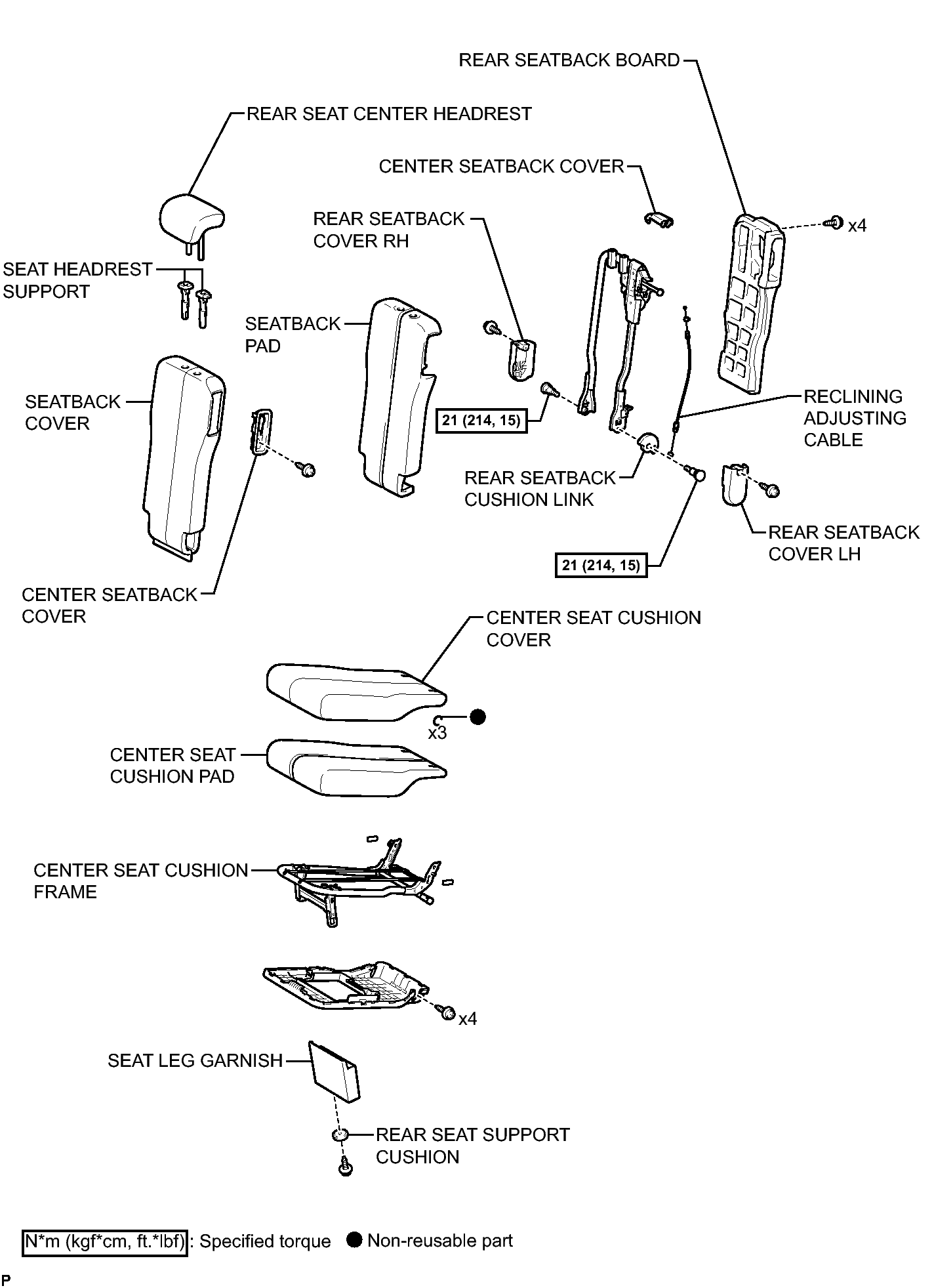

Fig 1: Rear No. 1 Seat Assembly (w/ Center Seat) Replacement Components (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

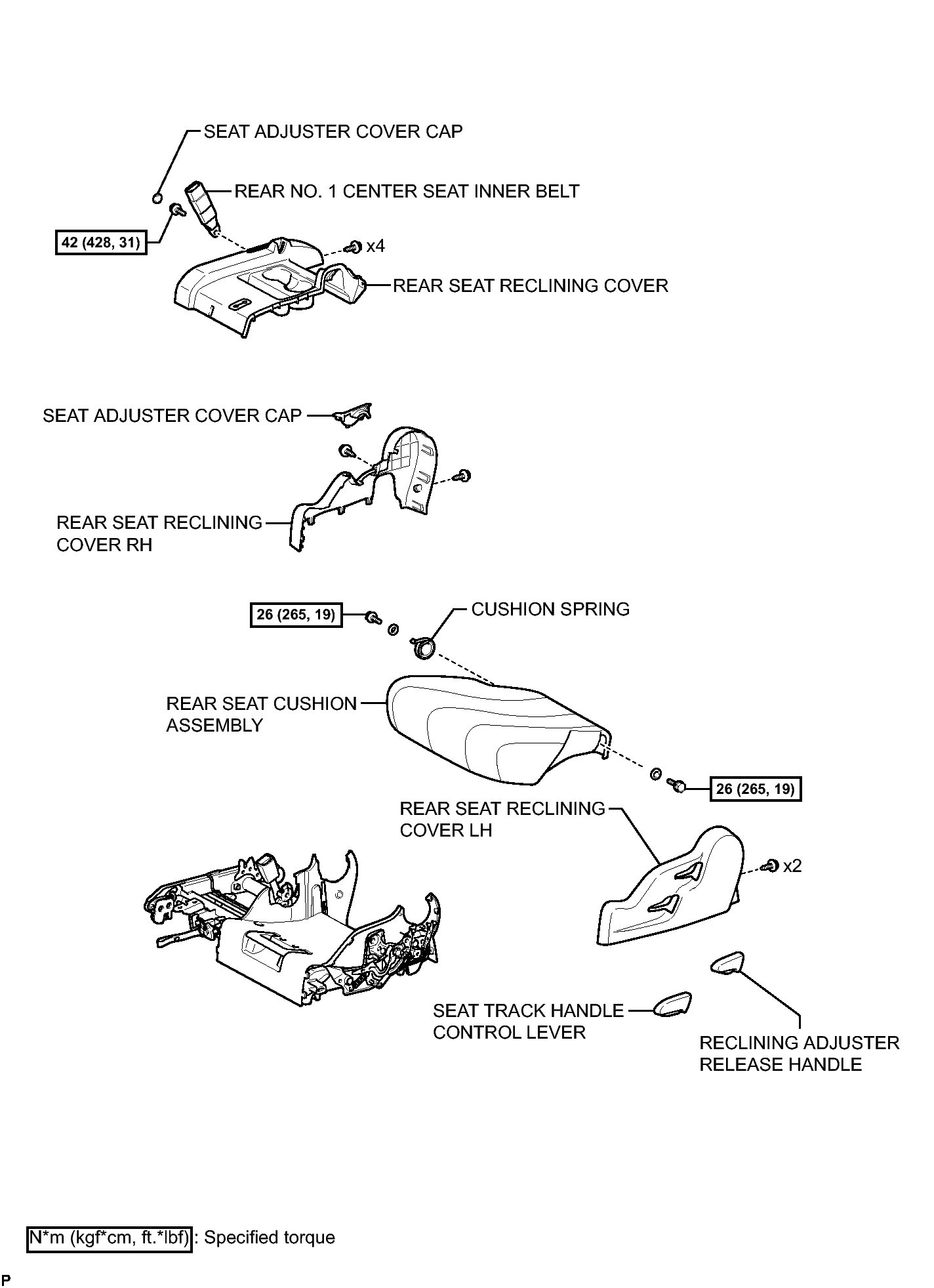

Fig 1: Rear No. 1 Seat Assembly (w/ Center Seat) Replacement Components With Torque Specifications (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
