REAR NO. 1 SEAT ASSEMBLY (for Ottoman): Removal: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the RH side.

1. REMOVE REAR NO. 1 SEAT ASSEMBLY RH
   1. Pull the handle.

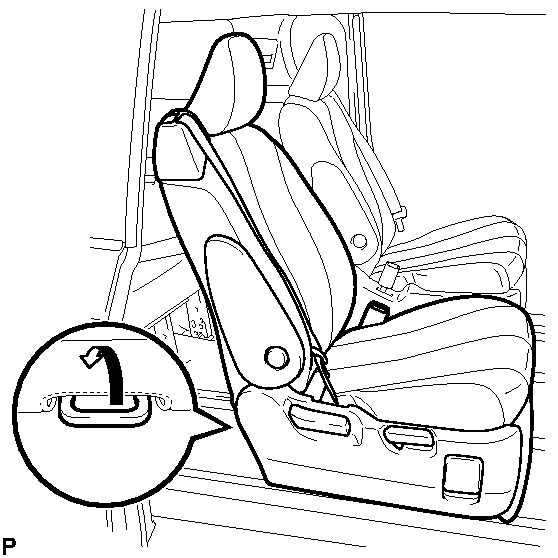

      Fig 1: Pulling RH Rear No. 1 Seat Assembly Handle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Lift up the seat from handle in rear.
   3. Remove the seat assembly.
      NOTE:

      Be careful not to damage the vehicle body.
