REAR NO. 1 SEAT ASSEMBLY (for Ottoman): Components: Illustration

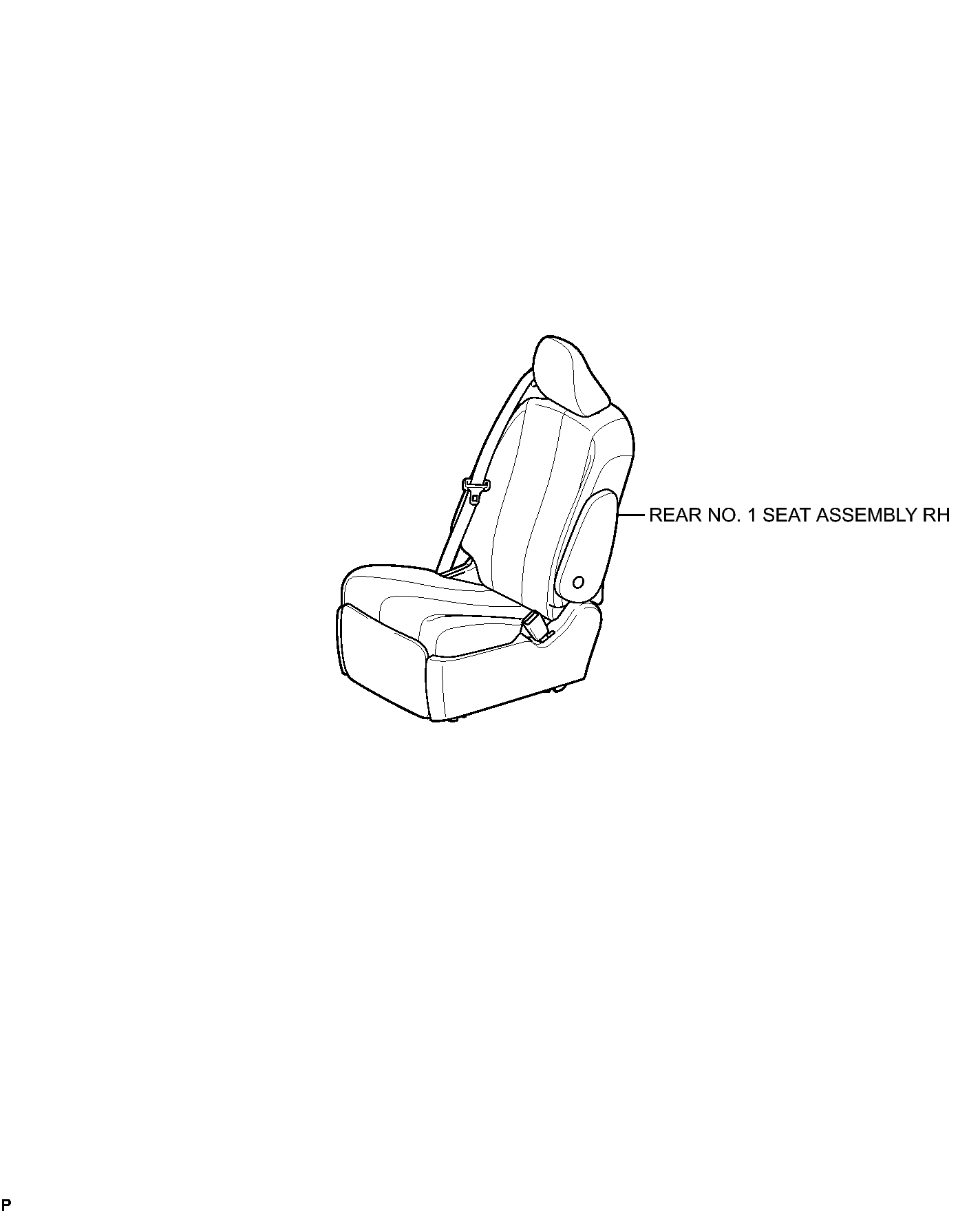

Fig 1: Rear No. 1 Seat Assembly (Ottoman) Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

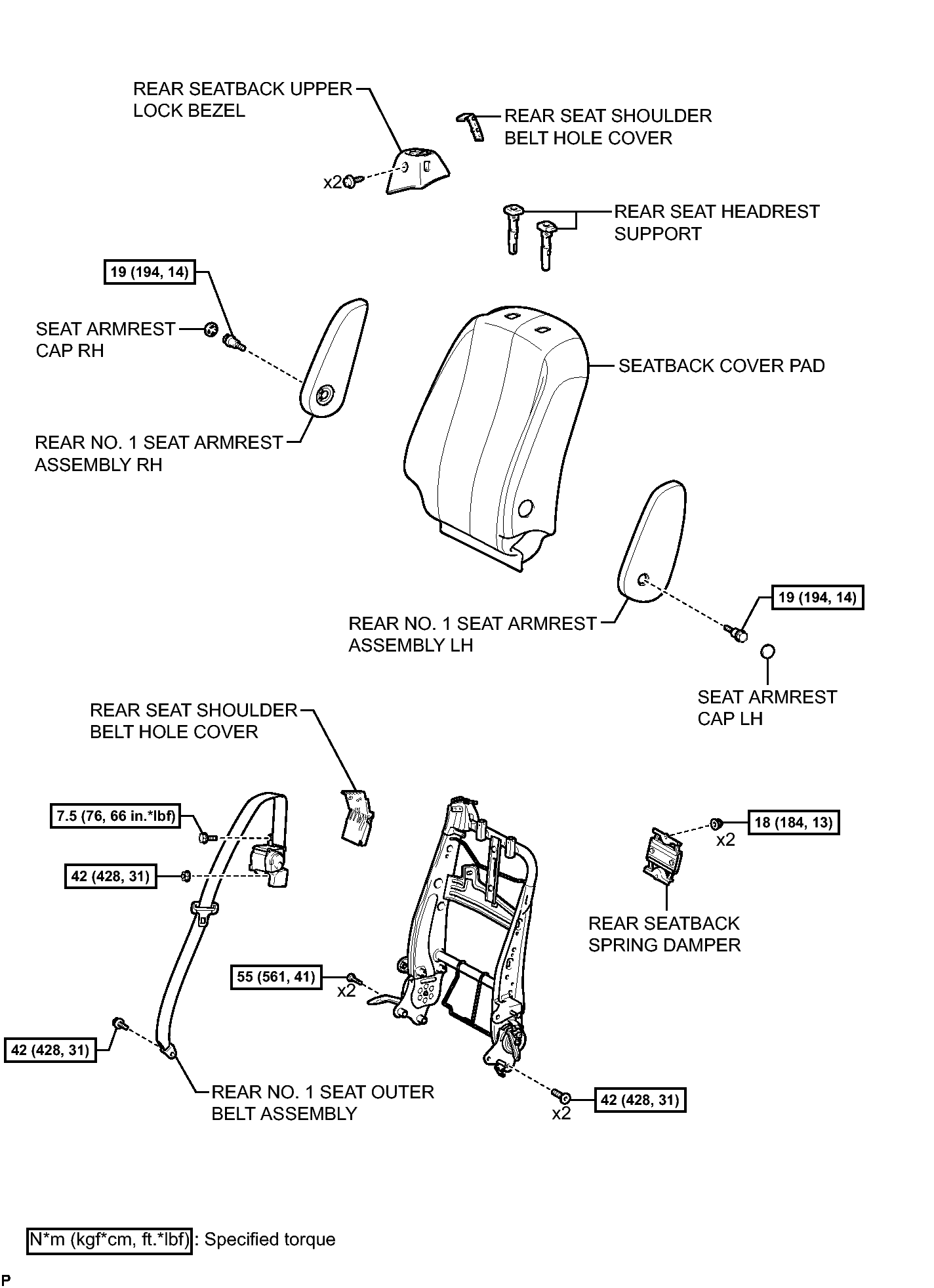

Fig 1: Rear No. 1 Seat Assembly (Ottoman) Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

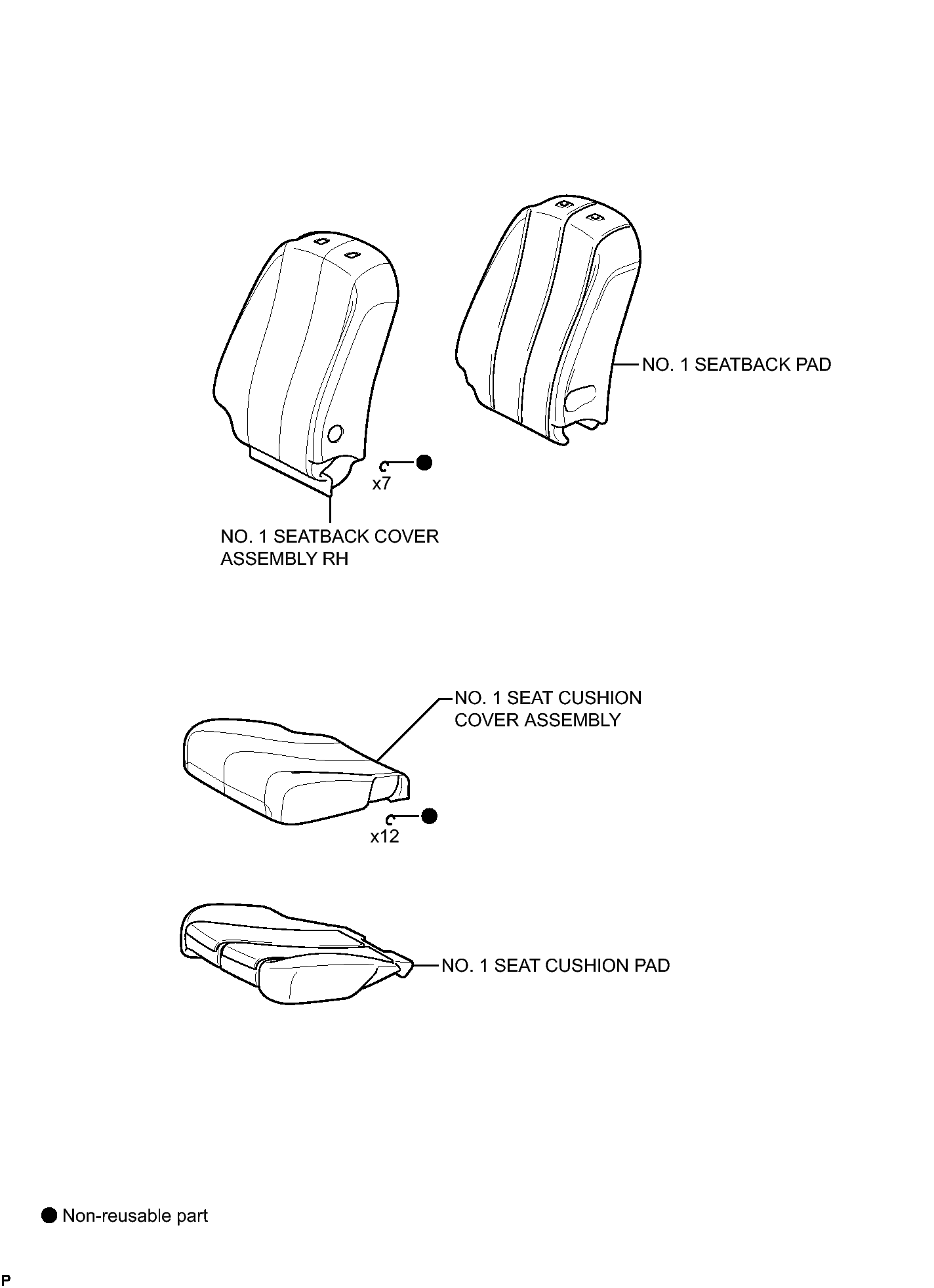

Fig 1: Rear No. 1 Seat Assembly (Ottoman) Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

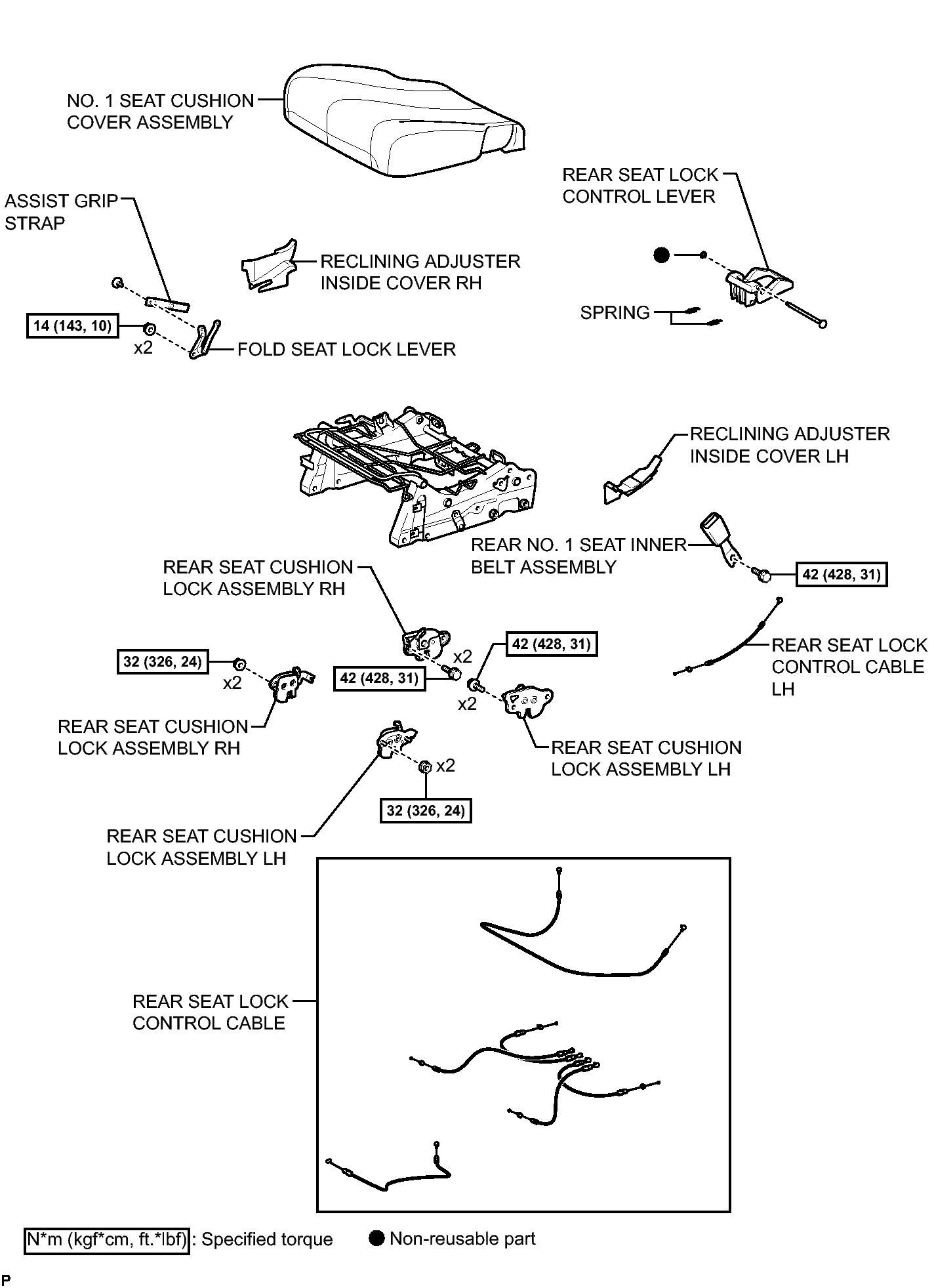

Fig 1: Rear No. 1 Seat Assembly (Ottoman) Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

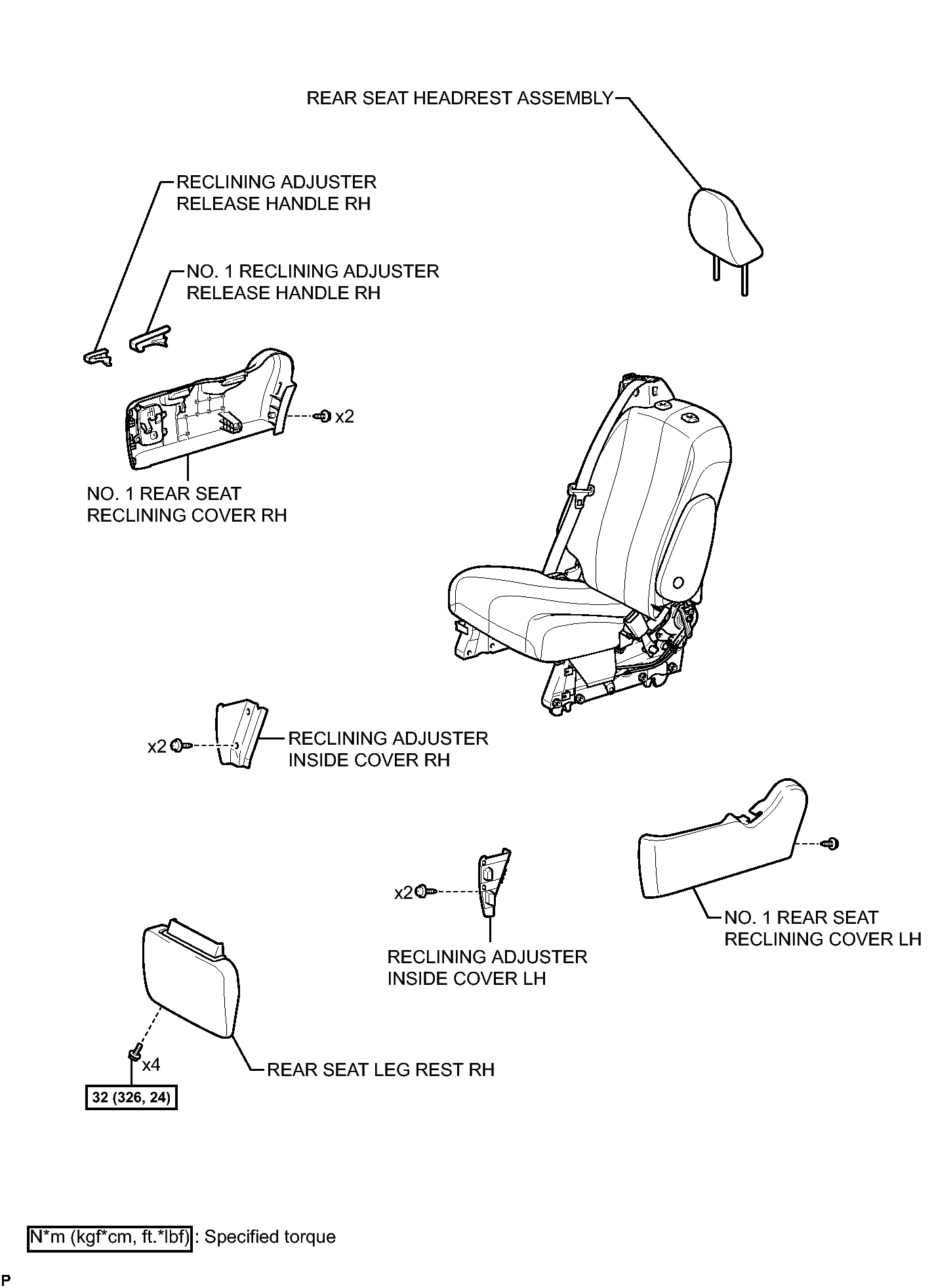

Fig 1: Rear No. 1 Seat Assembly (Ottoman) Replacement Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
