POWER SEAT SWITCH (for Rear No. 2 Seat): Installation: Installation

HINT:

• Use the same procedure for the LH side and RH side
• The procedure listed below is for the LH side.

1. INSTALL REAR POWER SEAT SWITCH
   1. Connect the rear power seat switch connector to the rear power seat switch.
   2. Install the power seat switch with the 2 screws
2. INSTALL RECLINING REMOTE CONTROL LEVER BEZEL
   1. Engage the 2 claws and install the reclining remote control lever bezel.

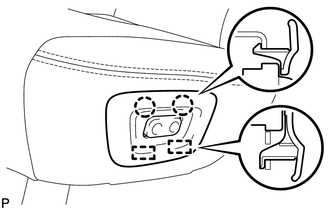

      Fig 1: Identifying Reclining Remote Control Lever Bezel & Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
