POWER SEAT CONTROL ECU (for Rear No. 2 Seat): Components: Illustration

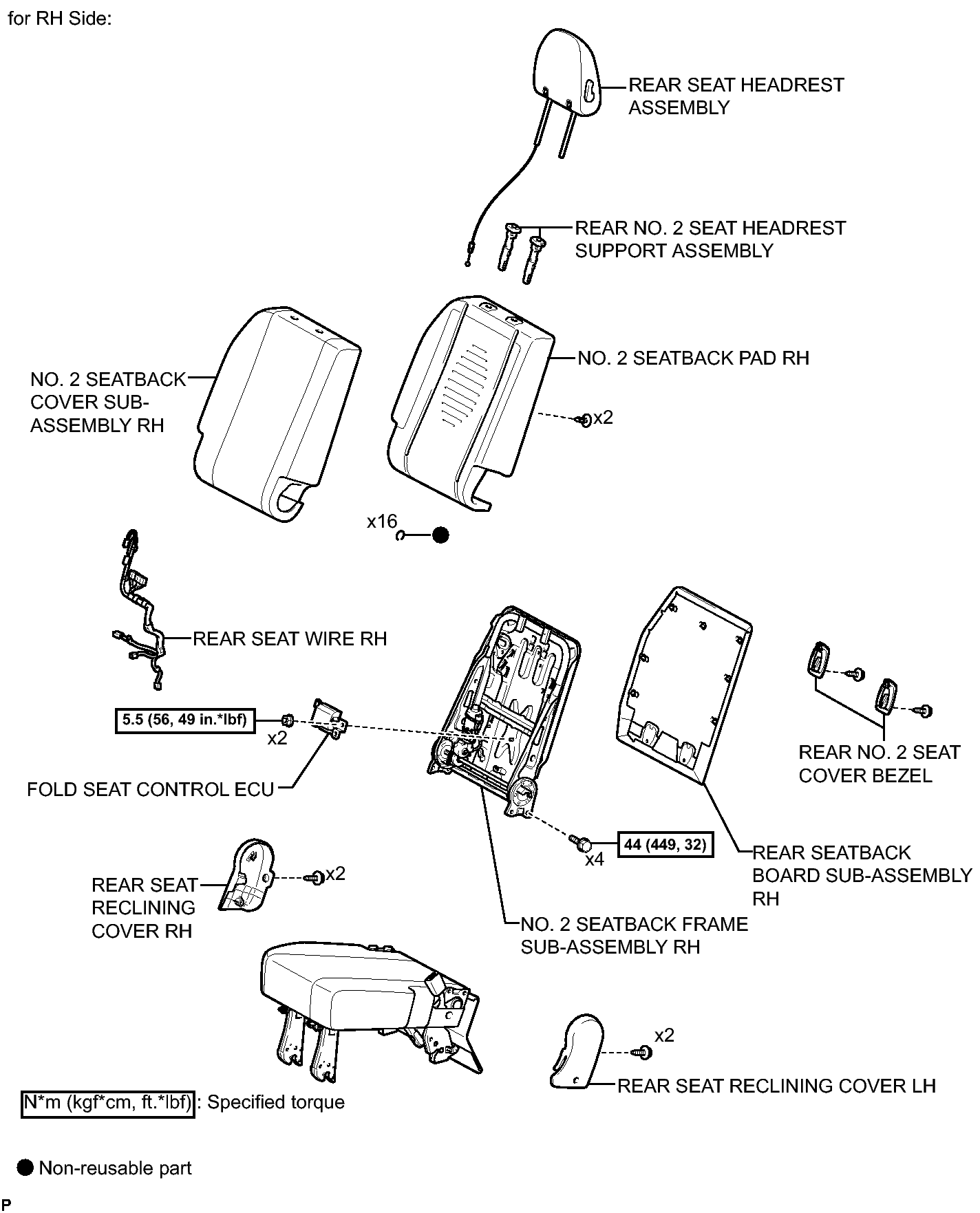

Fig 1: Power Seat Control ECU (Rear No. 2 Seat) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

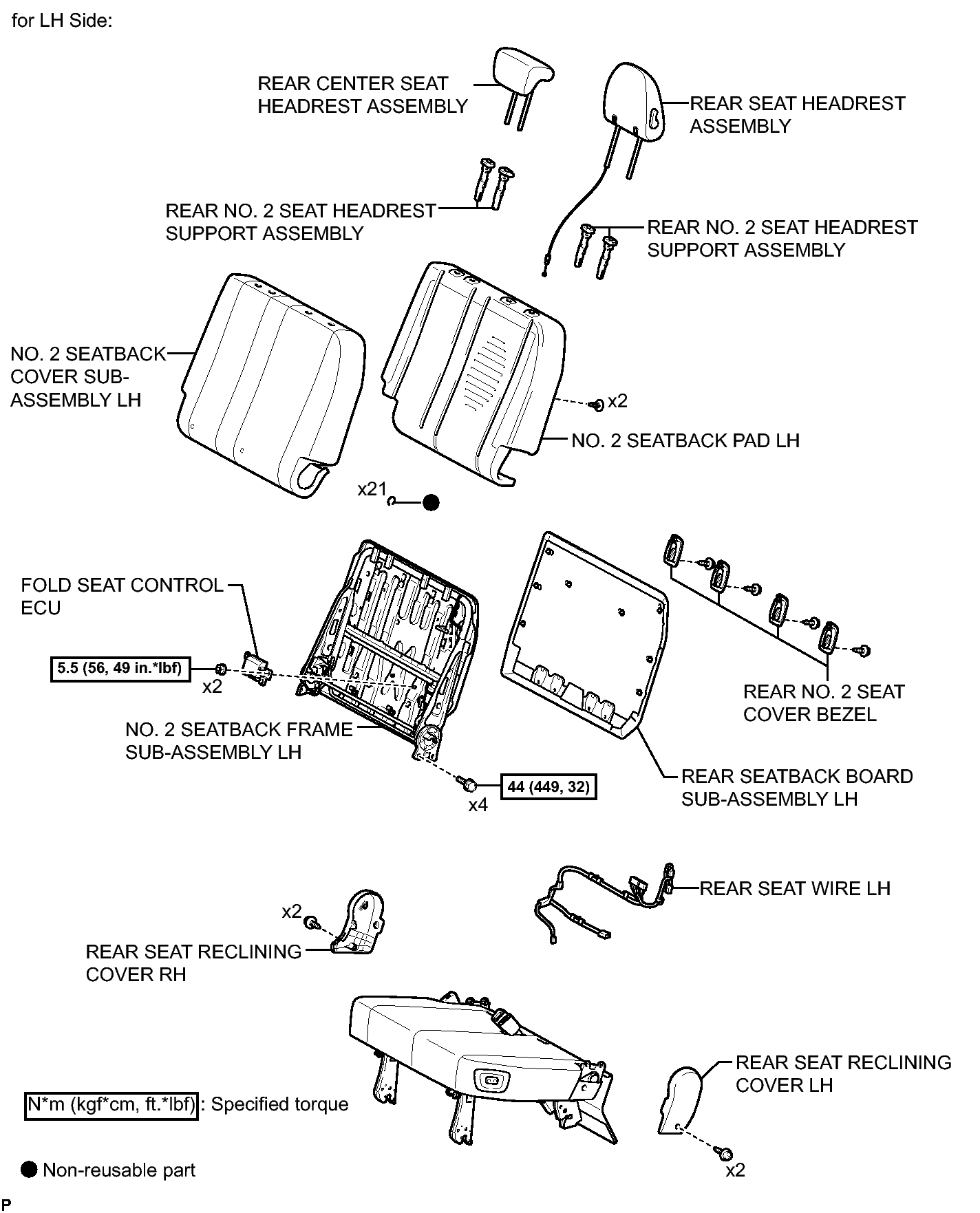

Fig 1: Power Seat Control ECU (Rear No. 2 Seat) Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
