Parts Location: Illustration

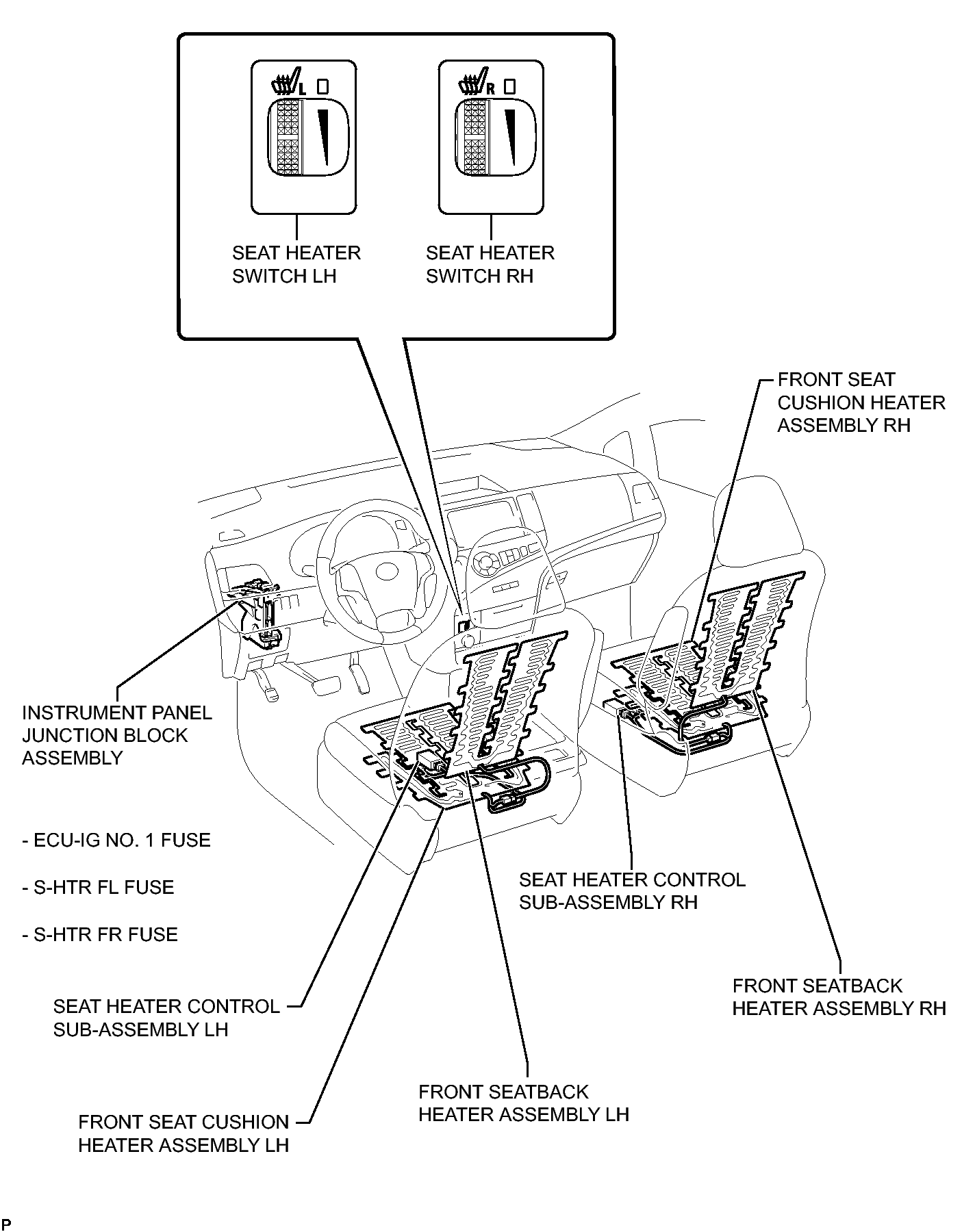

Fig 1: Seat Heater System Components Location

GTY305052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
