DTC 15: Up-down Motor Malfunction: Wiring Diagram

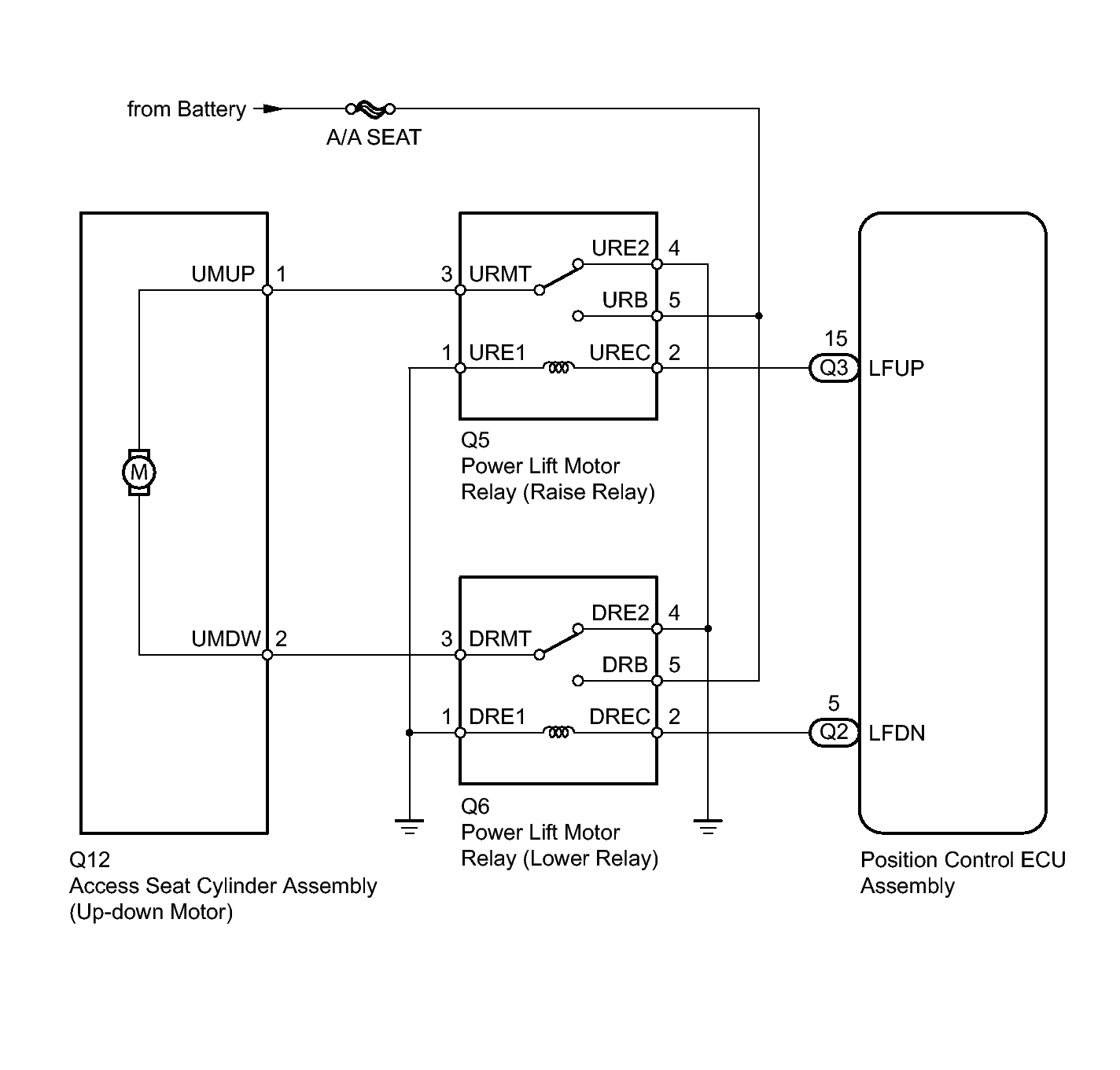

Fig 1: Up-Down Motor Circuit - Wiring Diagram

GTY305405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
