Instrument Panel Safety Pad: Components: Illustration

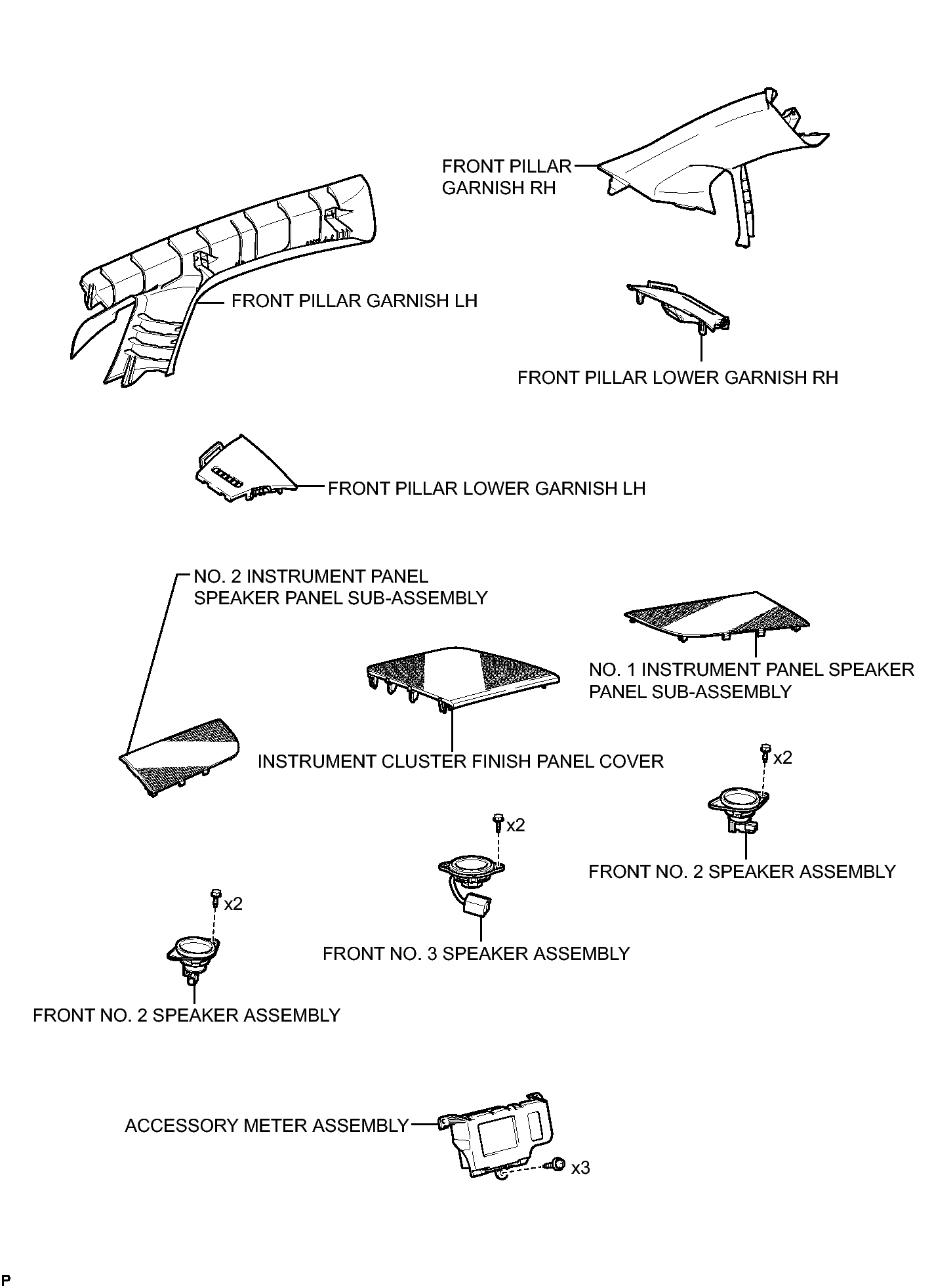

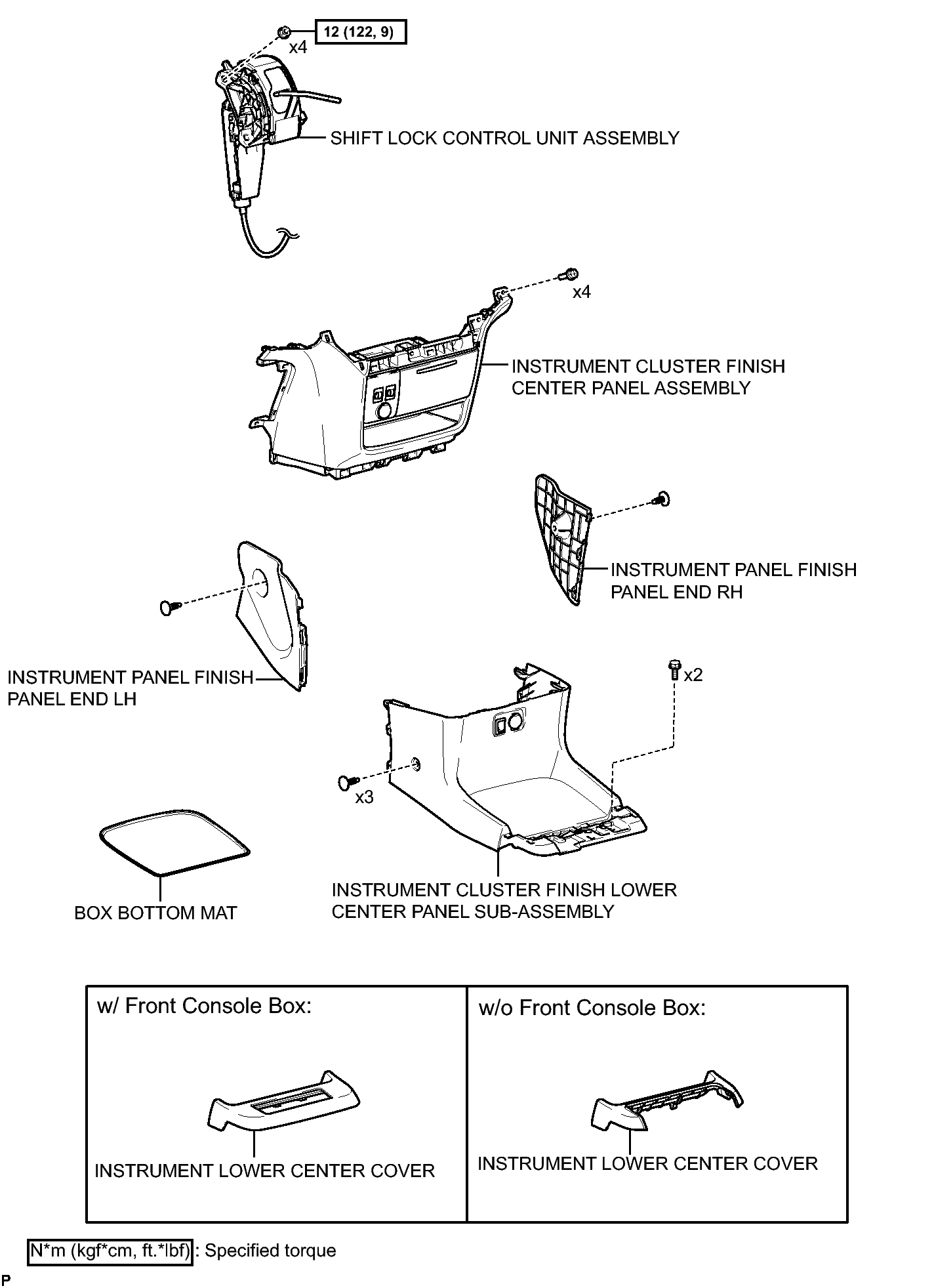

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

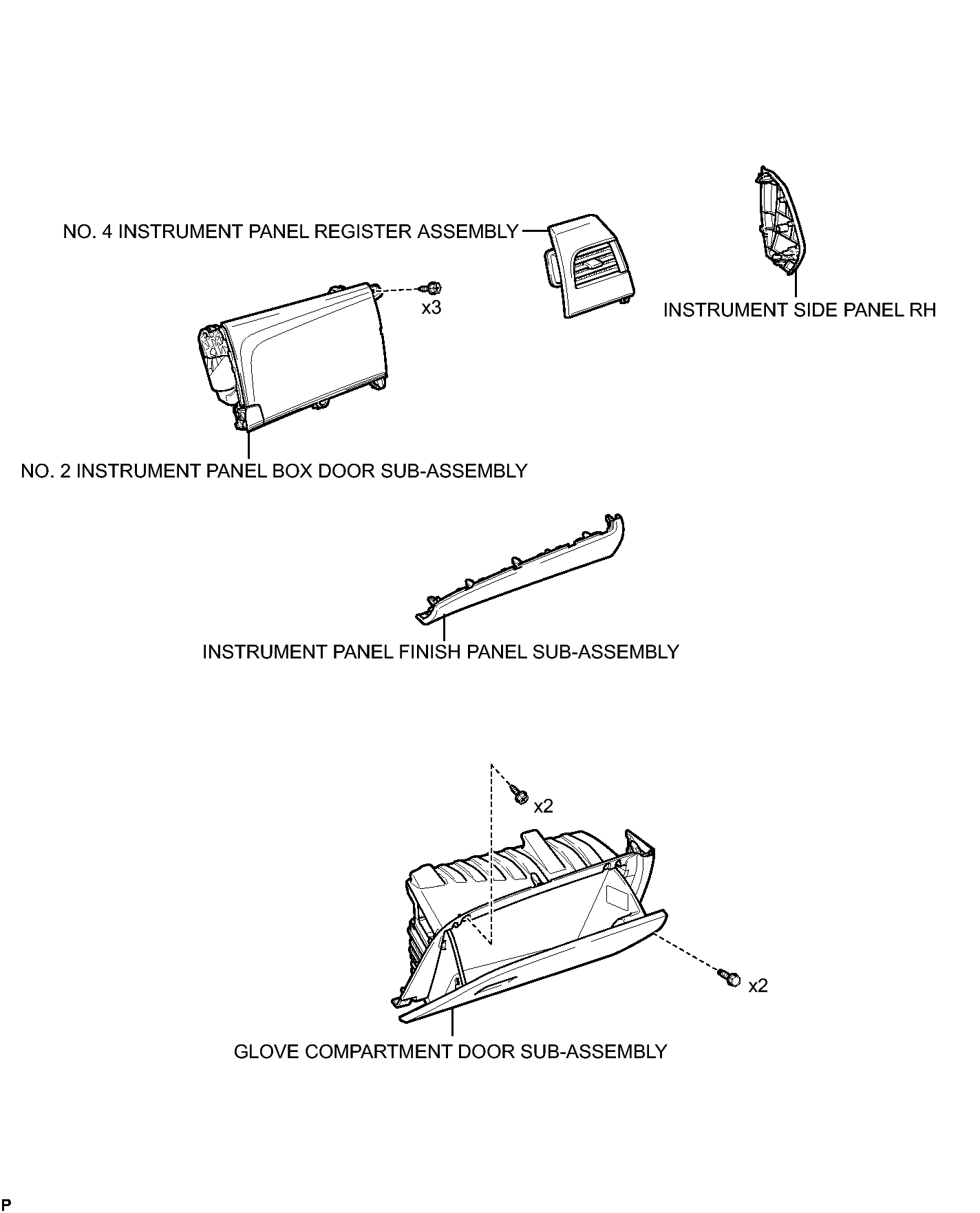

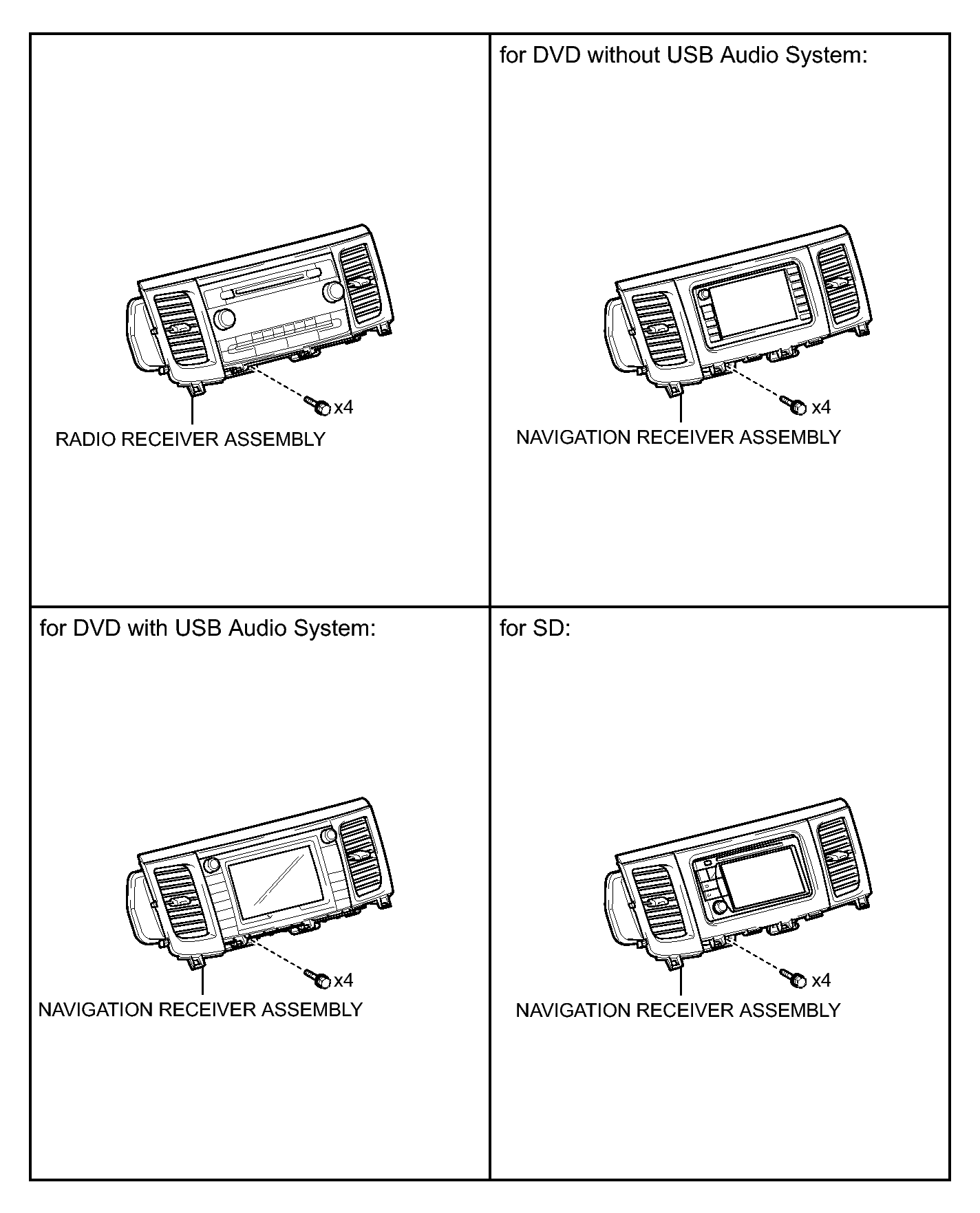

Fig 1: Instrument Panel Safety Pad Replacement Components (2 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

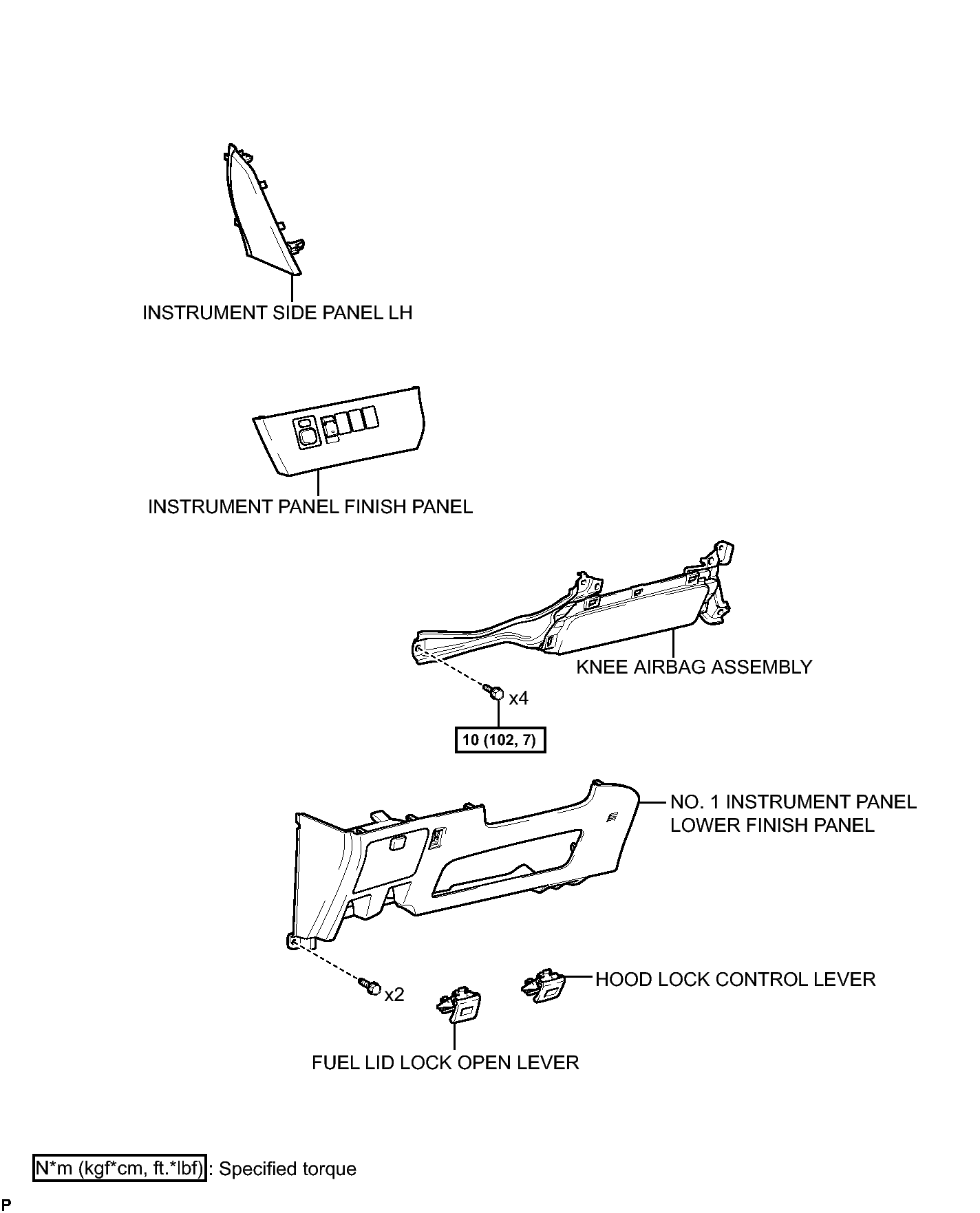

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (3 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

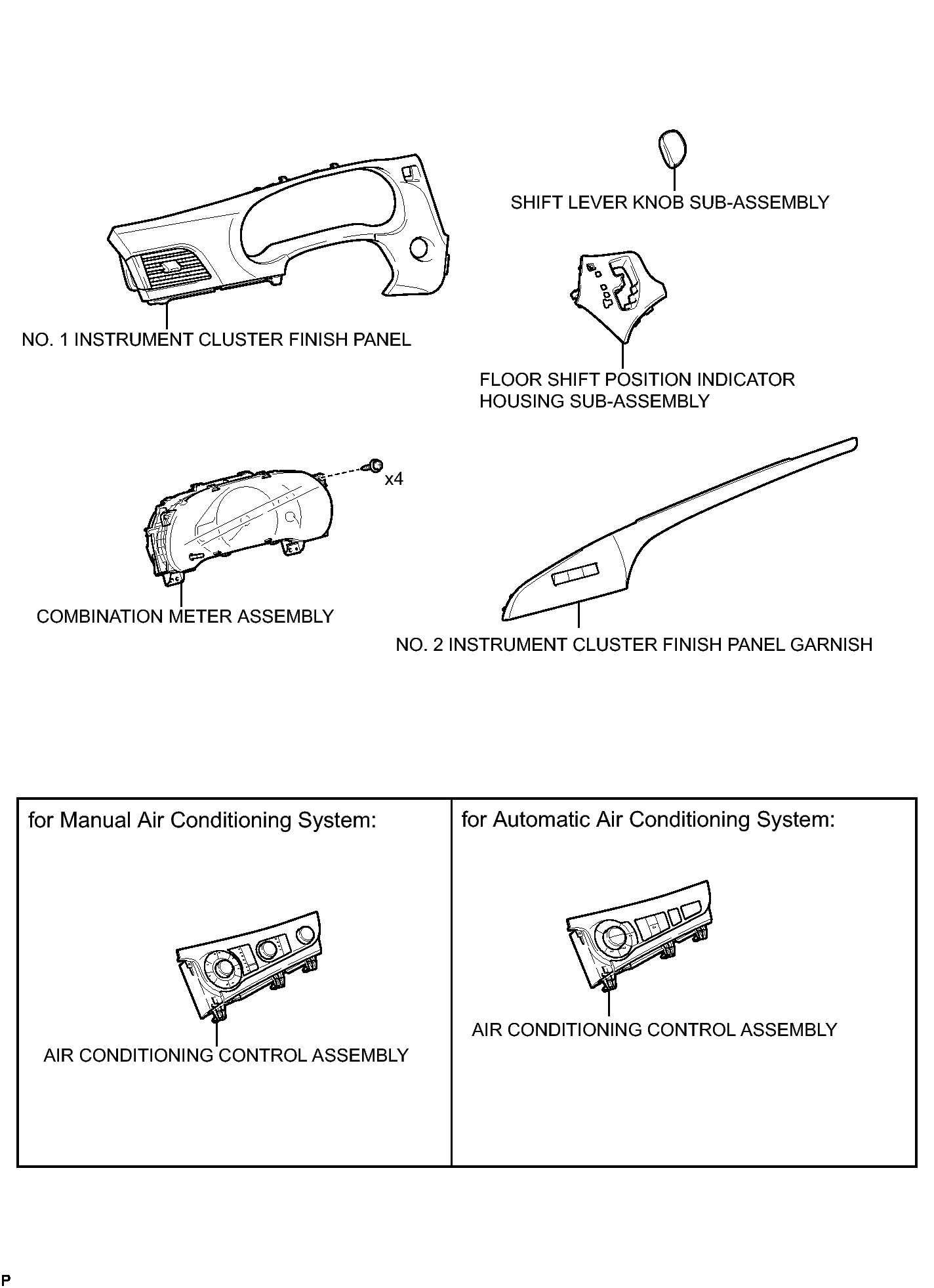

Fig 1: Instrument Panel Safety Pad Replacement Components (4 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

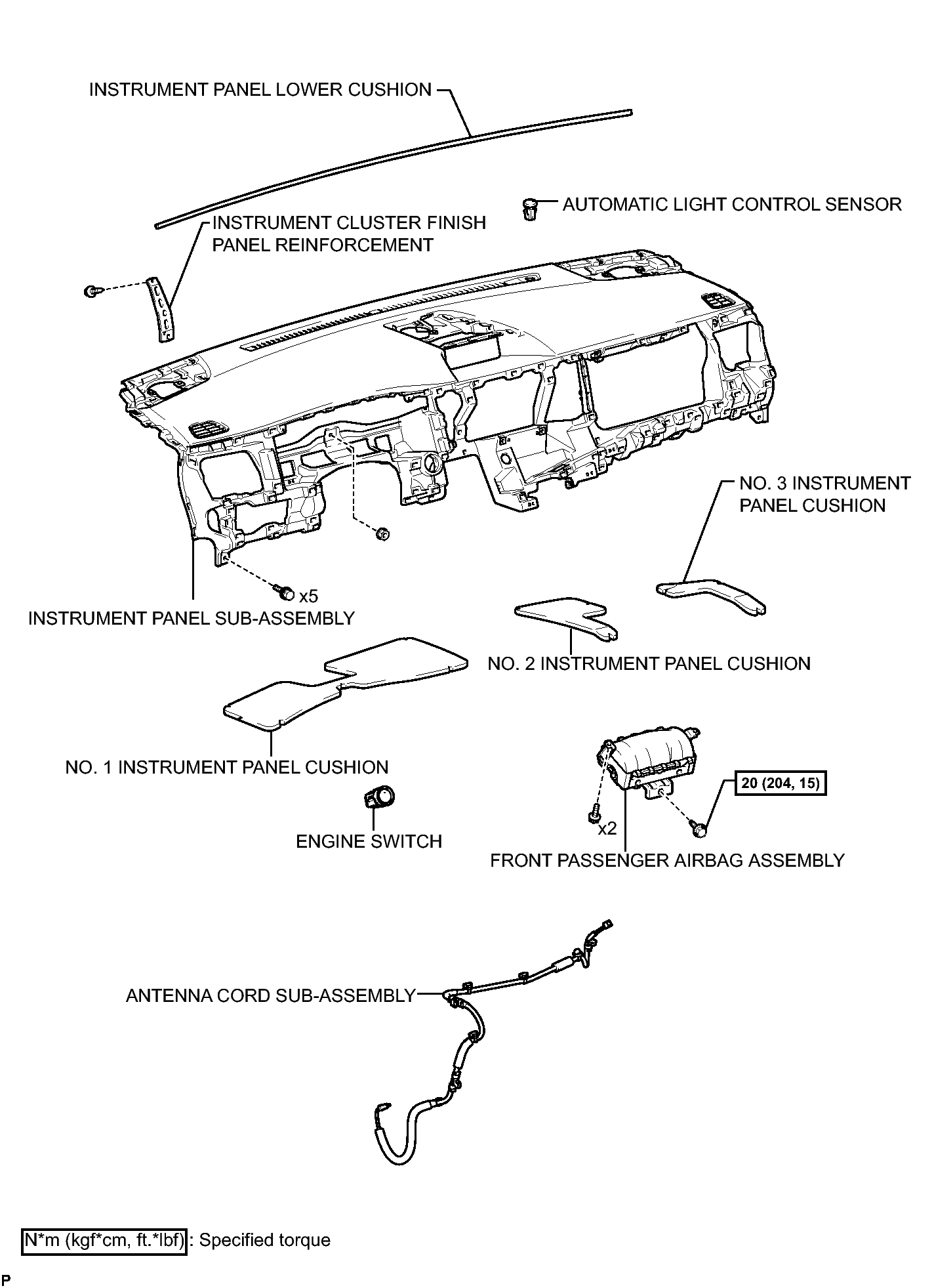

Fig 1: Instrument Panel Safety Pad Replacement Components (5 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

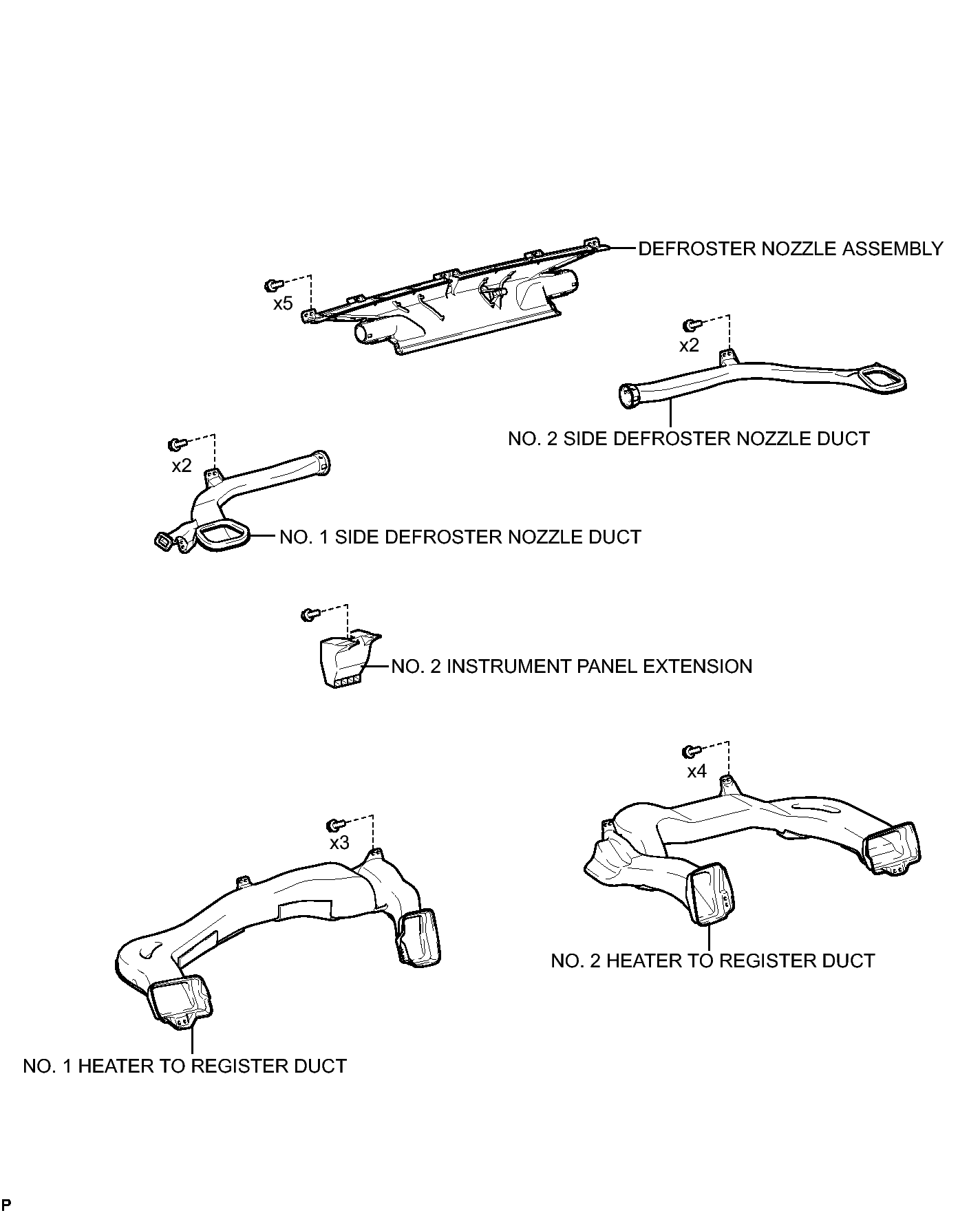

Fig 1: Instrument Panel Safety Pad Replacement Components (6 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

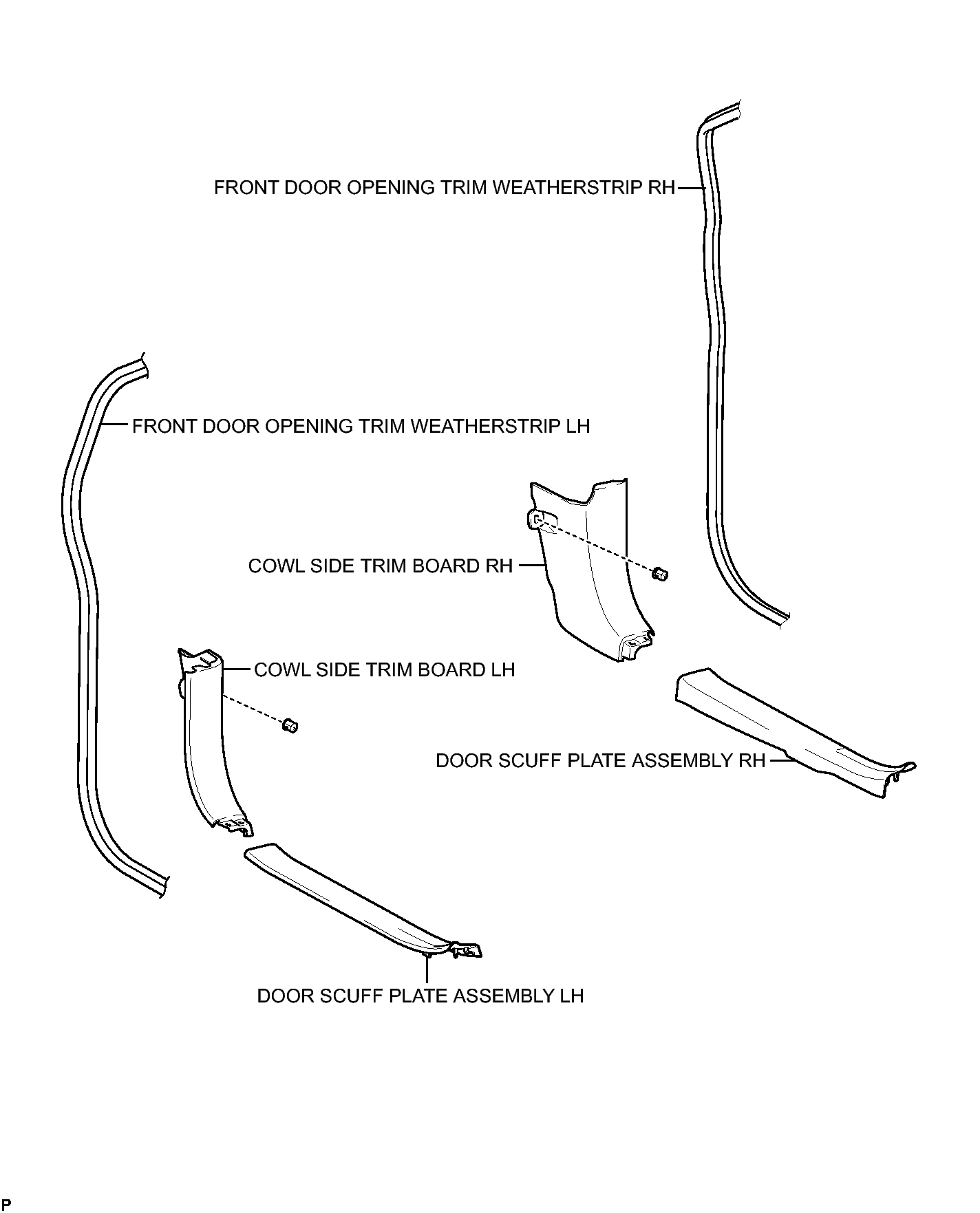

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (7 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Instrument Panel Safety Pad Replacement Components (8 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Instrument Panel Safety Pad Replacement Components (9 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (10 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
