Roof Drip Side Finish Moulding: Removal: Removal

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure described below is for the LH side.

1. REMOVE ROOF DRIP SIDE MOULDING

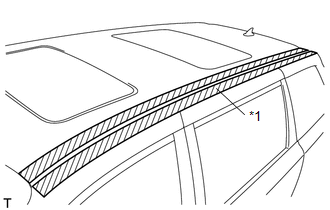

   Fig 1: Identifying Roof Drip Side Moulding Protective Tape

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION



      *1	Protective Tape

   2. Disengage the 2 clips and remove the roof drip side moulding.

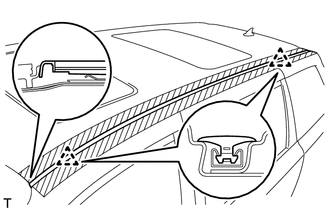

      Fig 2: Identifying Roof Drip Side Moulding Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      • Do not remove the clips.
      • Replace the clips with supply clips if damaged.
