Home >> Toyota >> 2012 >> Sienna SE >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior/Interior Trim >> Exterior Panels / Trim (Service Information) >> Rear Spoiler >> Components >> Illustration

Rear Spoiler: Components: Illustration

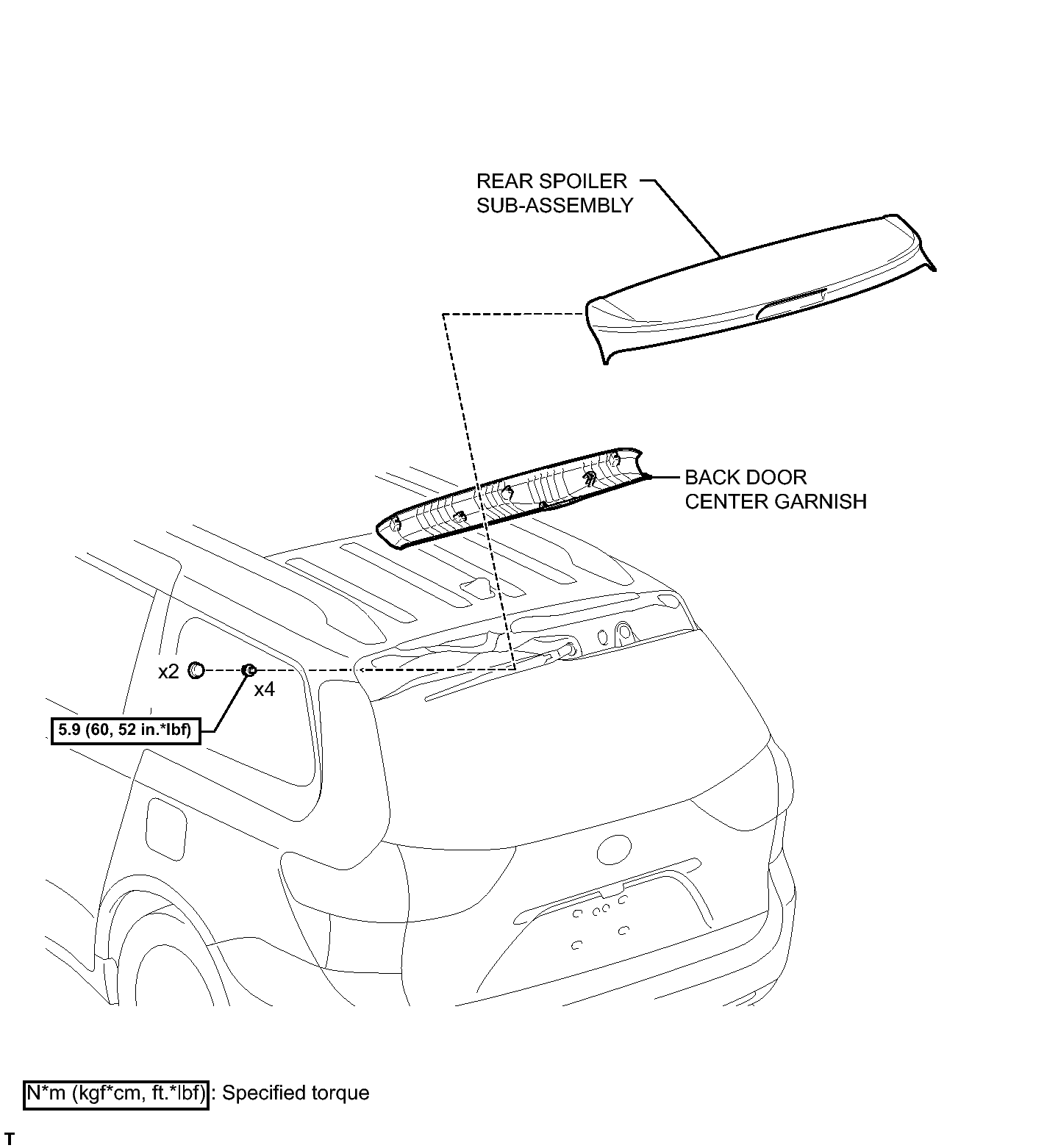

Fig 1: Rear Spoiler Replacement Components With Torque Specifications (1 Of 2)
GTY303989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

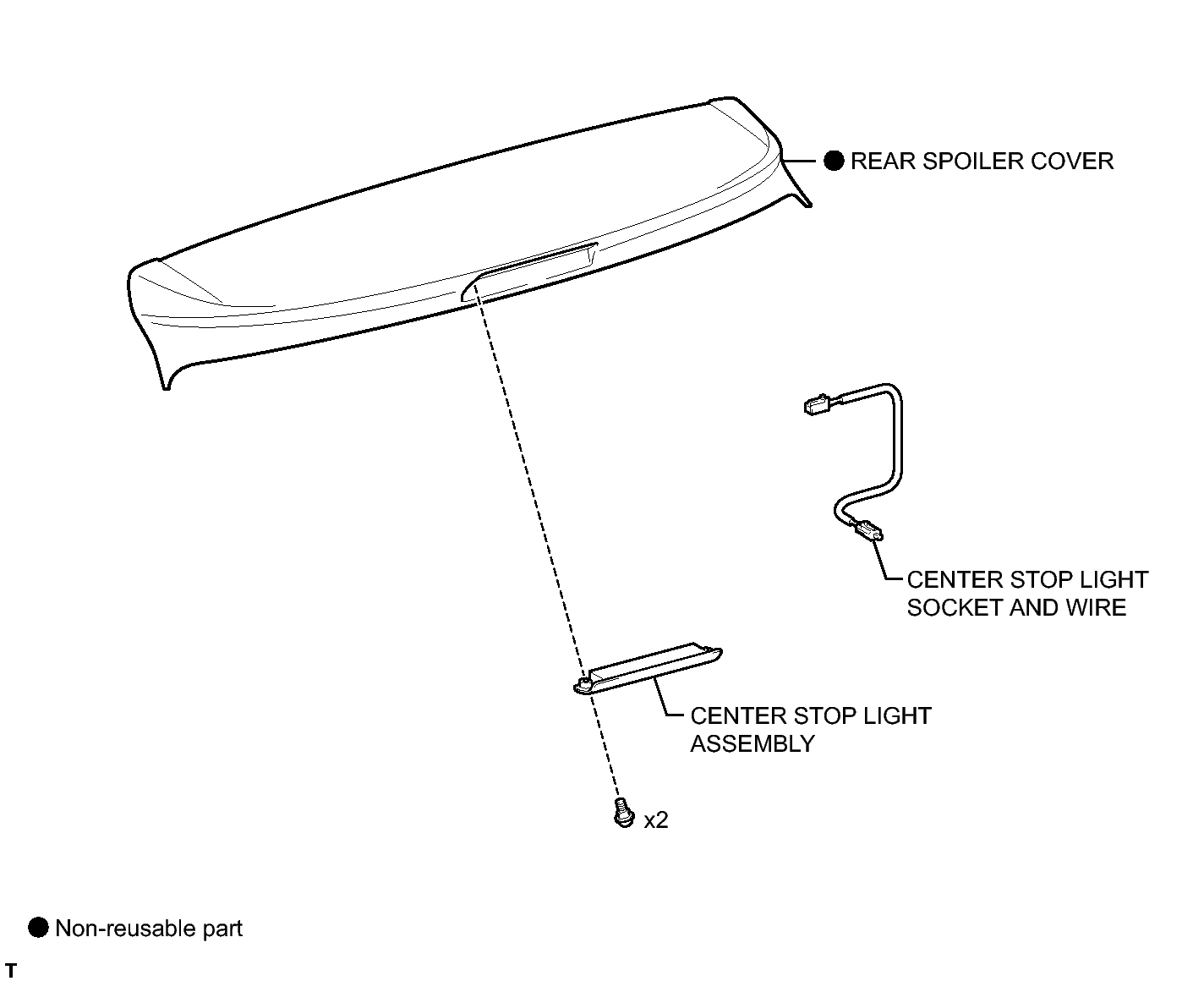

Fig 1: Identifying Rear Spoiler Replacement Components (2 Of 2)
GTY307047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
