Rear Bumper: Components: Illustration

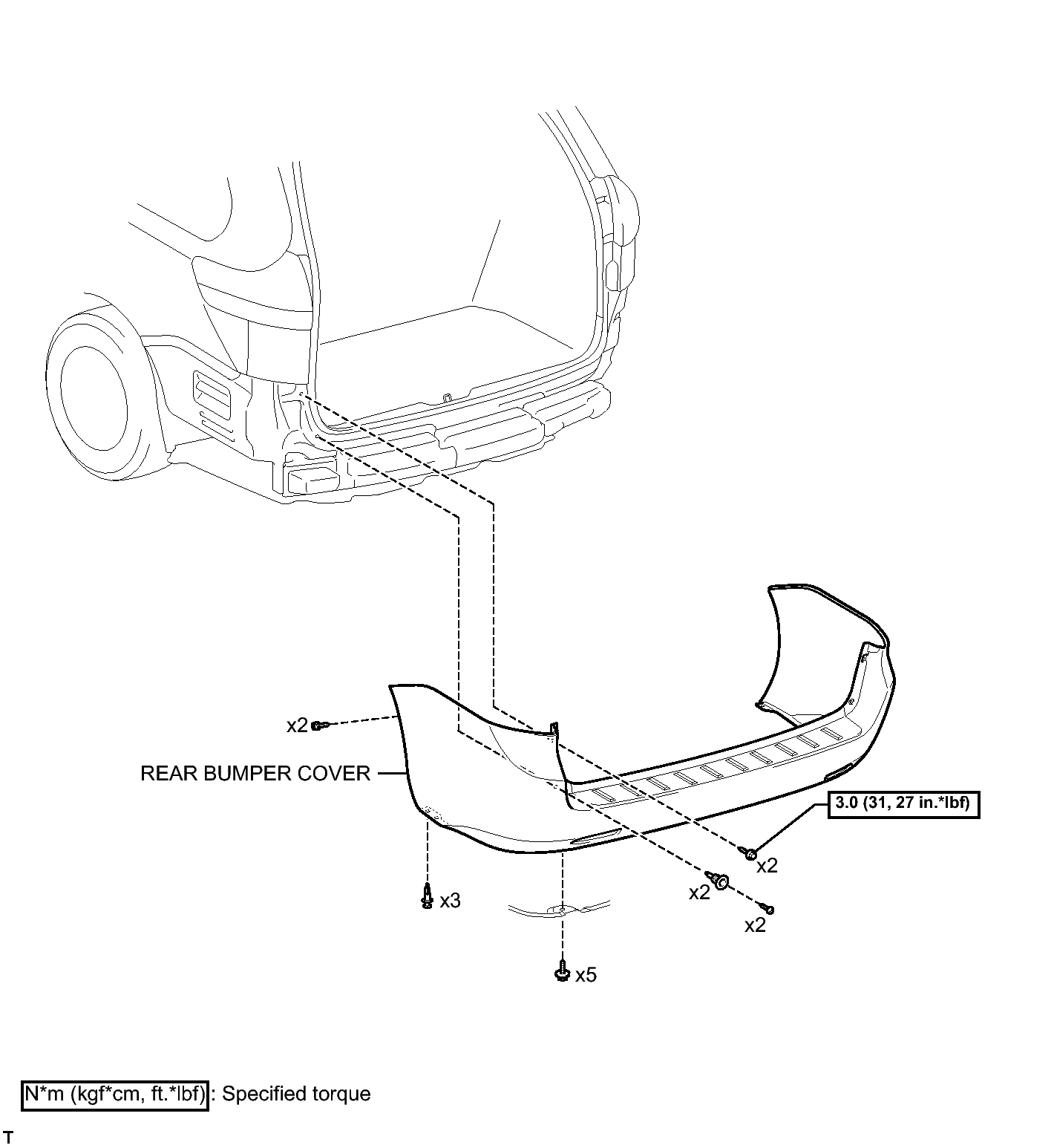

Fig 1: Rear Bumper Replacement Components With Torque Specifications (1 of 4)
GTY306988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

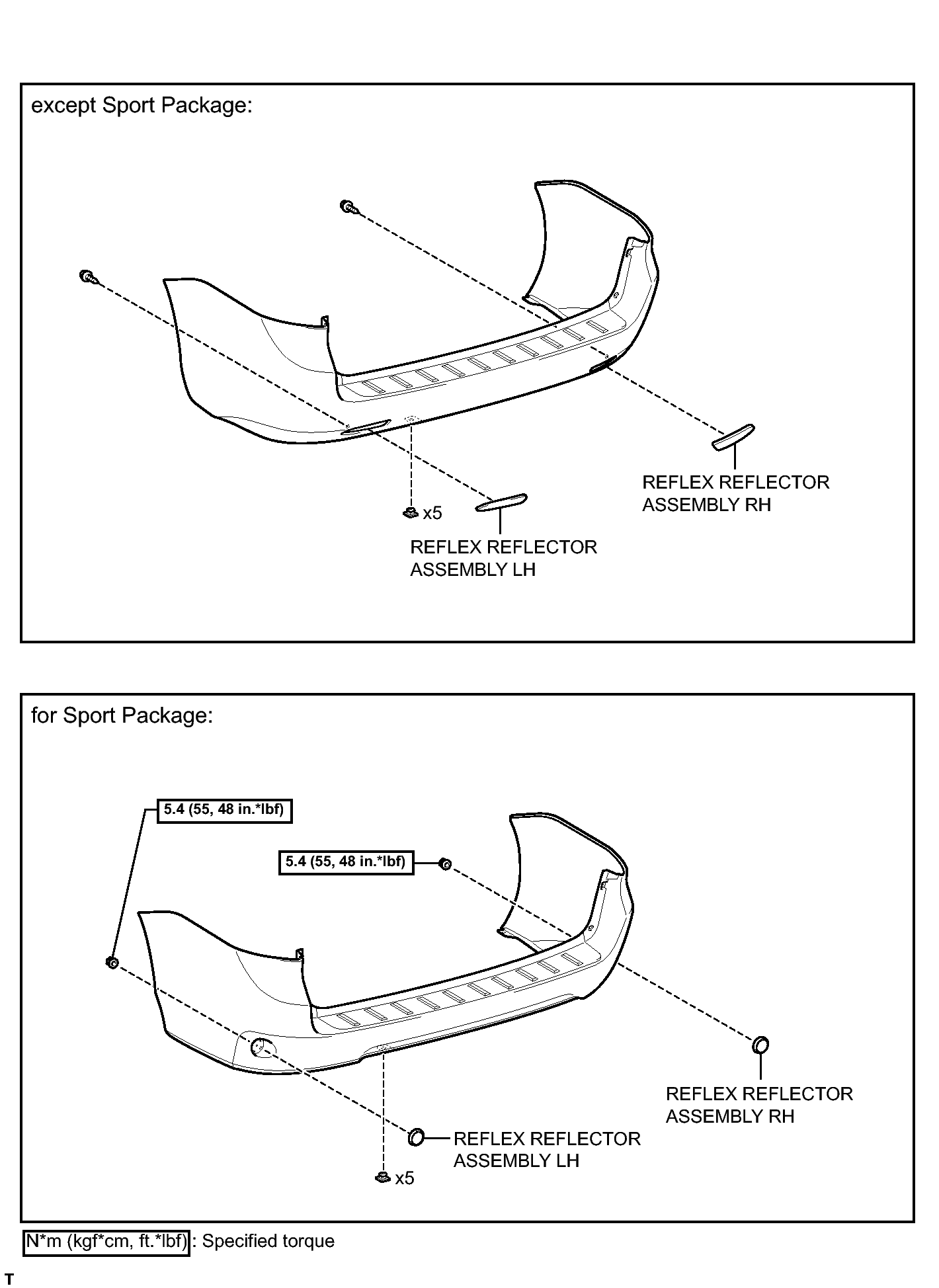

Fig 1: Rear Bumper Replacement Components With Torque Specifications (2 of 4)
GTY294884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Bumper Replacement Components (3 Of 4)
GTY305618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

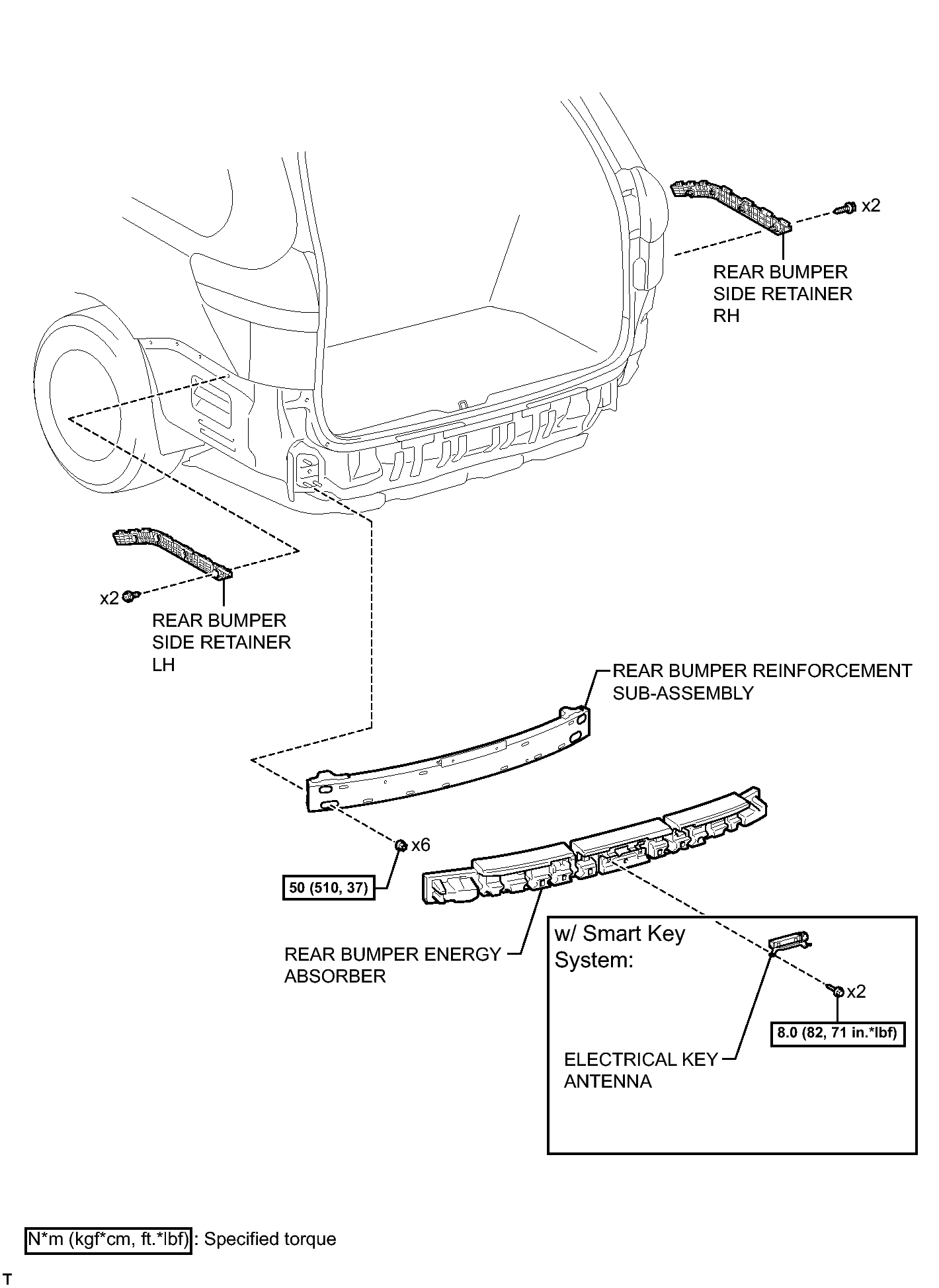

Fig 1: Rear Bumper Replacement Components With Torque Specifications (4 Of 4)
GTY296873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
