Name Plate: Components: Illustration

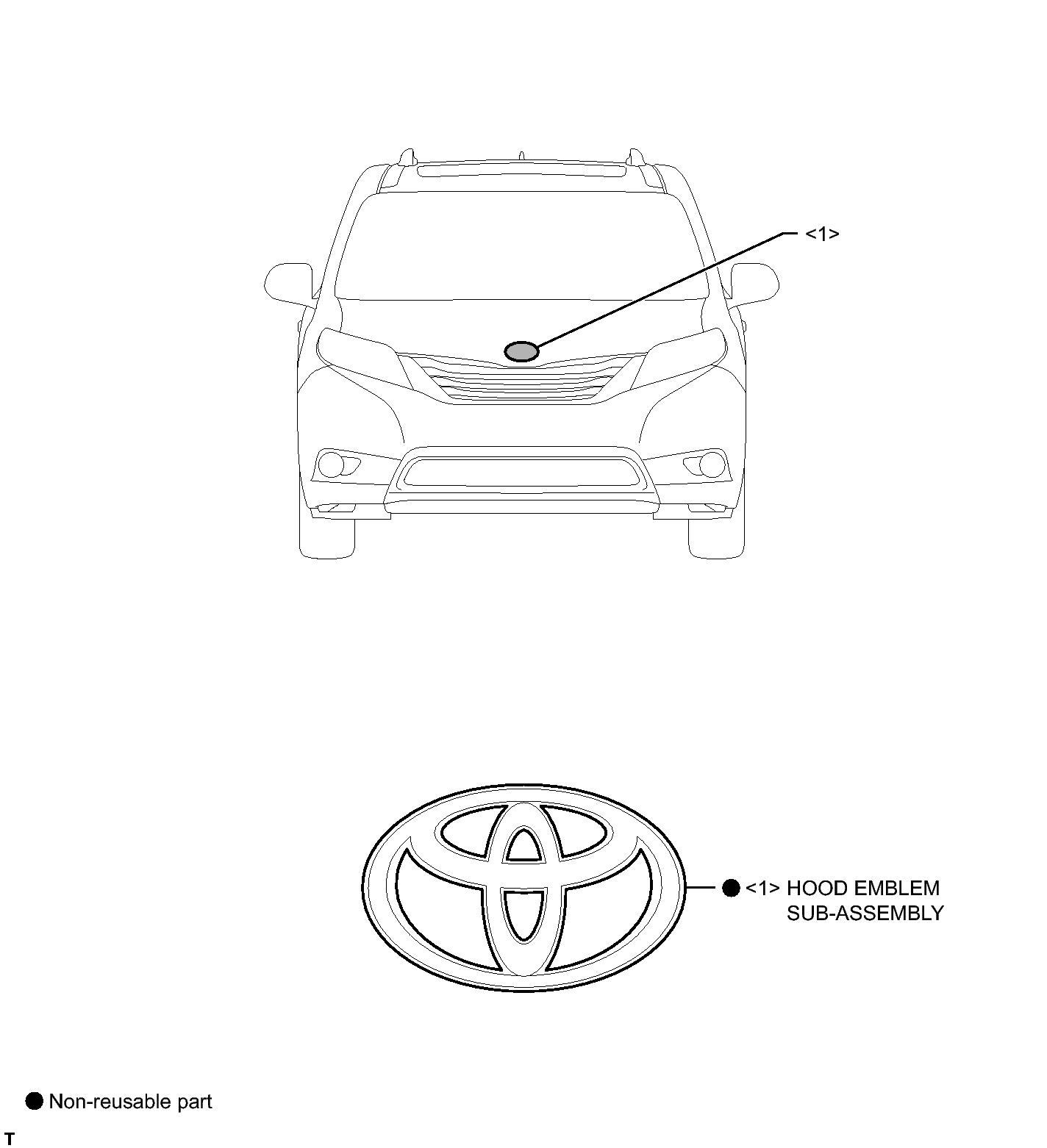

Fig 1: Name Plate Replacement Components (1 of 2)
GTY299539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

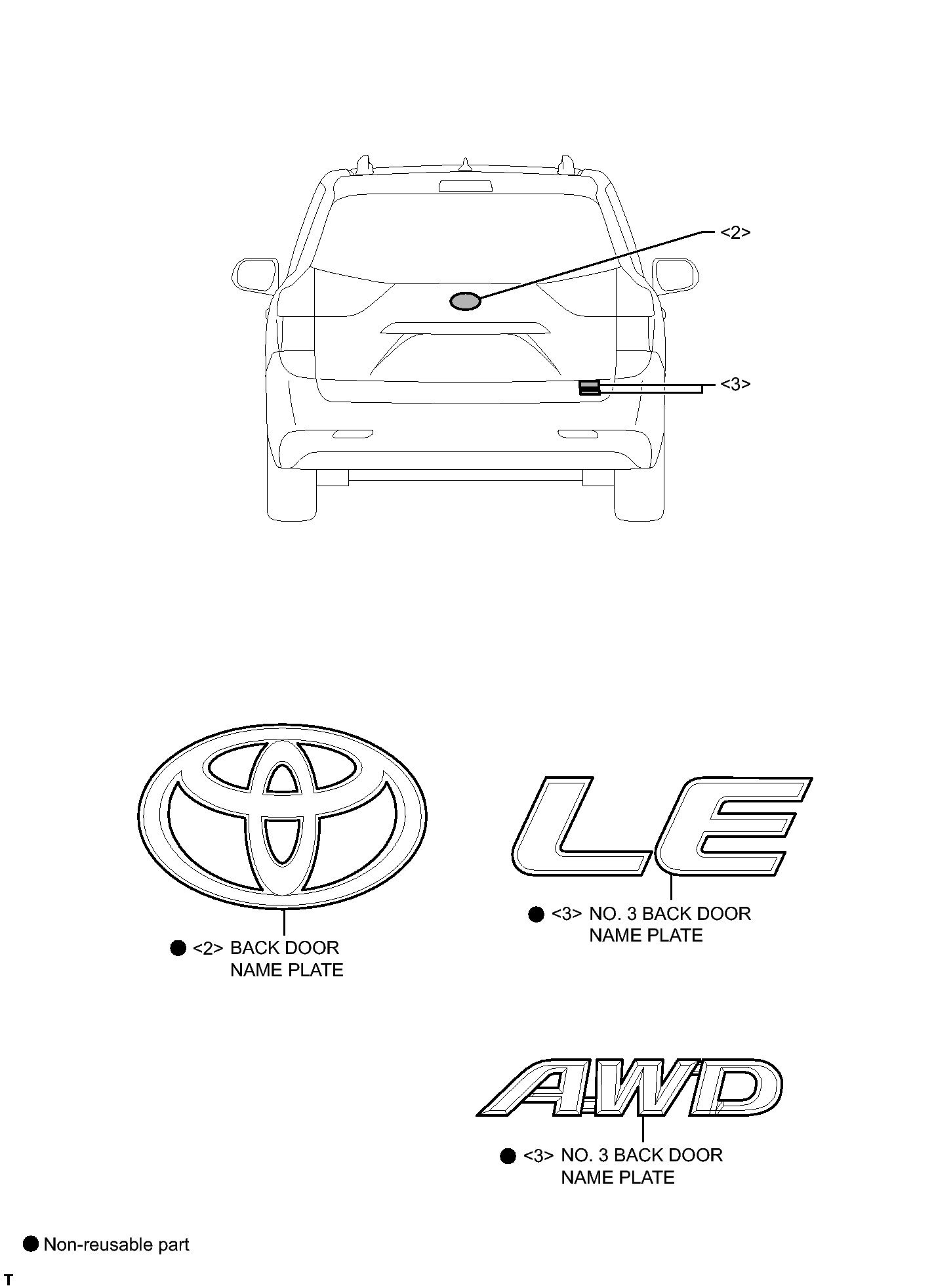

Fig 1: Name Plate Replacement Components (2 of 2)
GTY296687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
