Front Bumper: Components: Illustration

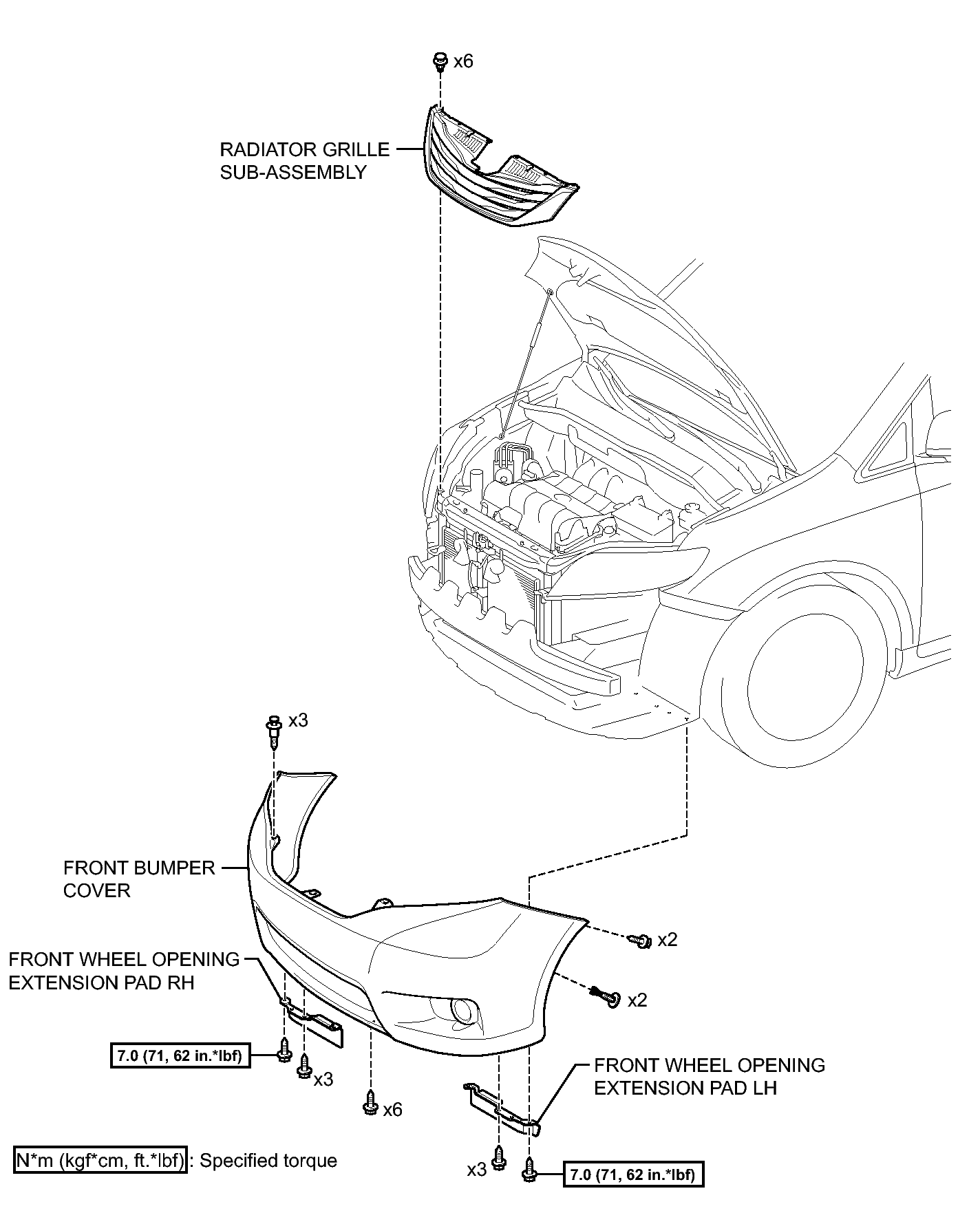

Fig 1: Front Bumper Replacement Components With Torque Specifications (1 Of 4)
GTY298299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

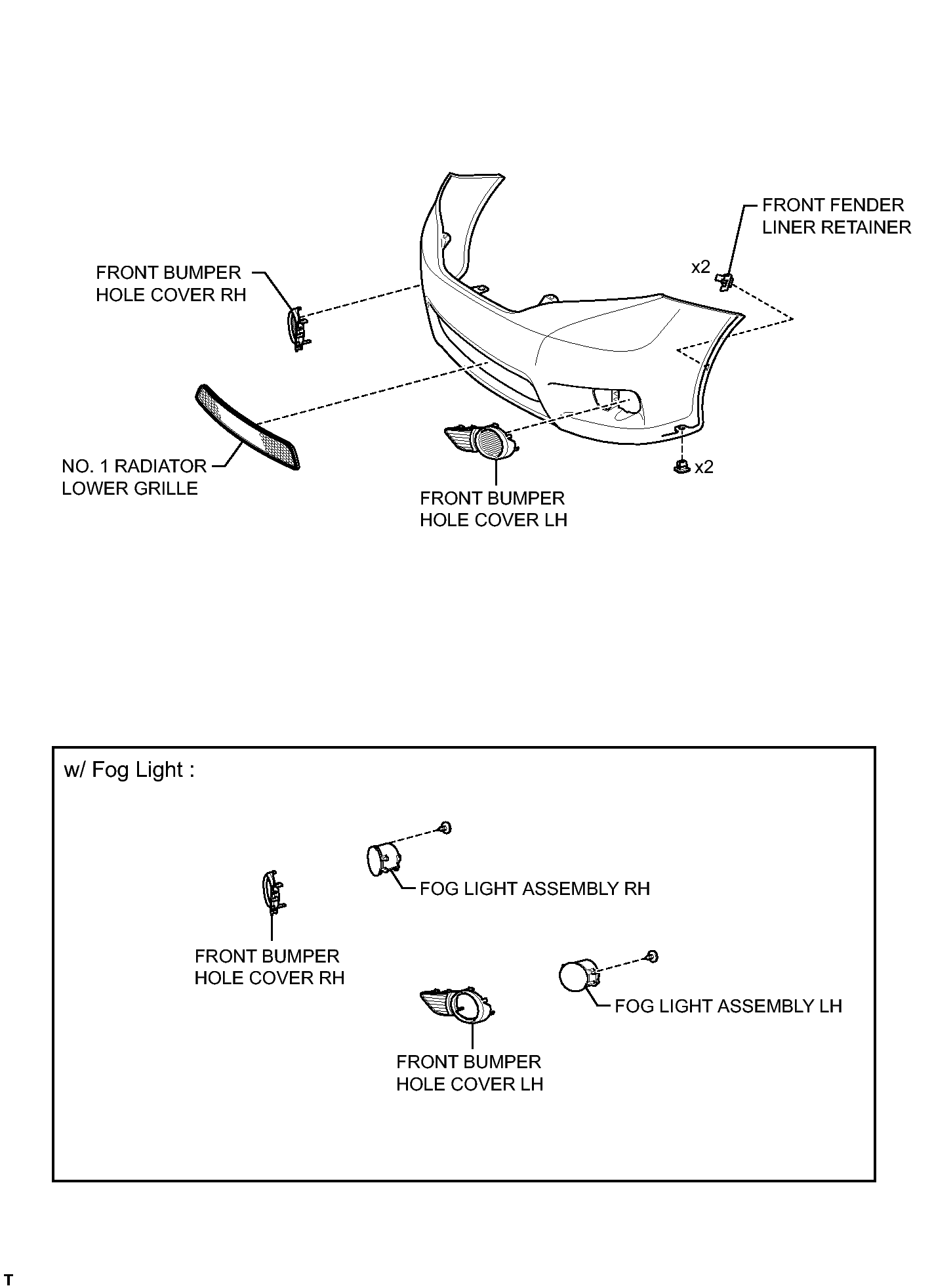

Fig 1: Front Bumper Replacement Components (2 Of 4)
GTY303145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Front Bumper Replacement Components (3 Of 4)
GTY298791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

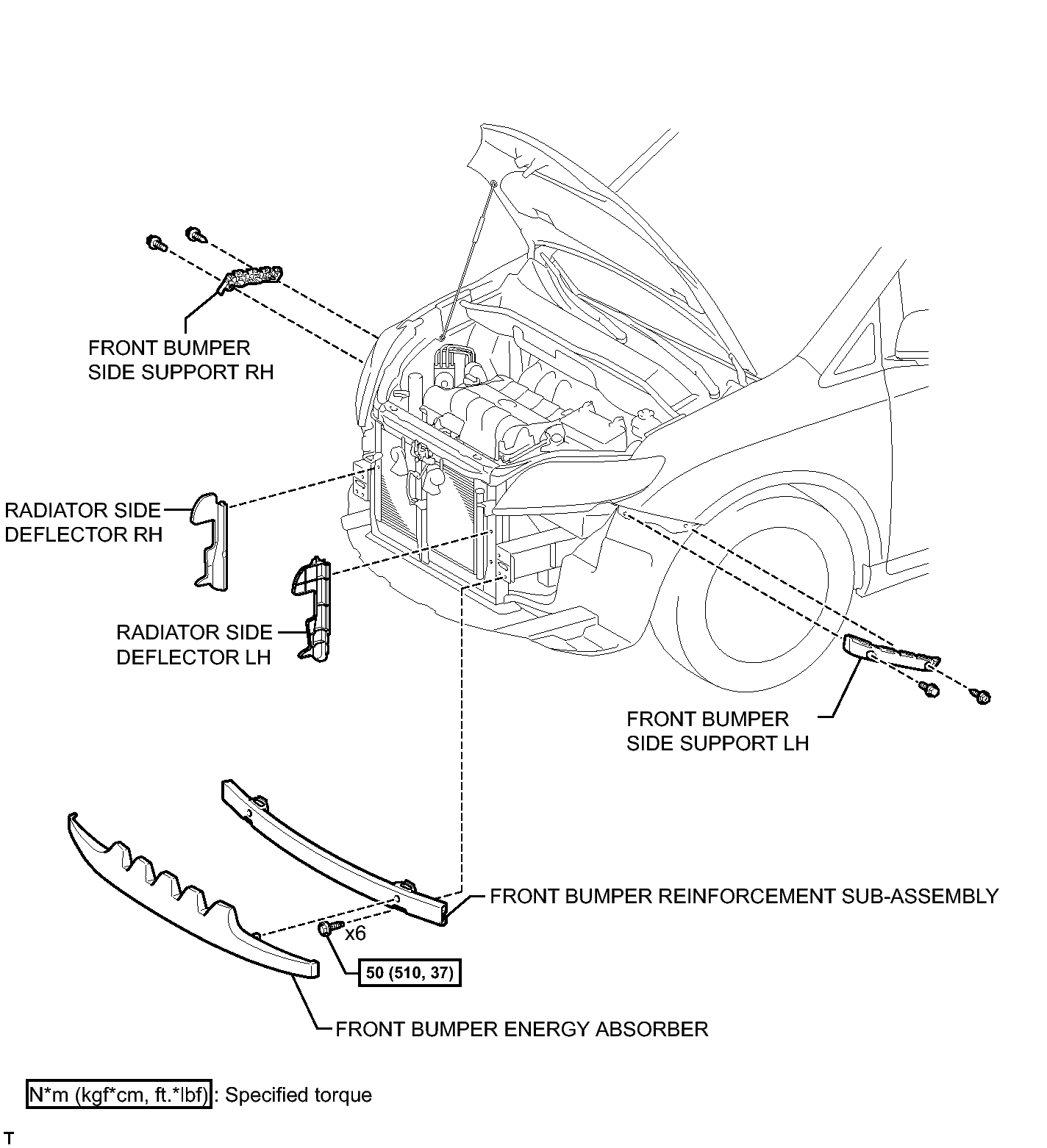

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (4 Of 4)
GTY305723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
