DTC B2254: Slide Door Closer Switch RH Malfunction: Wiring Diagram

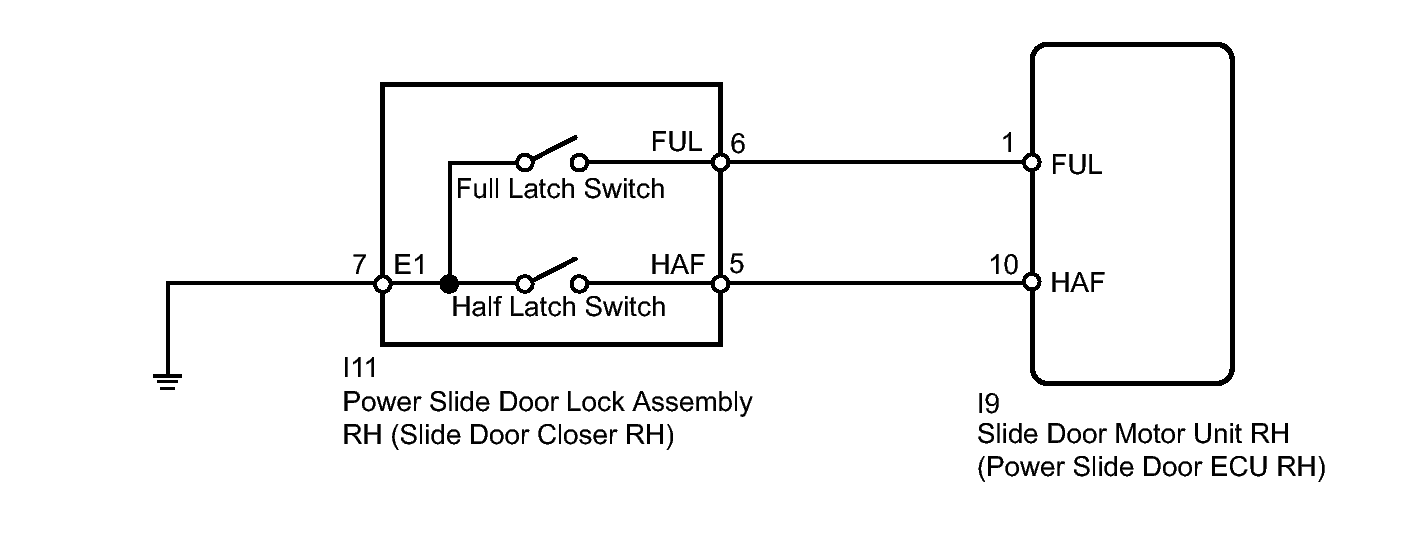

Fig 1: Slide Door Closer Switch RH Circuit - Wiring Diagram

GTY300547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
