DTC B2254: Slide Door Closer Switch RH Malfunction: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Rear Right Door / Data List.
5. Read the Data List according to the display on the Techstream.
   REAR RIGHT DOOR



   Tester Display	Measurement Item / Range	Normal Condition	Diagnosis Note
   Half Switch	Status of the half latch switch / OFF or ON	ON: Slide door open → just before half latched OFF: Slide door half latched → fully closed	-
   Full Switch	Status of the full latch switch / OFF or ON	ON: Slide door open → just before fully closed OFF: Slide door fully closed	-

   OK

   When the switch is operating, the Techstream should display as shown in the above table.

NG → See step   2

OK → See step   4

1. Disconnect the I11 power slide door lock assembly RH connector.
2. Measure the resistance according to the value(s) in the table below.
   Fig 1: Inspecting Power Slide Door Lock Assembly RH (Full Latch Switch, Half Latch Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Half Latch Switch

   FULL LATCH SWITCH



   Tester Connection	Condition	Specified Condition
   6 (FUL) - 7 (E1)	Open	Below 1 Ω
   6 (FUL) - 7 (E1)	Half latch	Below 1 Ω
   6 (FUL) - 7 (E1)	Full latch	10 kΩ or higher
   6 (FUL) - 7 (E1)	Over latch	10 kΩ or higher

   Tester Connection	Condition	Specified Condition
   5 (HAF) - 7 (E1)	Open	Below 1 Ω
   5 (HAF) - 7 (E1)	Half latch	10 kΩ or higher
   5 (HAF) - 7 (E1)	Full latch	10 kΩ or higher
   5 (HAF) - 7 (E1)	Over latch	10 kΩ or higher

NG → See step   5

OK: Go to next step

1. Disconnect the I9 power slide door ECU RH connector.
2. Disconnect the I11 power slide door lock assembly RH connector.
3. Measure the resistance according to the value(s) in the table below.

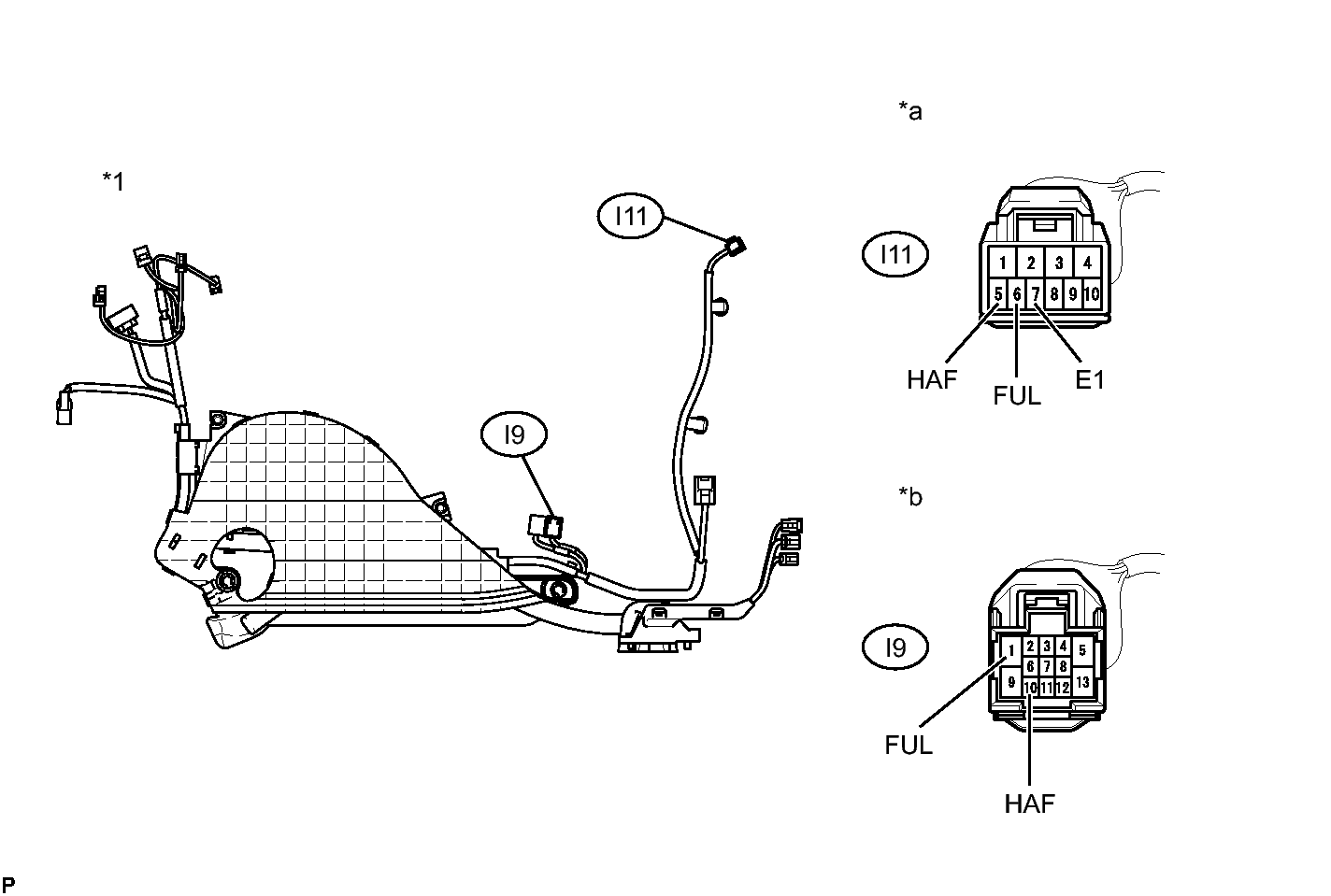

   Fig 2: Checking Rear Door Wire RH (Power Slide Door Lock Assembly RH - Power Slide Door ECU RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Rear Door Wire RH	-	-
   *a	Front view of wire harness connector (to Power Slide Door Lock Assembly RH)	*b	Front view of wire harness connector (to Power Slide Door ECU RH)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I11-6 (FUL) - I9-1 (FUL)	Always	Below 1 Ω
   I11-5 (HAF) - I9-10 (HAF)	Always	Below 1 Ω
   I11-7 (E1) - Body ground	Always	Below 1 Ω
   I11-6 (FUL) - Body ground	Always	10 kΩ or higher
   I11-5 (HAF) - Body ground	Always	10 kΩ or higher

NG → See step   6

OK → See step   4
