Parts Location: Illustration

Fig 1: Power Slide Door System Components Location (1 Of 3)
GTY298682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

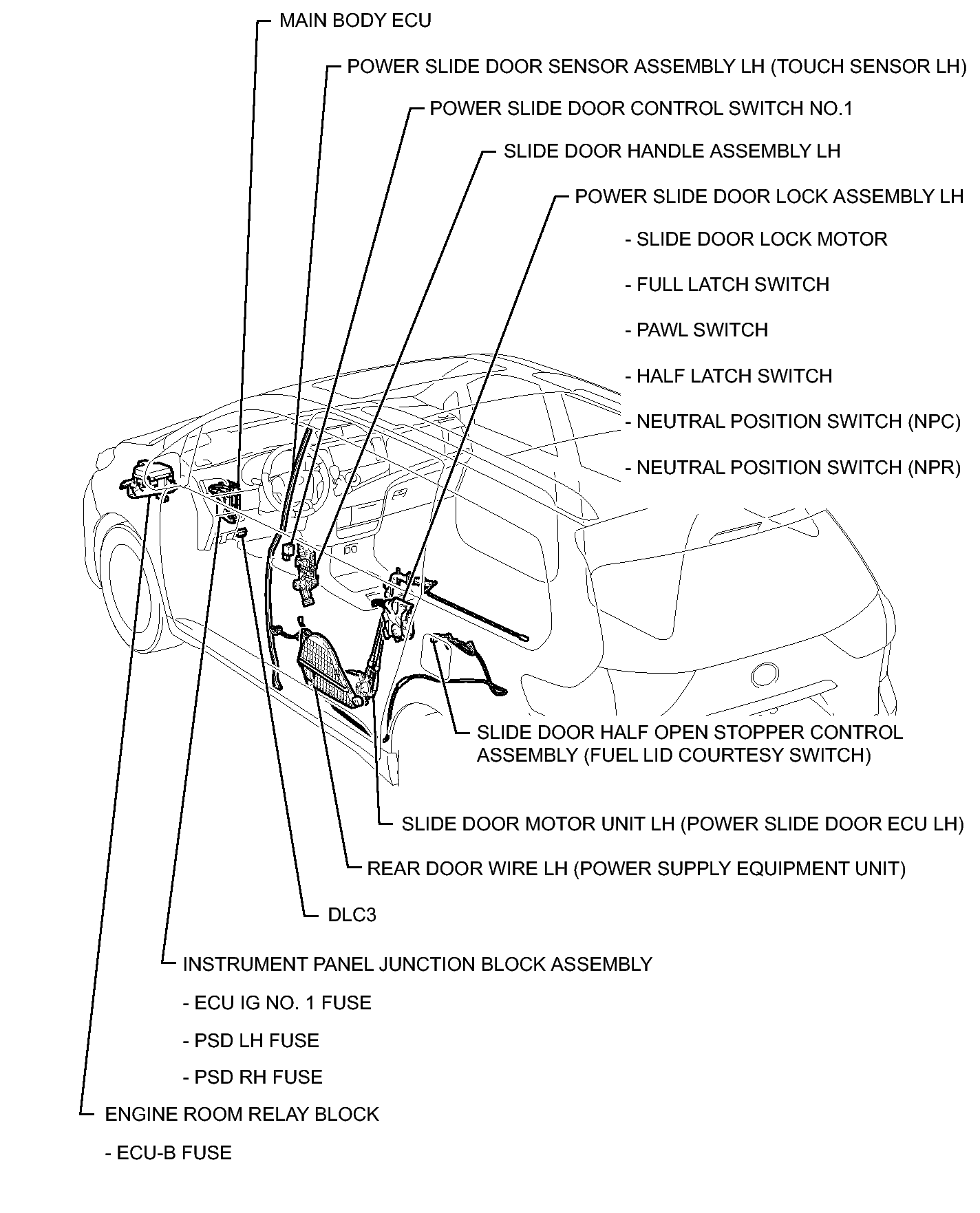

Fig 1: Power Slide Door System Components Location (2 Of 3)
GTY297377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

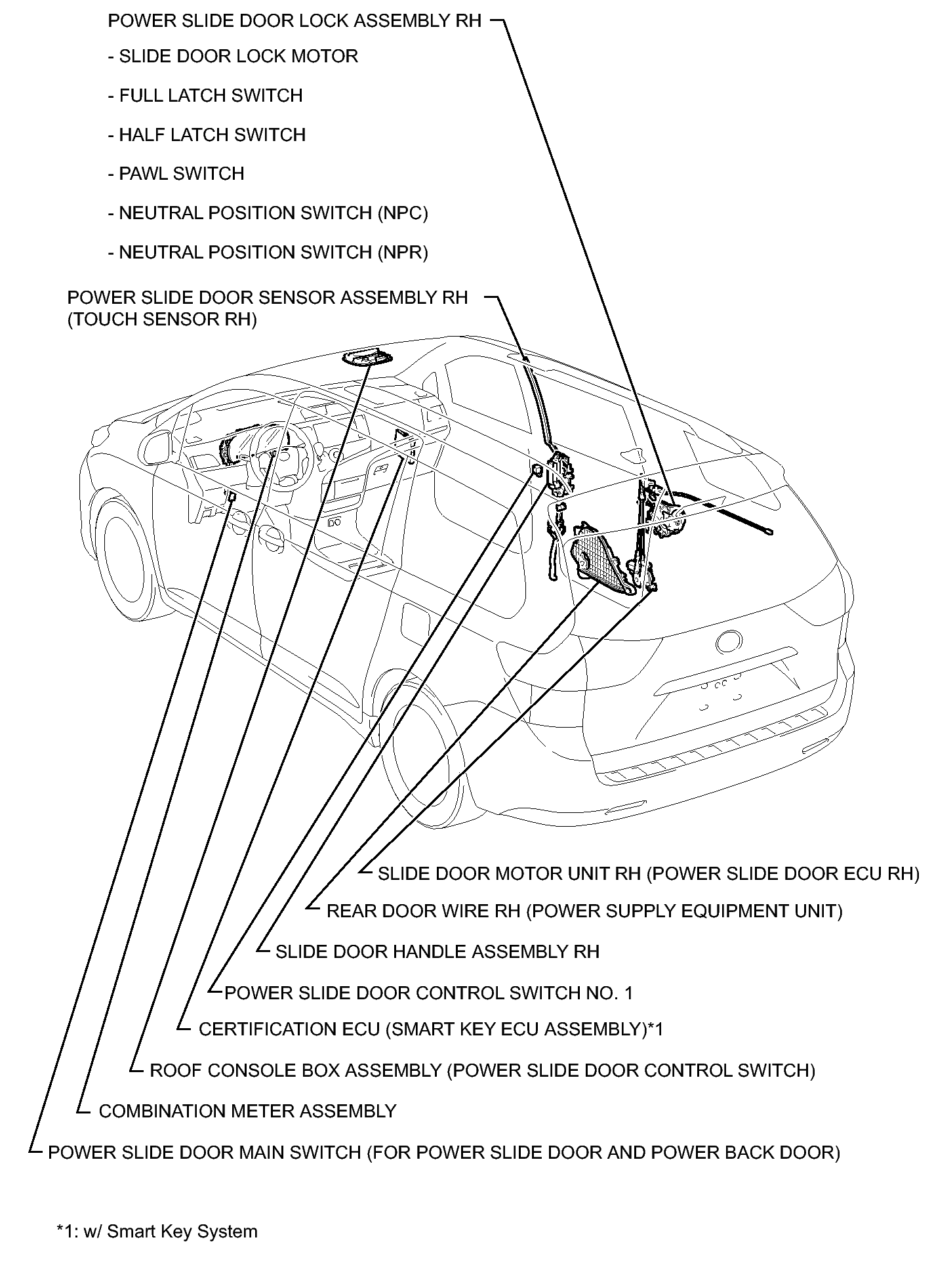

Fig 1: Power Slide Door System Components Location (3 Of 3)
GTY306134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
