Parts Location: Illustration

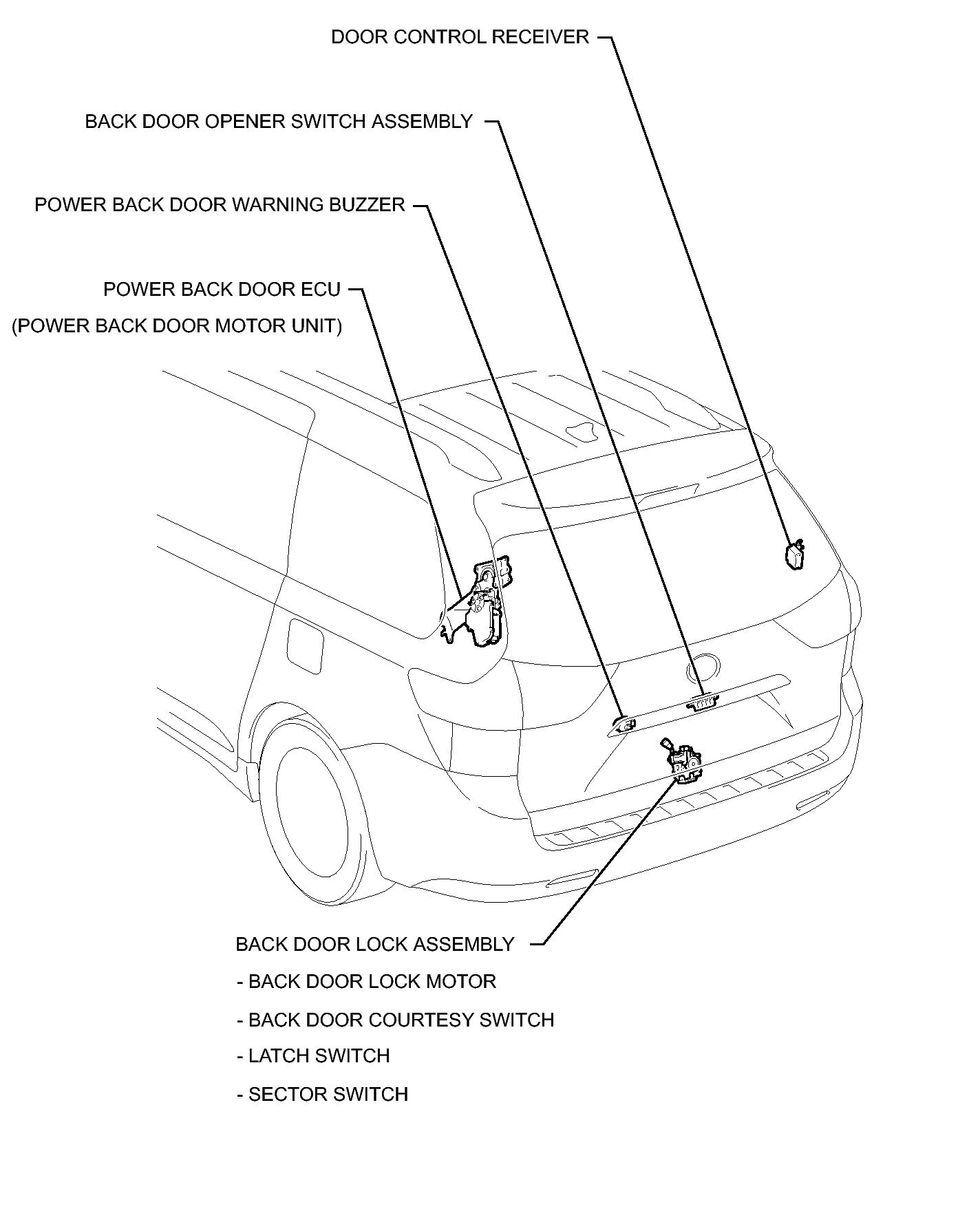

Fig 1: Power Back Door System Components Location (1 Of 3)
GTY303229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

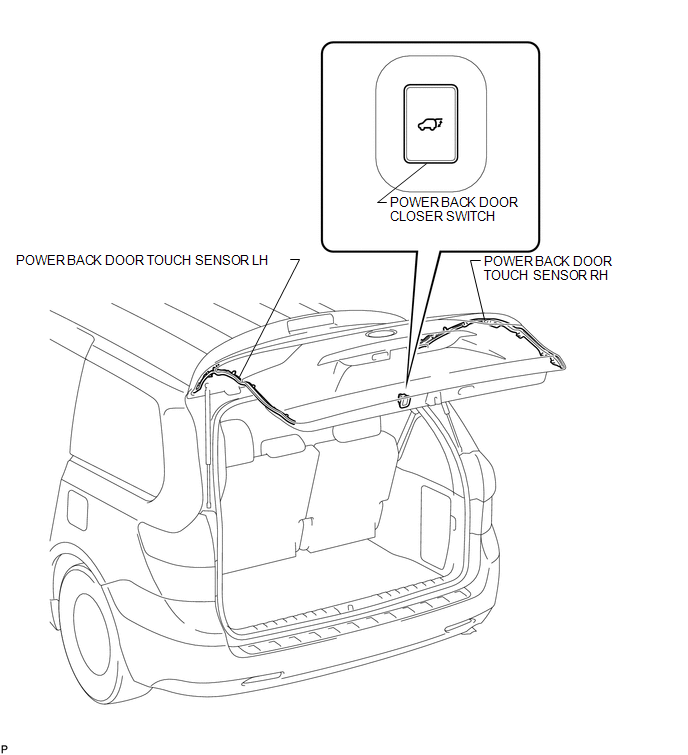

Fig 1: Power Back Door System Components Location (2 Of 3)
GTY305292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

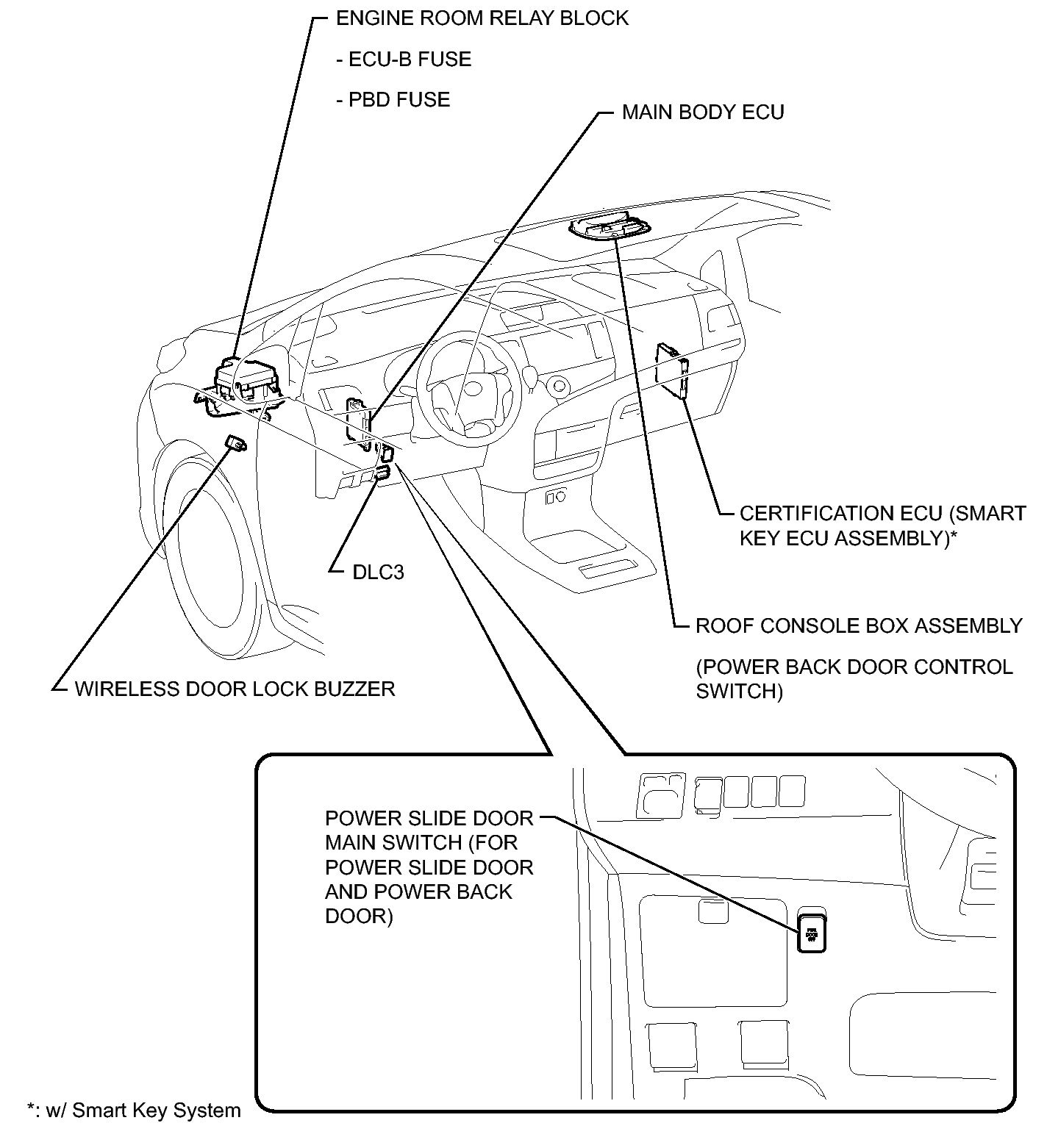

Fig 1: Power Back Door System Components Location (3 Of 3)
GTY295364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
