Parts Location: Illustration

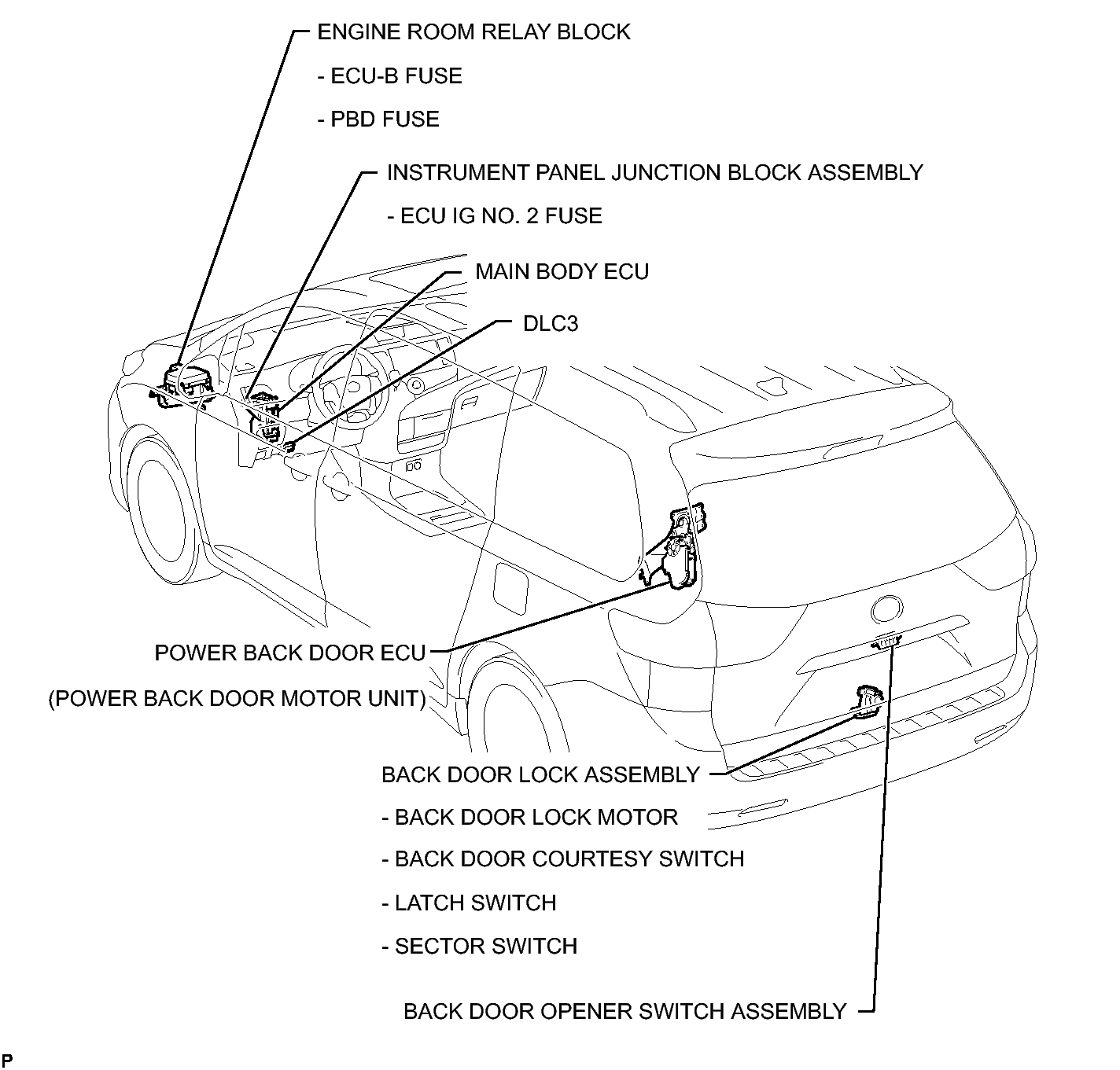

Fig 1: Back Door Closer System Components Location

GTY299328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
