DTC B2251: Back Door Closer Switch Malfunction: Wiring Diagram

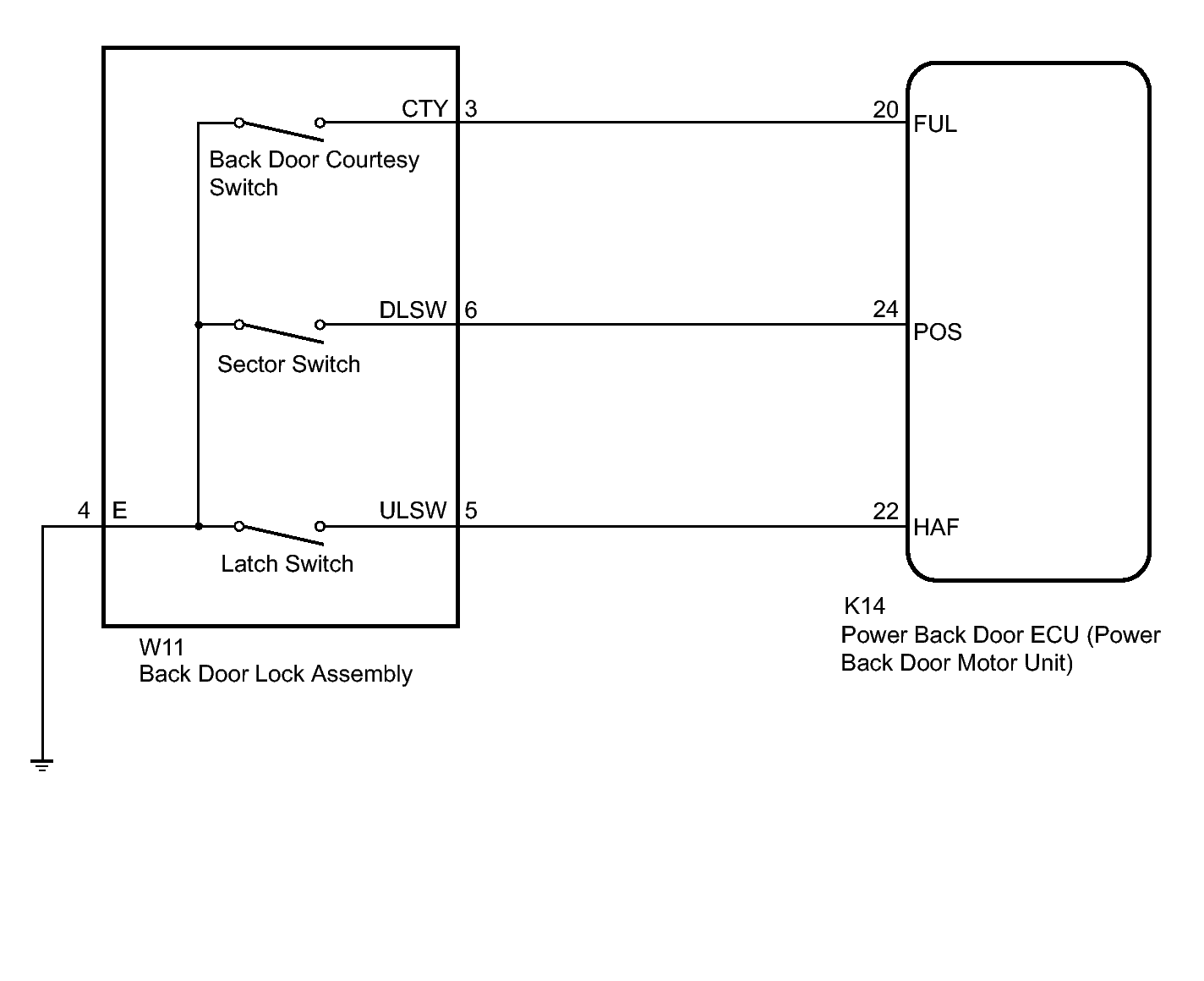

Fig 1: Back Door Lock Assembly Circuit - Wiring Diagram

GTY295120

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
