Power Back Door Warning Buzzer: Removal: Removal

  1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY  See step  2
  2. REMOVE POWER BACK DOOR WARNING BUZZER
    1. Disconnect the connector.

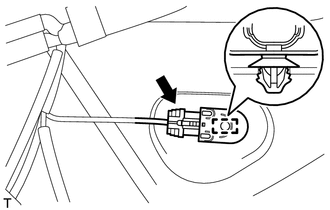

      Fig 1: Identifying Power Back Door Warning Buzzer, Connector & Clamp
      GTY302413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp and remove the power back door warning buzzer.
