(Door / Hatch) (Service Information): Hood: Disassembly: Disassembly

REMOVE HOOD INSULATOR
1. Remove the 5 clips.

  Fig 1: Identifying Hood Insulator Clips & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 guides and remove the hood insulator.
REMOVE HOOD TO RADIATOR SUPPORT SEAL
1. Disengage the 6 clips and remove the hood to radiator support seal.

  Fig 2: Identifying Hood To Radiator Support Seal & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WASHER NOZZLE SUB-ASSEMBLY
1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and separate the washer nozzle as shown in the illustration.

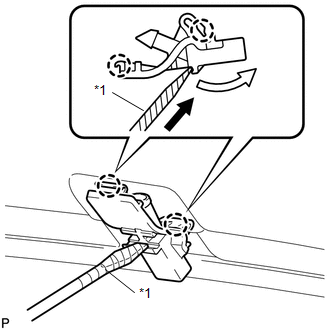

  Fig 3: Disengaging Washer Nozzle Sub-Assembly Claws Using A Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protective Tape

  NOTE:
  Be careful not to damage the windshield.
2. Disconnect the washer nozzle from the washer hose.
  NOTE:
  Washer nozzles cannot be reused.
REMOVE WINDSHIELD WASHER HOSE
1. Disengage the 5 clips and disconnect the washer hose.

  Fig 4: Remove/Install Windshield Washer Hose & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
