Front Door: Components: Illustration

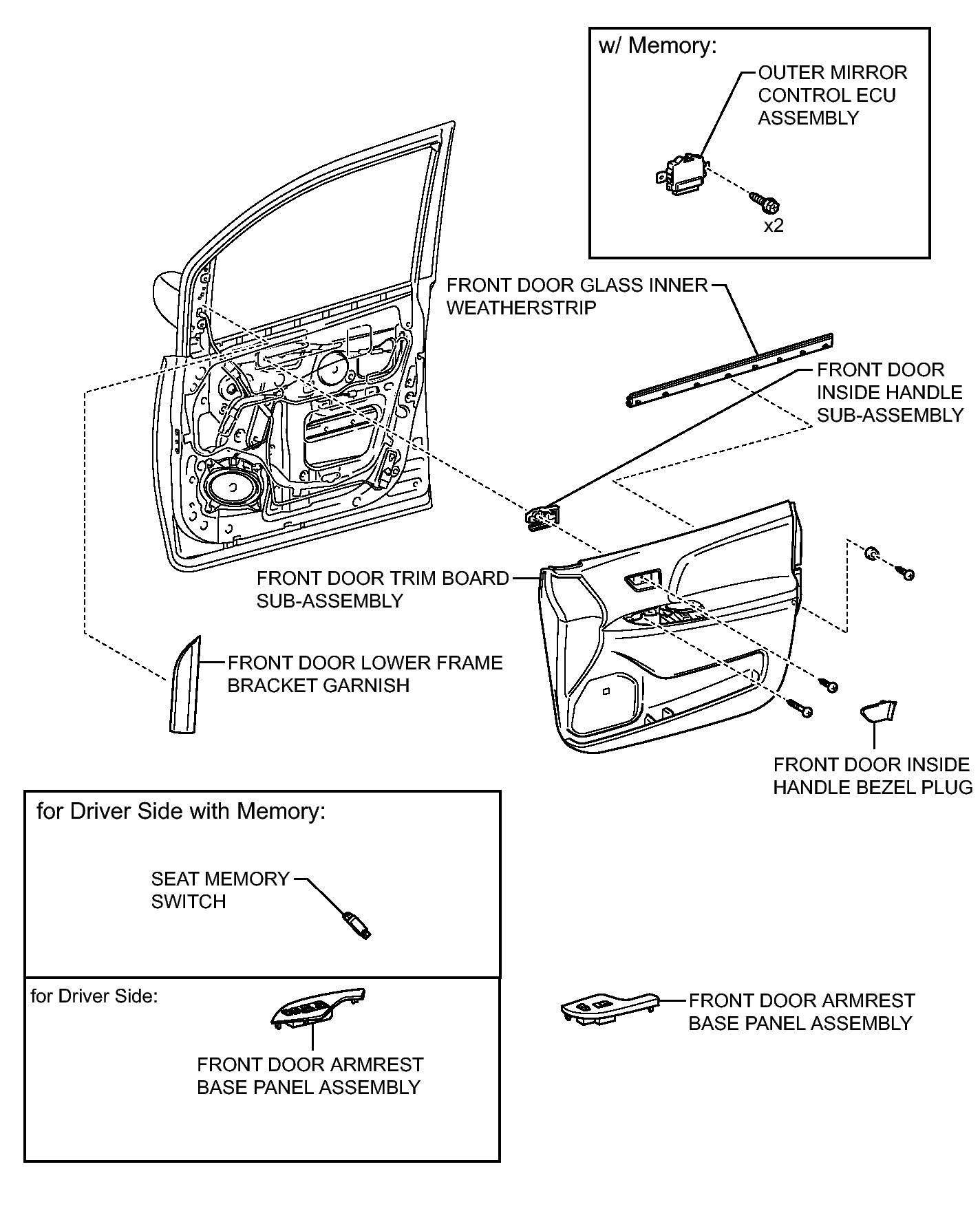

Fig 1: Front Door Replacement Components (1 of 4)
GTY302715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

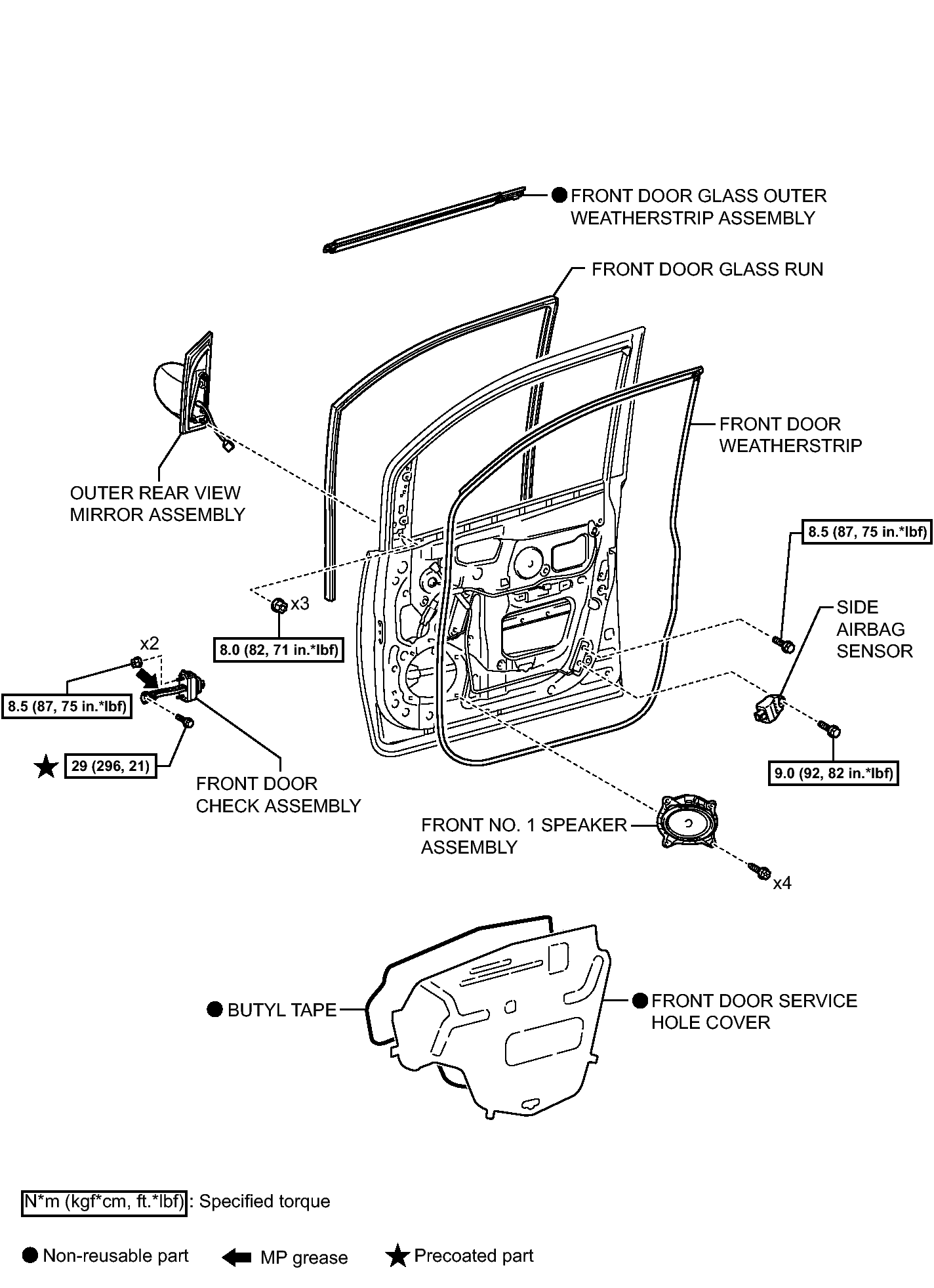

Fig 1: Front Door Replacement Components With Torque Specifications (2 Of 4)
GTY295313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

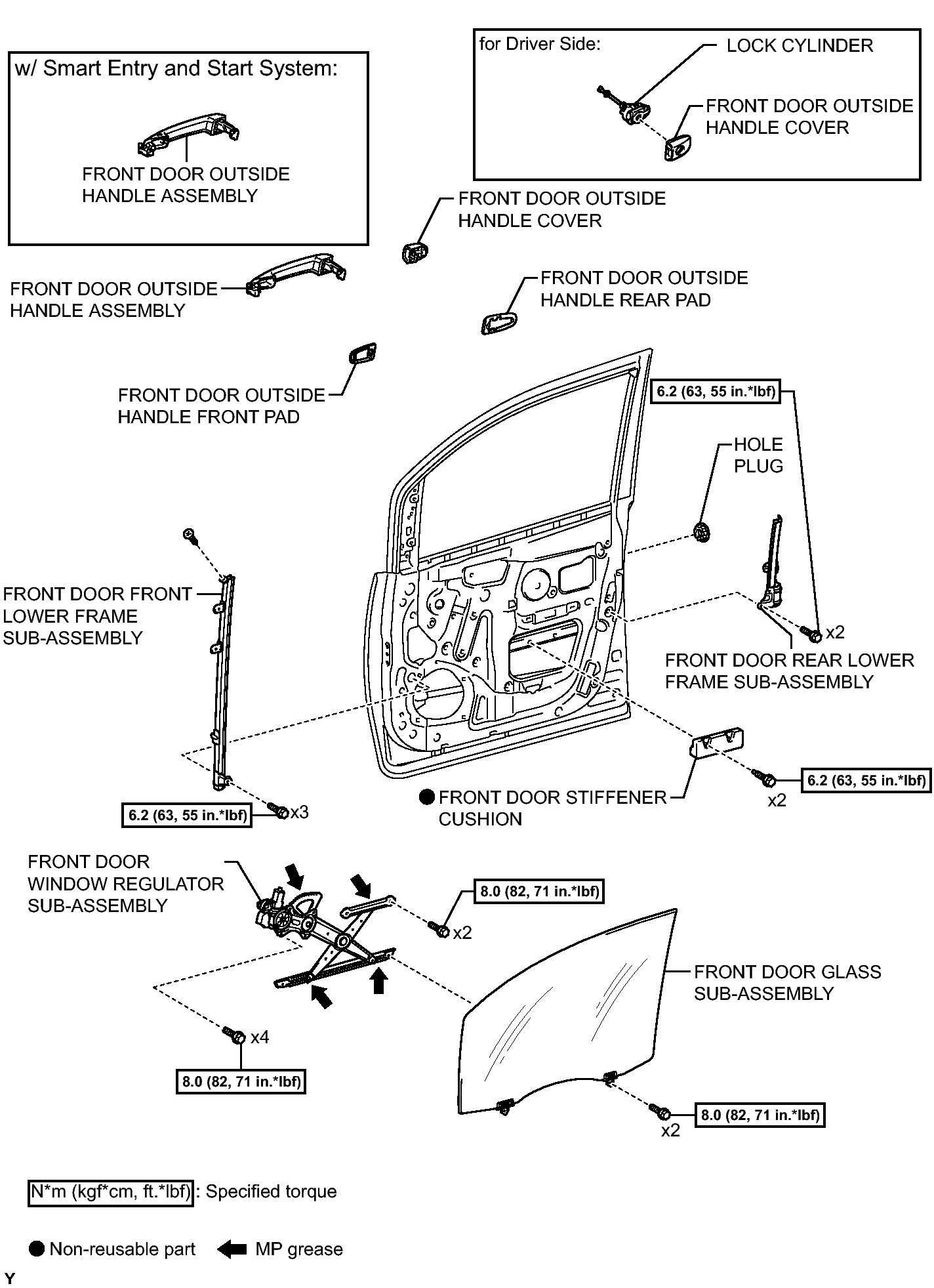

Fig 1: Front Door Replacement Components With Torque Specifications (3 Of 4)
GTY306085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

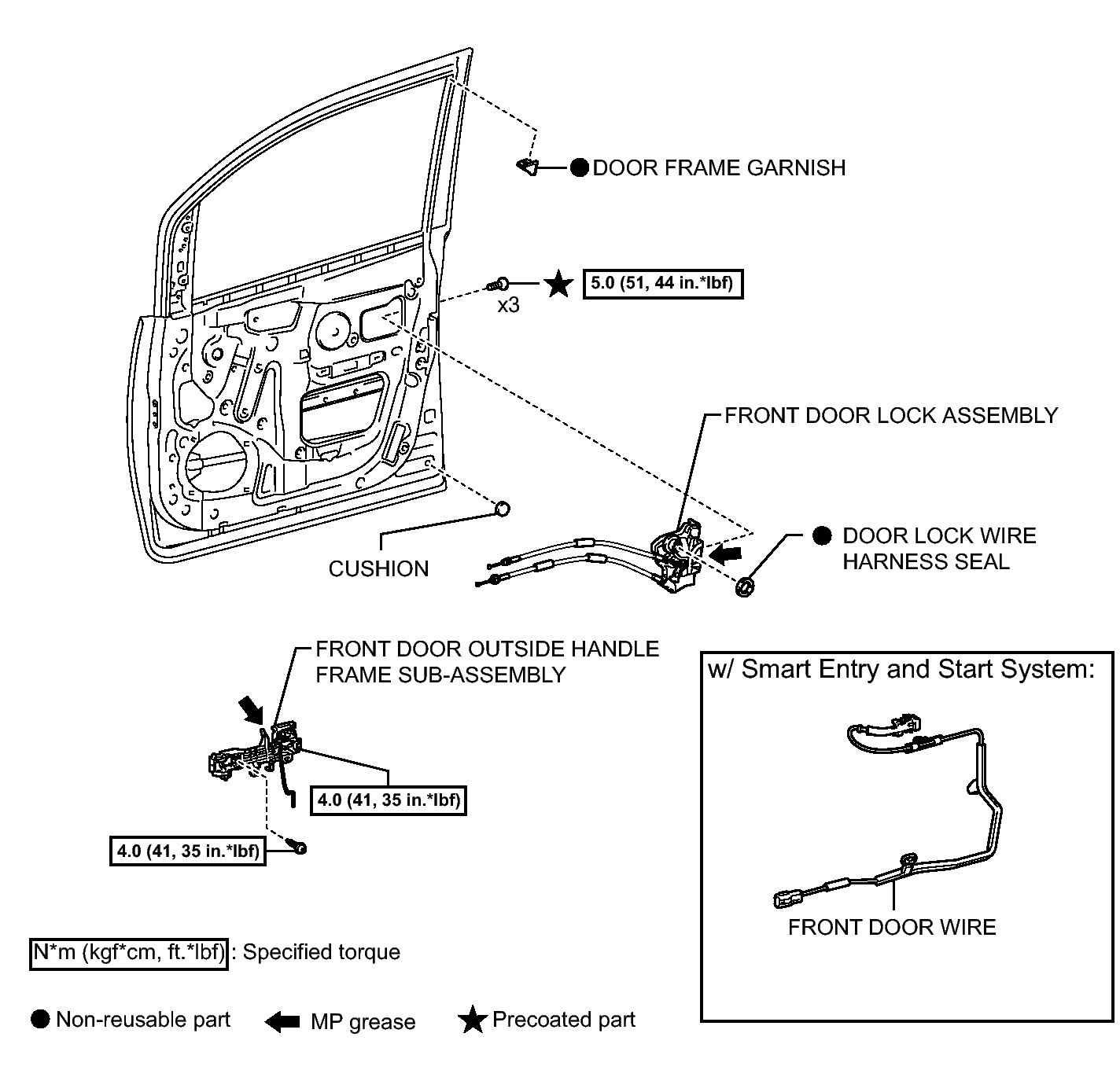

Fig 1: Front Door Replacement Components With Torque Specifications (4 Of 4)
GTY295945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
