Back Door: Components: Illustration

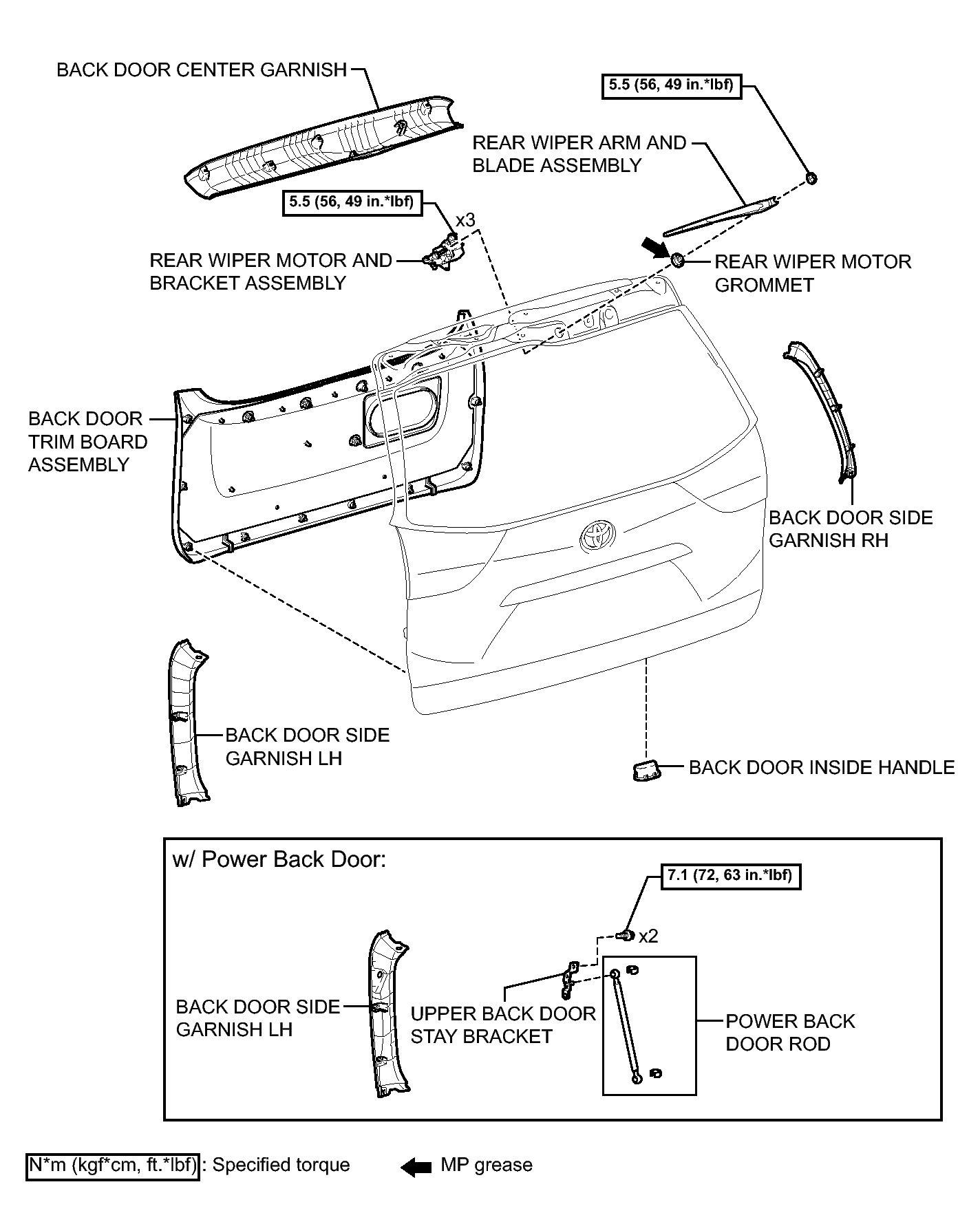

Fig 1: Back Door Replacement Components With Torque Specifications (1 Of 3)
GTY304556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

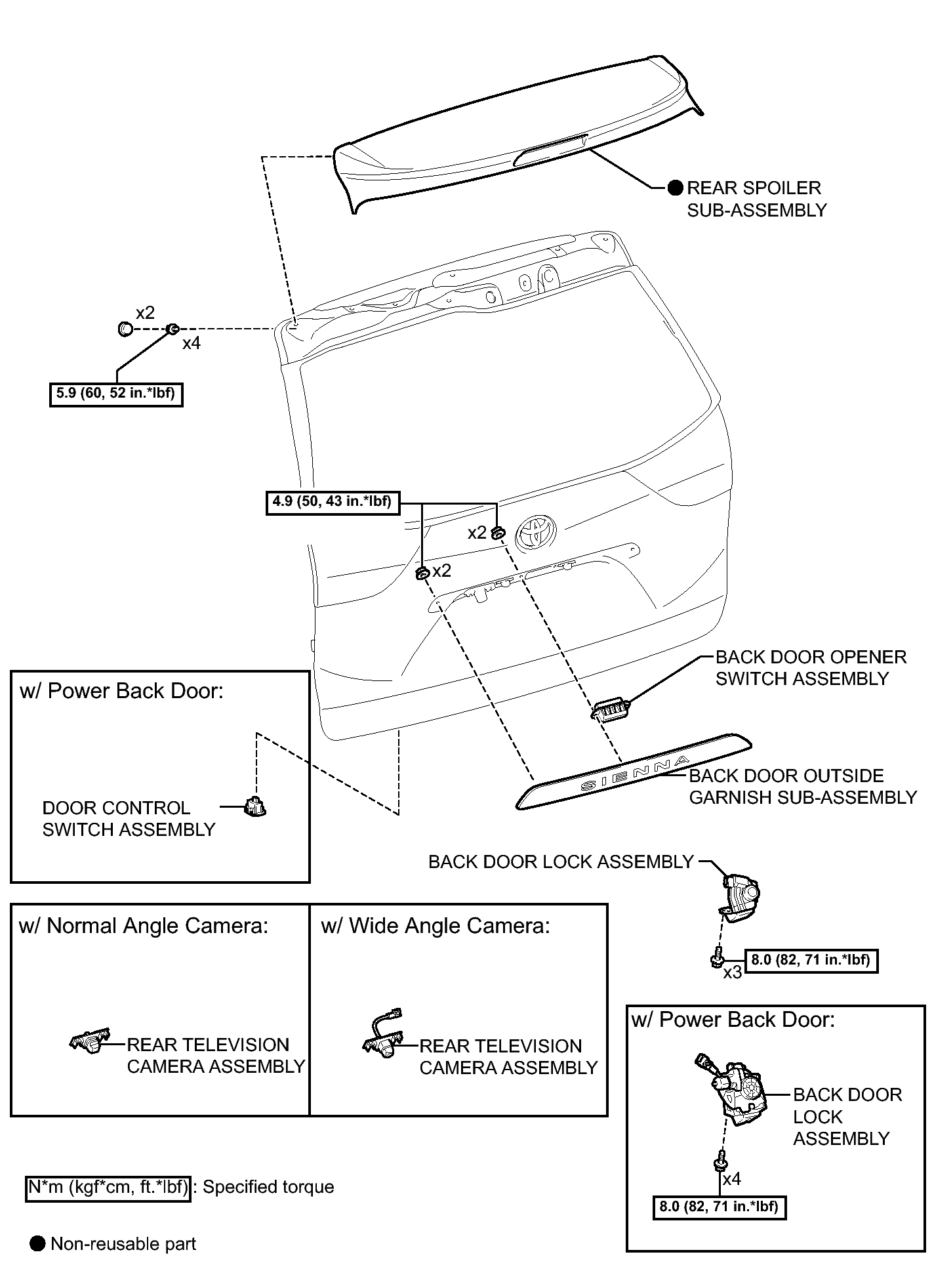

Fig 1: Back Door Replacement Components With Torque Specifications (2 Of 3)
GTY302486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

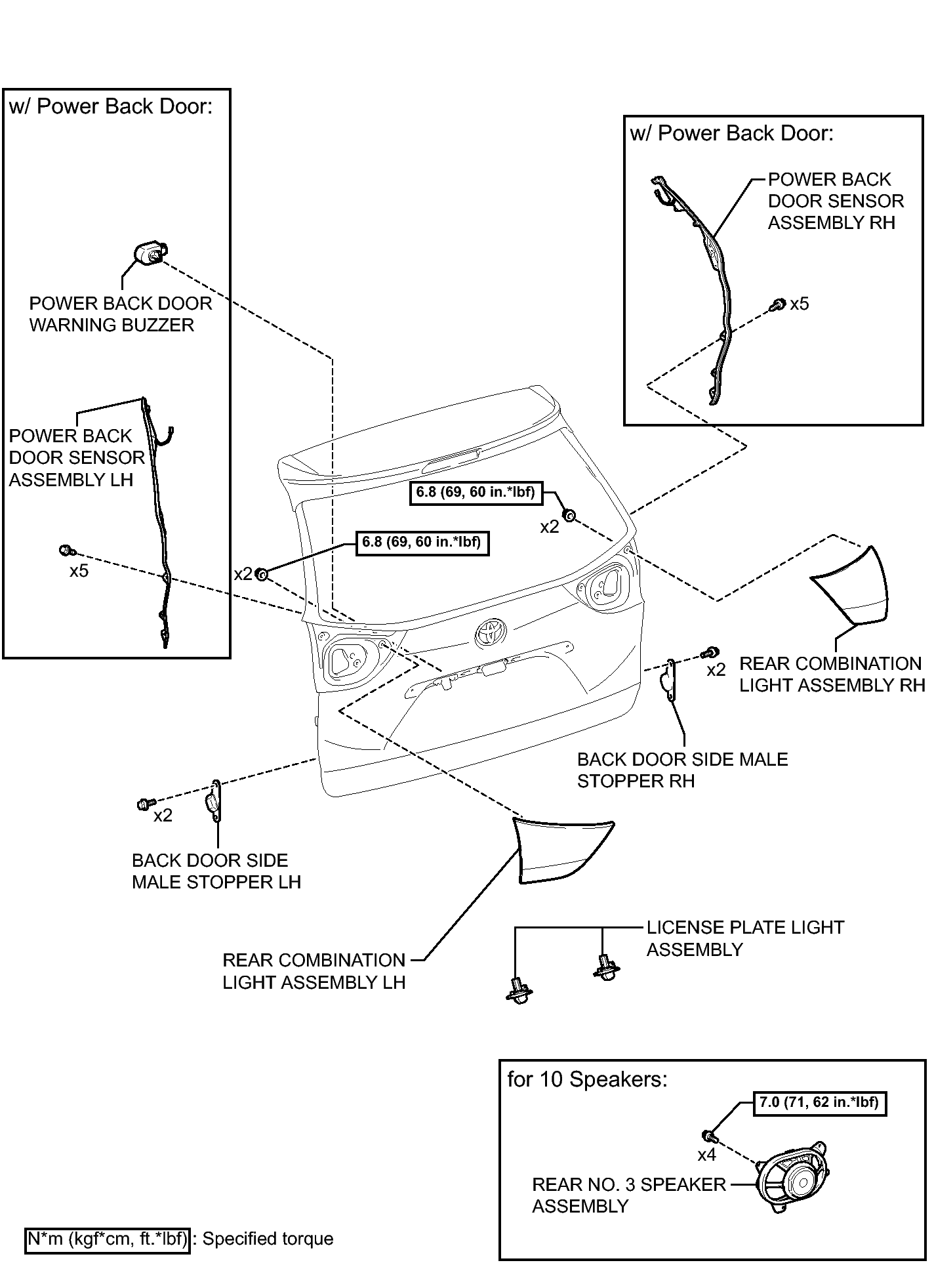

Fig 1: Back Door Replacement Components With Torque Specifications (3 Of 3)
GTY299311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
