Parts Location: Illustration

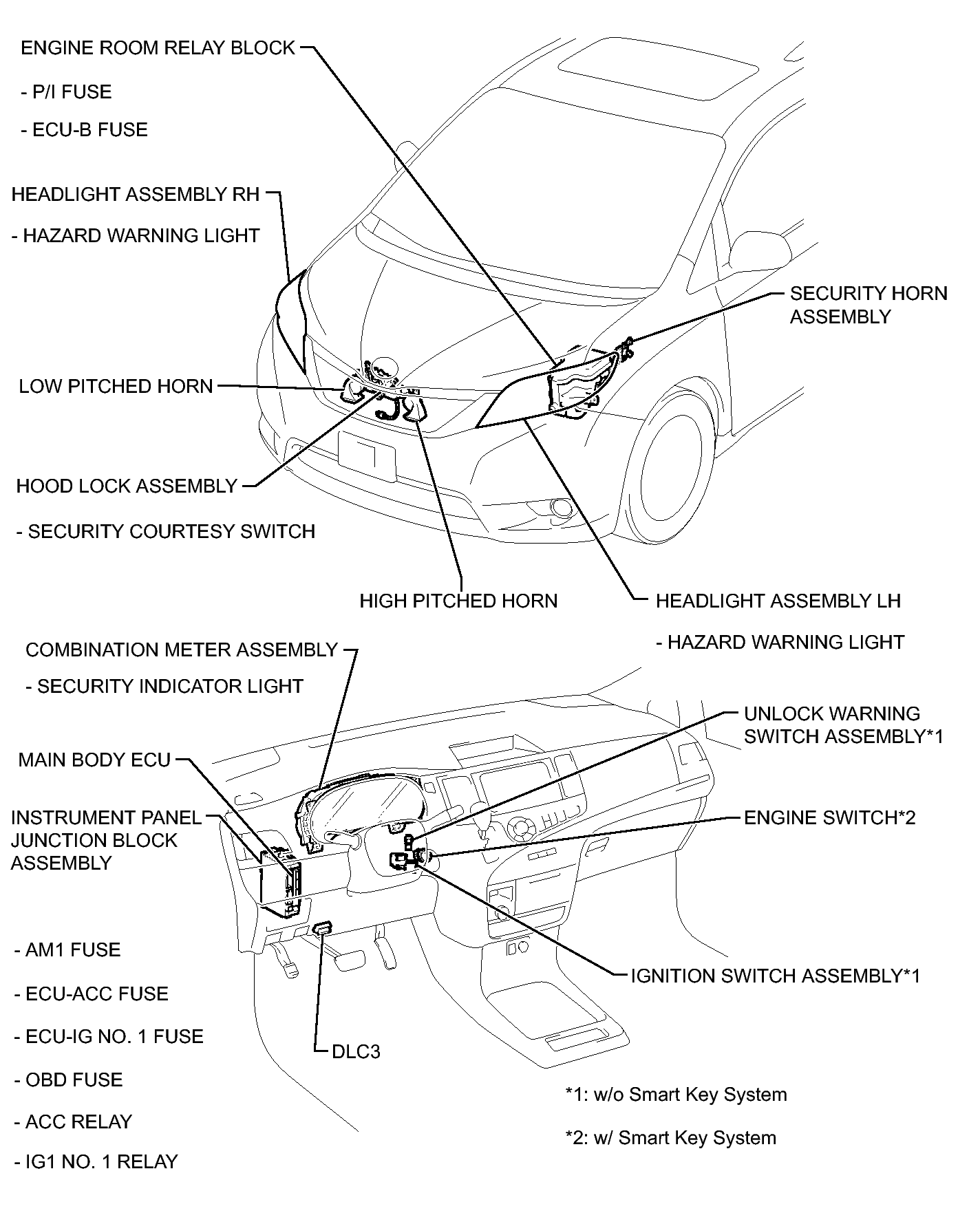

Fig 1: Theft Deterrent System Components Location (1 Of 2)
GTY300242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

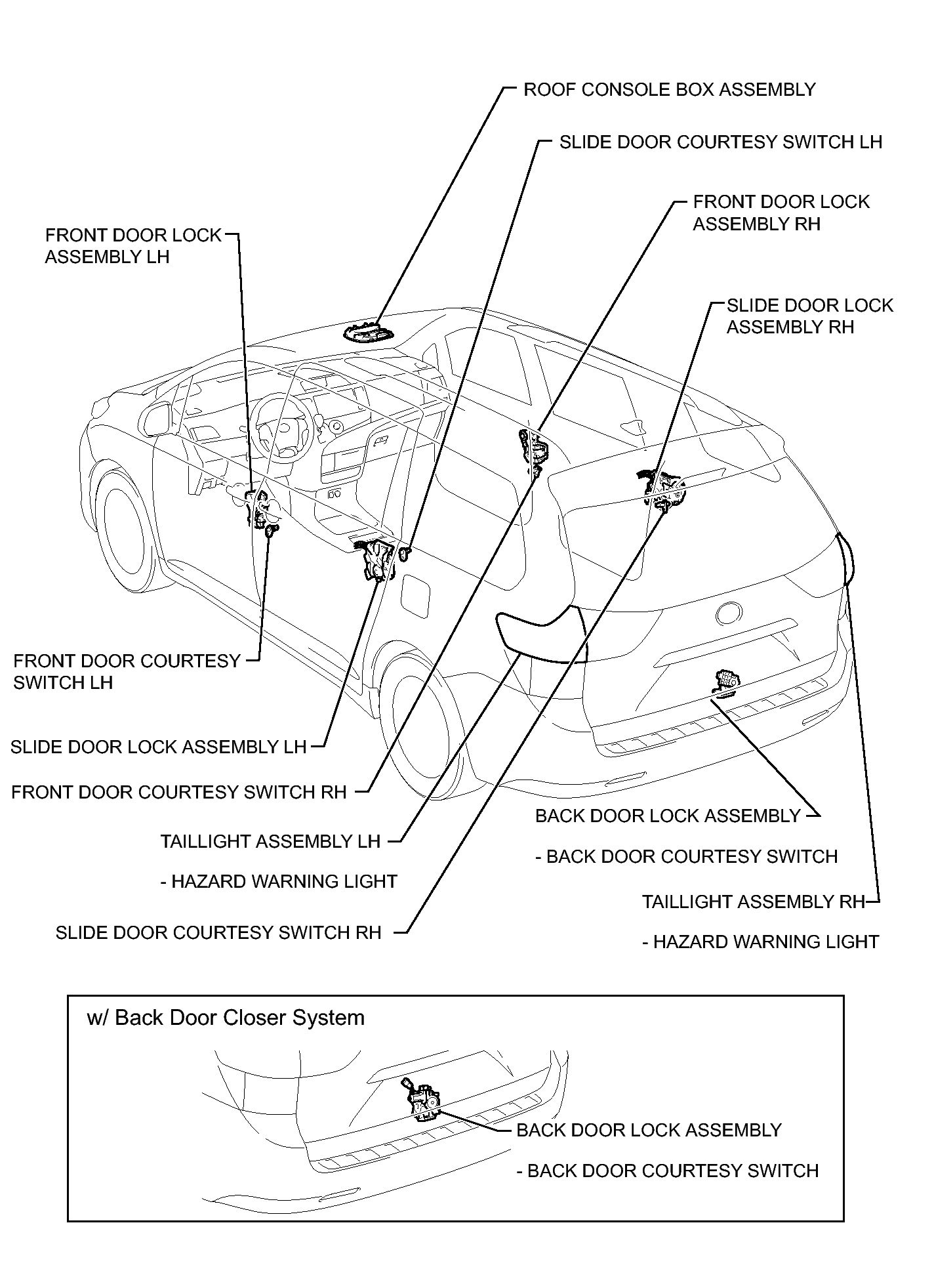

Fig 1: Theft Deterrent System Components Location (2 Of 2)
GTY297092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
