Quarter Window Glass: Components: Illustration

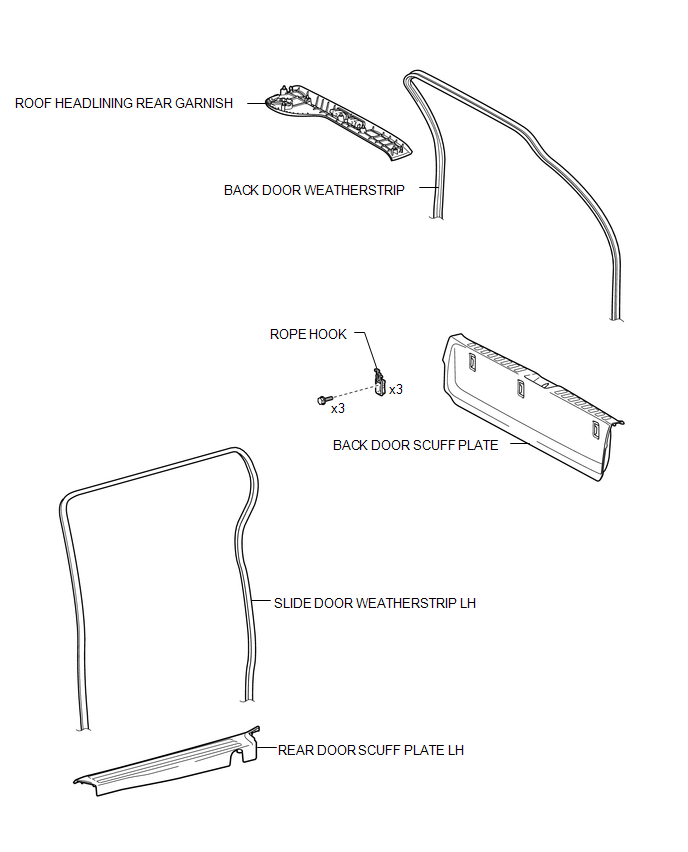

Fig 1: Quarter Window Glass Replacement Components (1 of 3)
GTY299620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

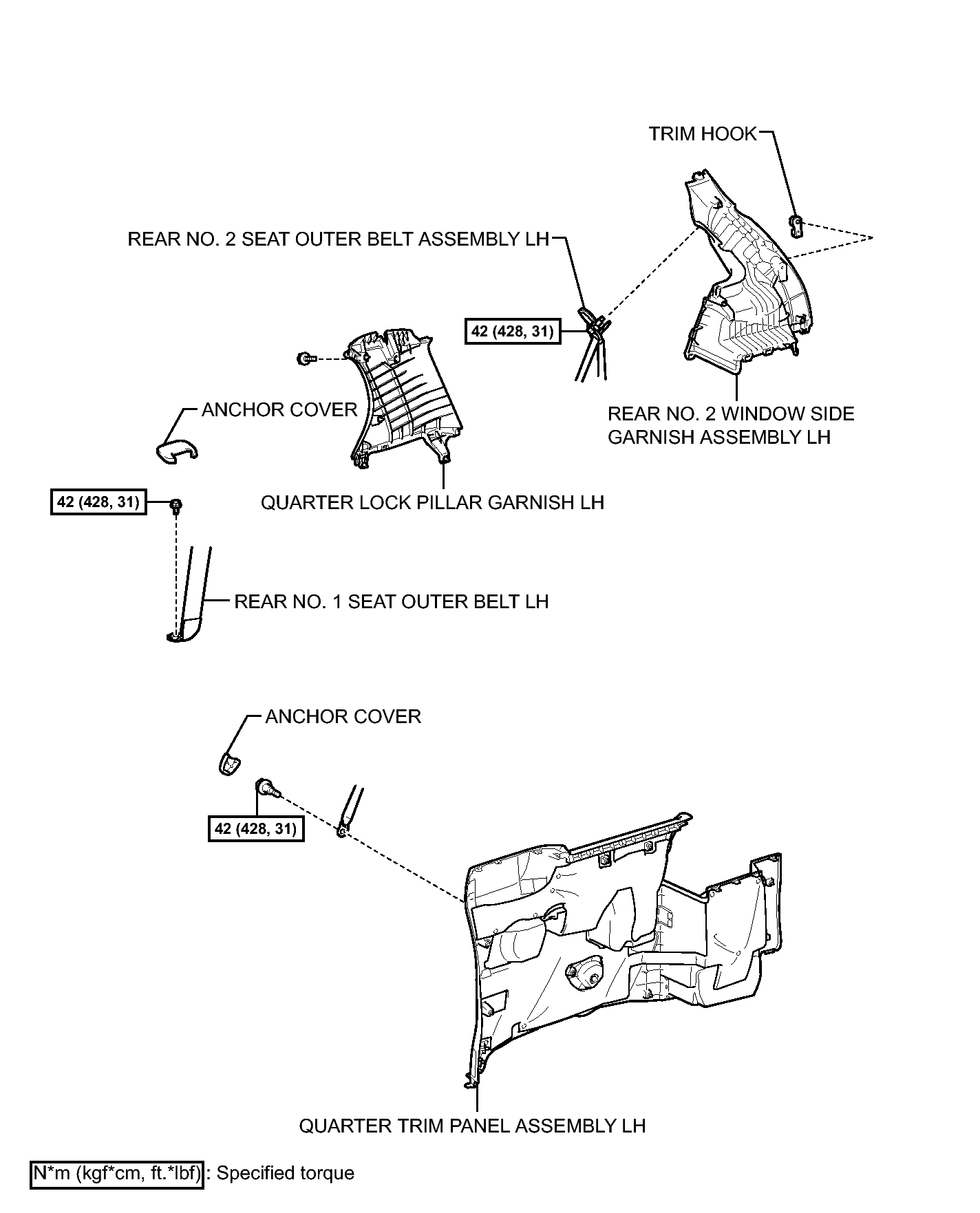

Fig 1: Quarter Window Glass Replacement Components With Torque Specifications (2 of 3)
GTY302525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

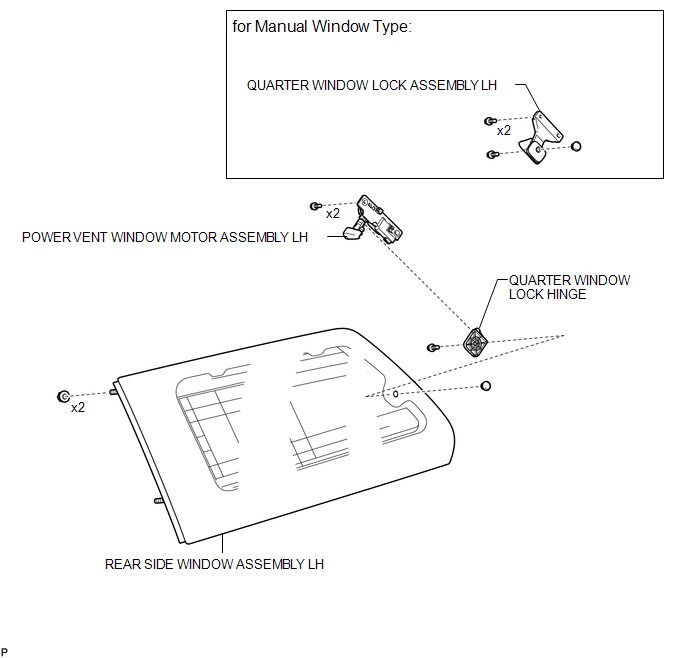

Fig 1: Quarter Window Glass Replacement Components (3 of 3)
GTY297146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
