Parts Location: Illustration

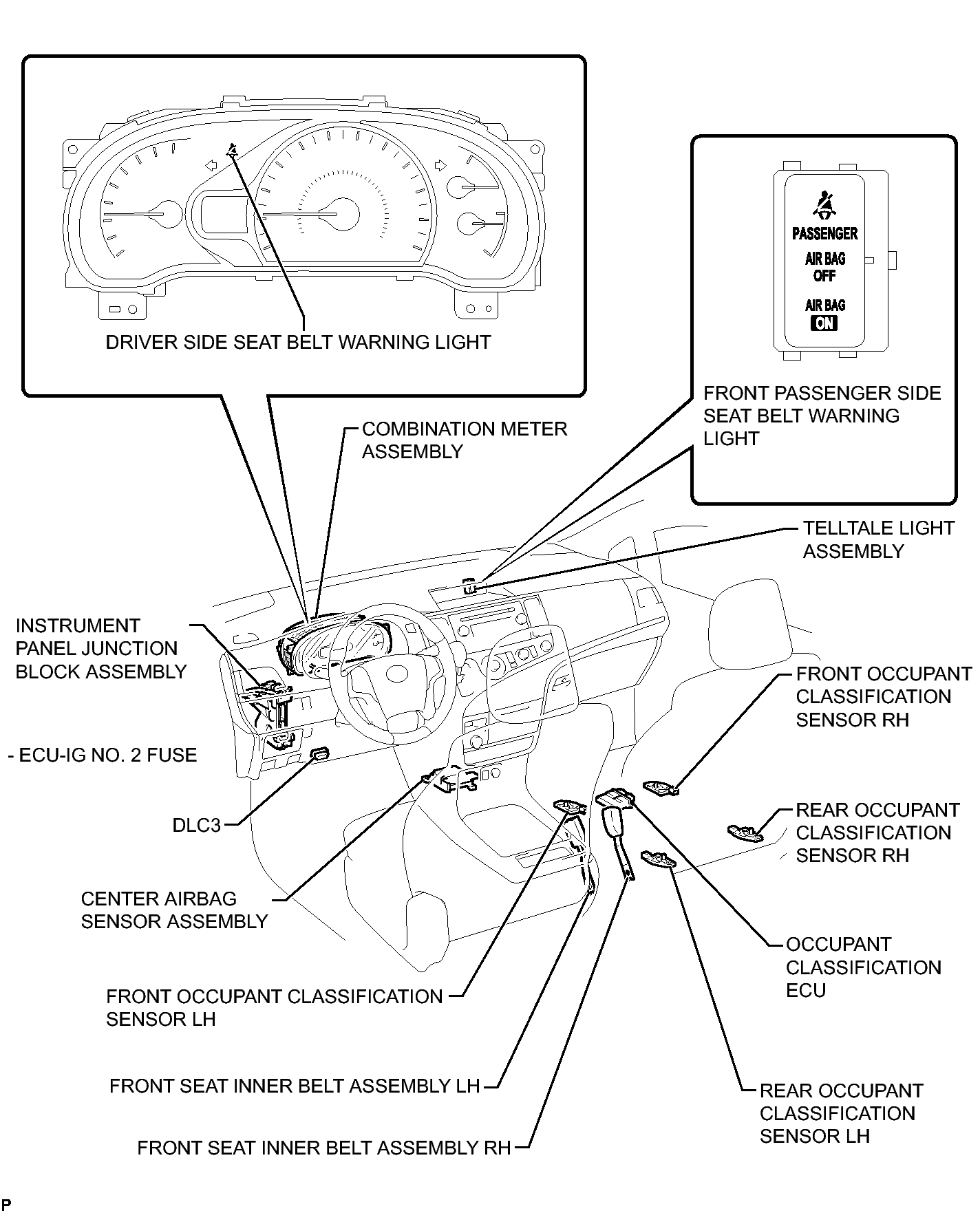

Fig 1: Seat Belt Warning System Components Location

GTY298318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
