Seat Rail: Components: Illustration

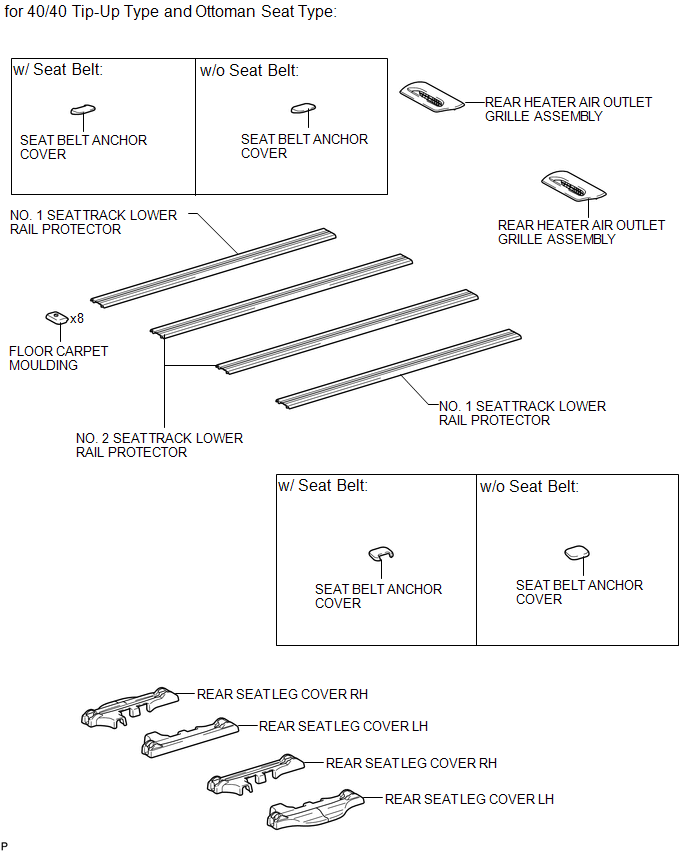

Fig 1: Seat Rail Replacement Components (1 Of 4)
GTY300108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

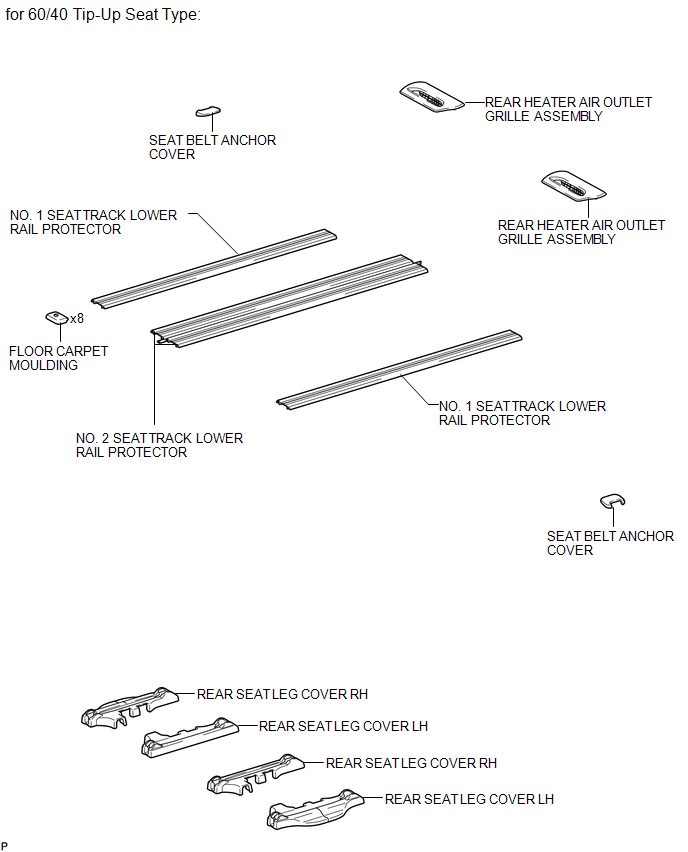

Fig 1: Seat Rail Replacement Components (2 Of 4)
GTY296243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

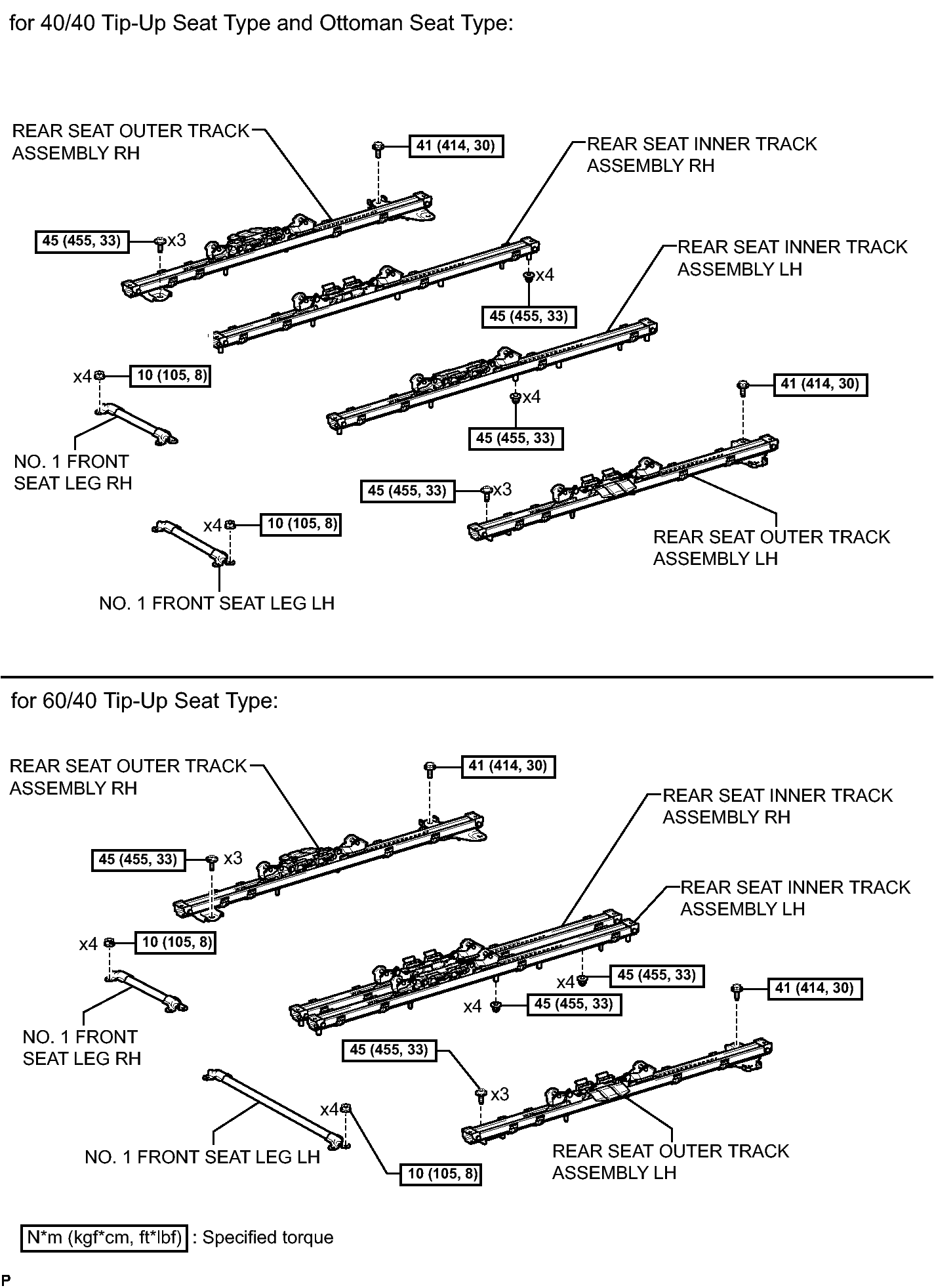

Fig 1: Seat Rail Replacement Components With Torque Specifications (3 Of 4)
GTY298678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

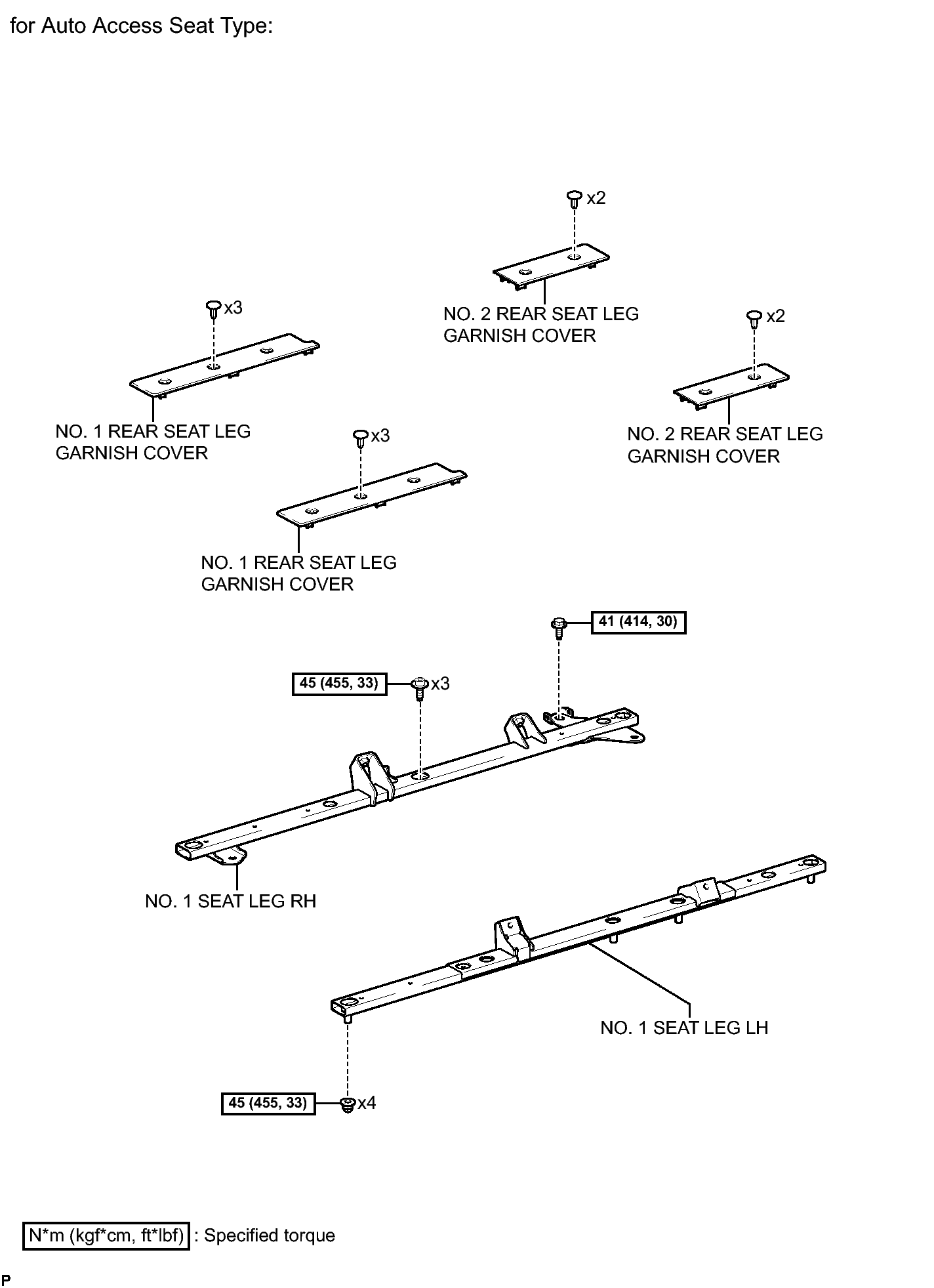

Fig 1: Seat Rail Replacement Components With Torque Specifications (4 Of 4)
GTY300996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
