REAR NO. 1 SEAT ASSEMBLY (for Ottoman): Reassembly: Reassembly

WARNING:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:



  1. INSTALL REAR SEAT CUSHION LOCK ASSEMBLY LH
    1. for Rear Side:
      1. Install the rear seat cushion lock with the 2 bolts.

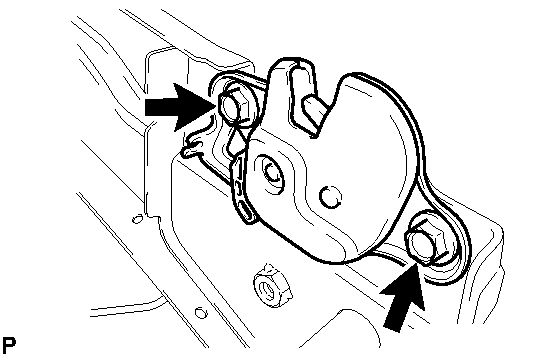

        Fig 1: Identifying LH Rear Seat Cushion Lock & Bolts
        GTY302062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    2. for Front Side:
      1. Install the rear seat cushion lock with the 2 nuts.

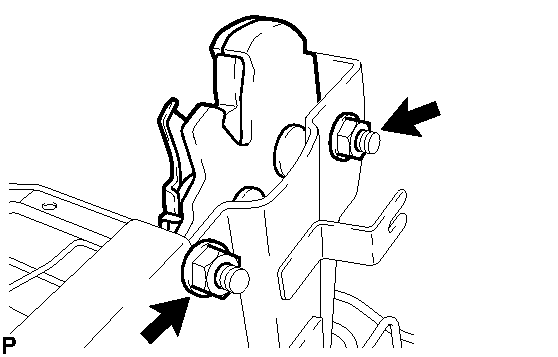

        Fig 2: Identifying LH Rear Seat Cushion Lock & Nuts
        GTY302176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf)

  2. INSTALL NO. 1 SEAT CUSHION COVER ASSEMBLY
    1. Using hog ring pliers, install the No. 1 seat cushion cover assembly with 12 new hog rings.

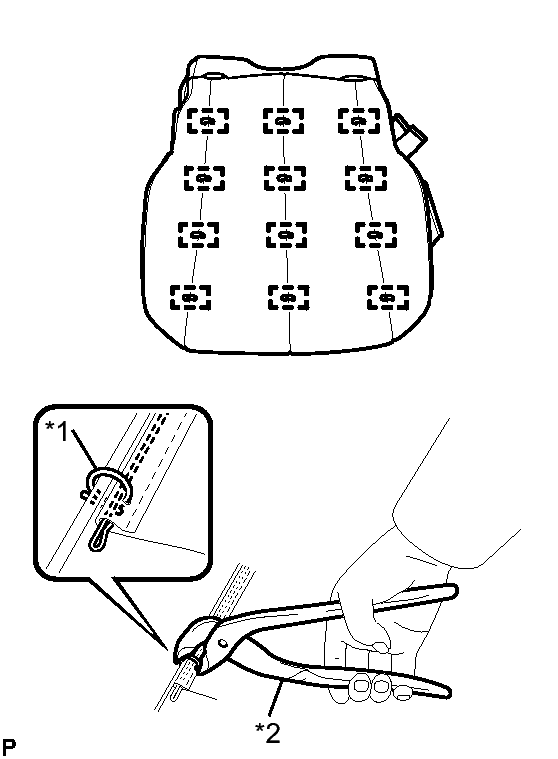

      Fig 3: Installing No. 1 Seat Cushion Cover Hog Rings Using Hog Ring Pliers
      GTY303288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 New Hog Ring
      *2 Hog Ring Pliers
      NOTE:
      • Do not soil or scratch the front cushion cover.
      • When installing hog rings, minimize wrinkles as much as possible.
    2. Engage the 15 hooks and install the seat cushion cover and pad.

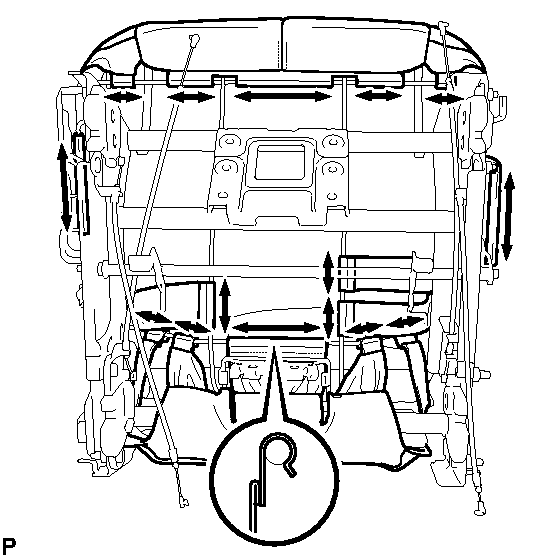

      Fig 4: Identifying No. 1 Seat Cushion Cover Assembly Hooks
      GTY300203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR SEAT LOCK CONTROL LEVER
    1. Install the rear seat lock control lever with a new snap ring and pin.

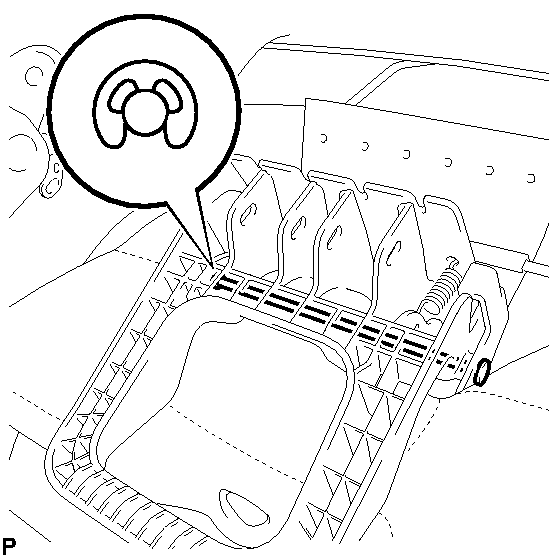

      Fig 5: Identifying Rear Seat Lock Control Lever Snap Ring & Pin
      GTY298556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 hooks and install the 2 springs.

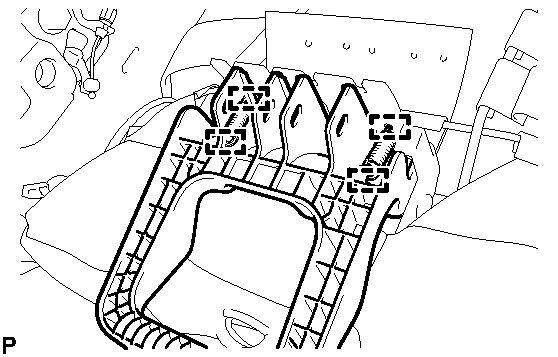

      Fig 6: Identifying Rear Seat Lock Control Lever, Springs & Hooks
      GTY299883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR SEAT LOCK CONTROL CABLE
    1. Install the 4 rear seat lock control cable.

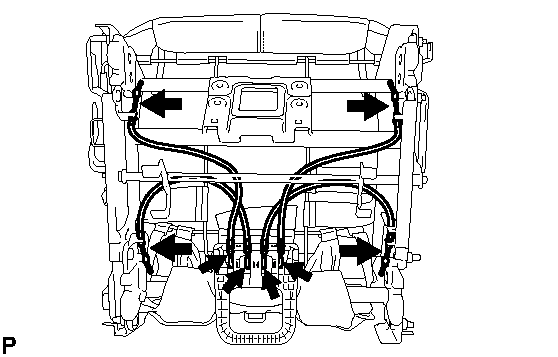

      Fig 7: Identifying Rear Seat Lock Control Cables
      GTY301979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR SEATBACK SPRING DAMPER
    1. Install the rear seatback spring damper with the 2 nuts.

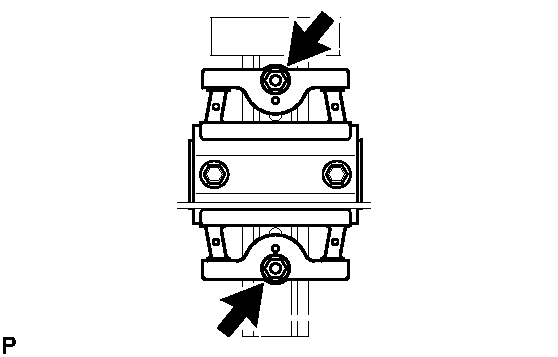

      Fig 8: Identifying Rear Seatback Spring Damper & Nuts
      GTY299594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  6. INSTALL REAR NO. 1 SEAT OUTER BELT ASSEMBLY  . Refer to INSTALLATION - Step 1
  7. INSTALL REAR SEAT SHOULDER BELT HOLE COVER
    1. Engage the 3 claws and install the rear seat shoulder belt hole cover.

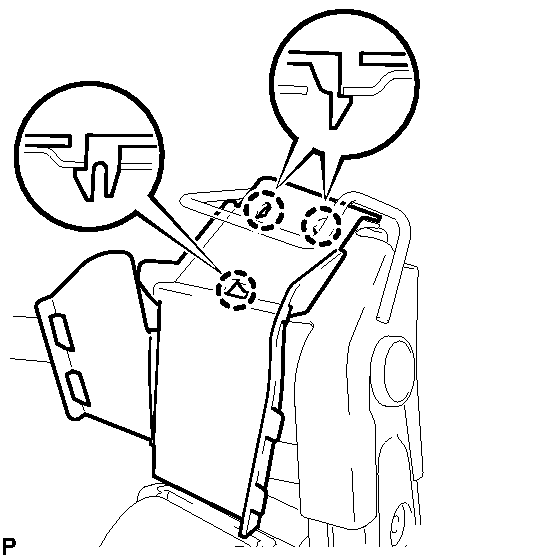

      Fig 9: Identifying Rear Seat Shoulder Belt Hole Cover & Claws
      GTY304882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws.

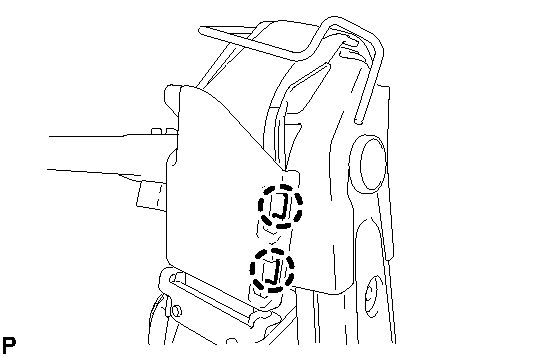

      Fig 10: Identifying Rear Seat Shoulder Belt Hole Cover Claws
      GTY300027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 SEATBACK COVER ASSEMBLY RH
    1. Using hog ring pliers, install the No. 1 seatback cover assembly with 4 new hog rings.

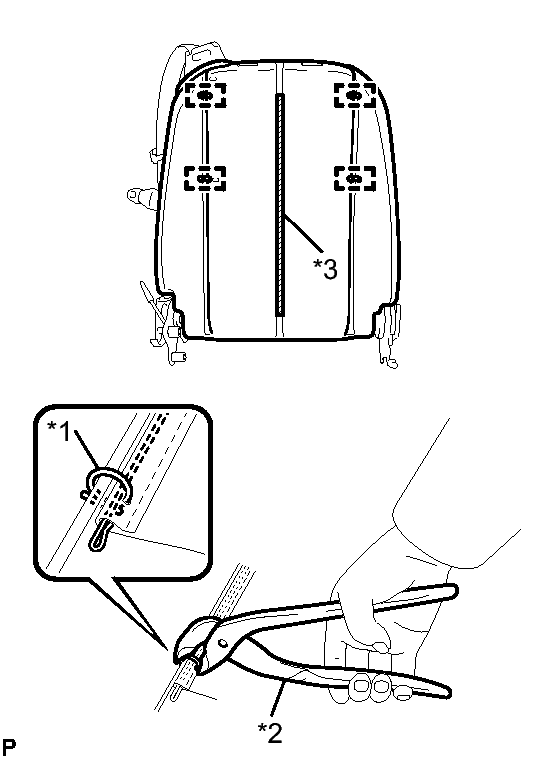

      Fig 11: Installing RH No. 1 Seatback Cover Hog Rings Using Hog Ring Pliers
      GTY298688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 New Hog Ring
      *2 Hog Ring Pliers
      *3 Fastening Tape
      NOTE:
      • Do not soil or scratch the front seatback cover.
      • When installing hog rings, minimize wrinkles as much as possible.
    2. Engage the fastening tape.
  9. INSTALL REAR SEAT HEADREST SUPPORT
    1. Using hog ring pliers, install the 3 new hog rings.

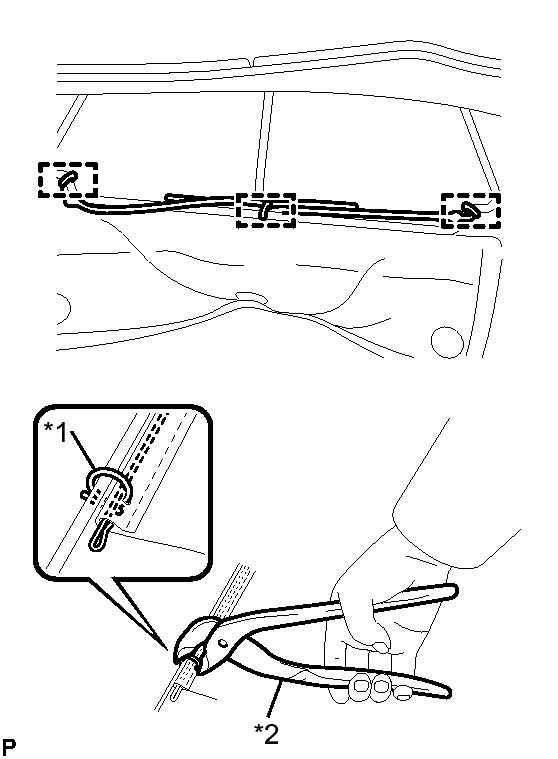

      Fig 12: Installing Rear Seat Headrest Support Hog Rings Using Hog Ring Pliers
      GTY303429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 New Hog Ring
      *2 Hog Ring Pliers
    2. Engage the hook.

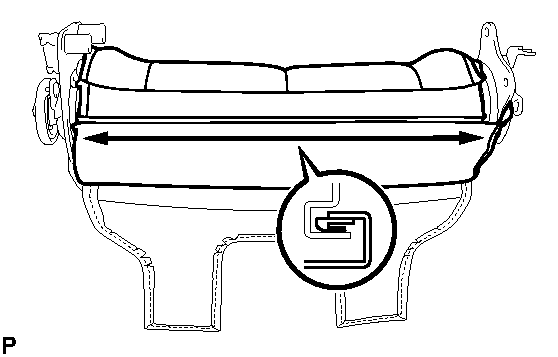

      Fig 13: Identifying Rear Seat Headrest Support Hook
      GTY303035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the protruding portion of the rear seat headrest supports with the installation grooves of the rear seatback frame.

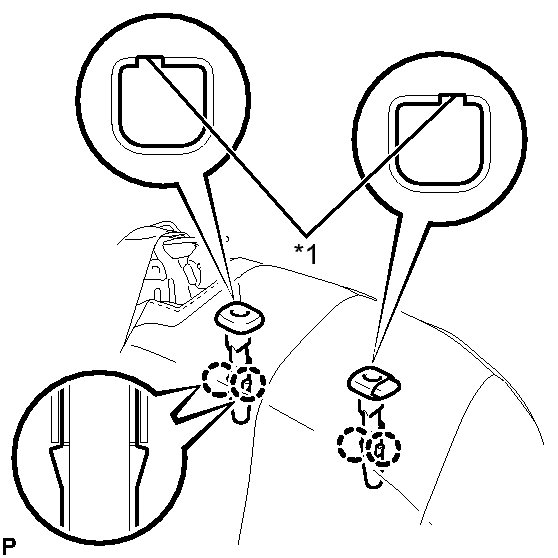

      Fig 14: Aligning Protruding Portions Of Rear Seat Headrest Support To Rear Seatback Frame Grooves
      GTY294865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protruding
    4. Engage the 2 claws and install the rear seat headrest supports.

      HINT:

      Use the same procedure for both sides.

  10. INSTALL REAR SEATBACK UPPER LOCK BEZEL
    1. Install the rear seatback upper lock bezel with the 2 screws.

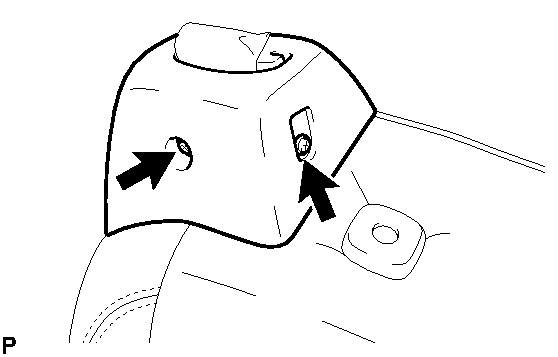

      Fig 15: Identifying Rear Seatback Upper Lock Bezel & Screws
      GTY302859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR SEAT SHOULDER BELT HOLE COVER
    1. Engage the 4 claws and install the rear seat shoulder belt hole cover.

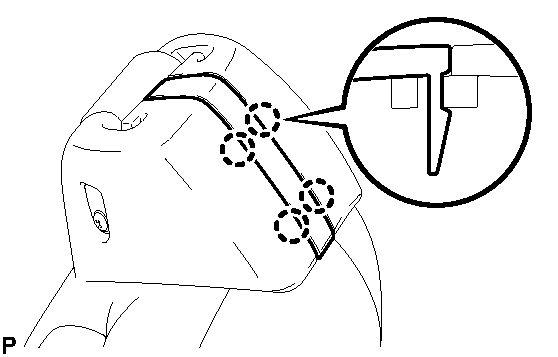

      Fig 16: Identifying Rear Seat Shoulder Belt Hole Cover & Claws
      GTY302952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY RH
    1. Install the rear No. 1 seat armrest assembly RH with the bolt.

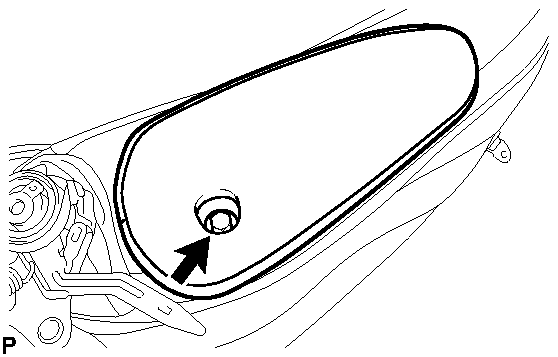

      Fig 17: Identifying RH Rear No. 1 Seat Armrest Assembly & Bolt
      GTY295396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  13. INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY LH

    HINT:

    Use the same procedure as for RH side.

  14. INSTALL SEAT ARMREST CAP RH
    1. Engage the 3 claws and install the seat armrest cap RH.

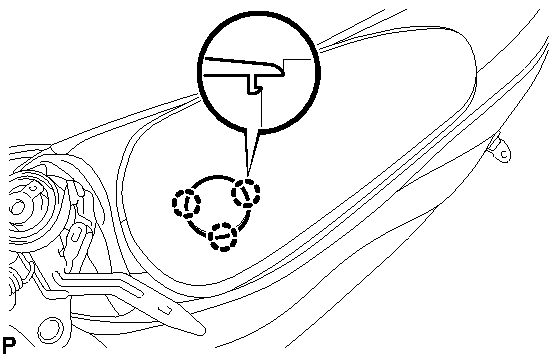

      Fig 18: Identifying RH Seat Armrest Cap & Claws
      GTY305297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL SEAT ARMREST CAP LH

    HINT:

    Use the same procedure as for RH side.

  16. INSTALL REAR SEATBACK ASSEMBLY
    1. Install the rear seatback assembly.

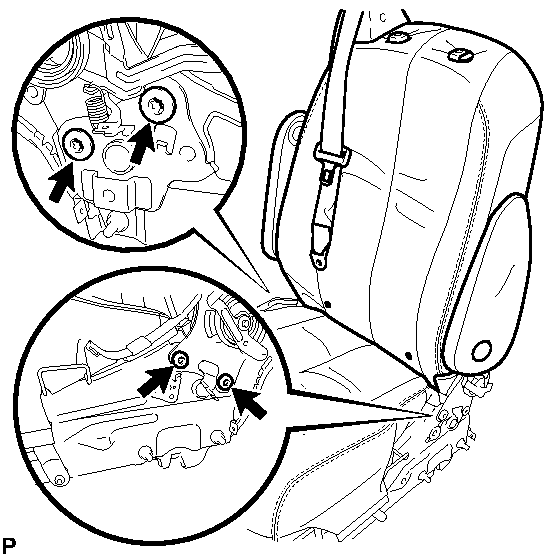

      Fig 19: Identifying Rear Seatback Assembly Bolts
      GTY297980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T55 "TORX" socket wrench, install the 2 bolts.

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

    3. Using a T45 "TORX" socket wrench, install the 2 bolts.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    4. Install the seat belt anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

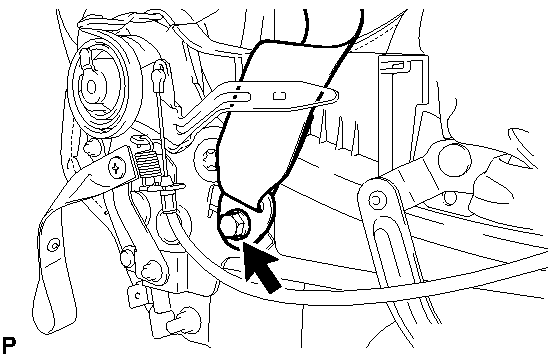

      Fig 20: Identifying Seat Belt Anchor & Bolt
      GTY297539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL REAR SEAT LOCK CONTROL CABLE
    1. Install the rear seat lock control cable.

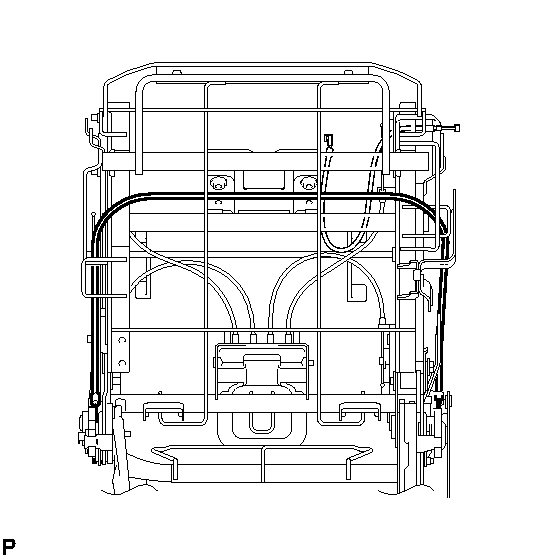

      Fig 21: Identifying Rear Seat Lock Control Cable
      GTY303765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear seat lock control cable.

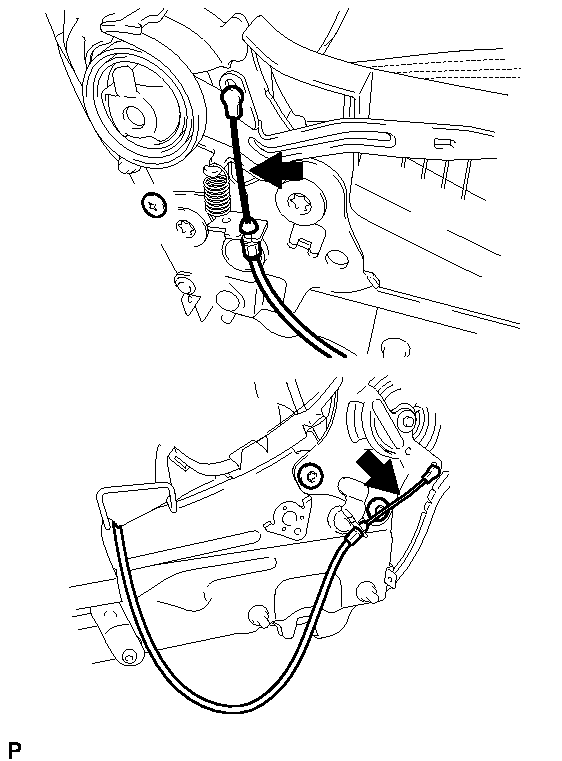

      Fig 22: Identifying Rear Seat Lock Control Cable
      GTY299784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL REAR SEAT LOCK CONTROL CABLE LH
    1. Install the rear seat lock control cable LH.

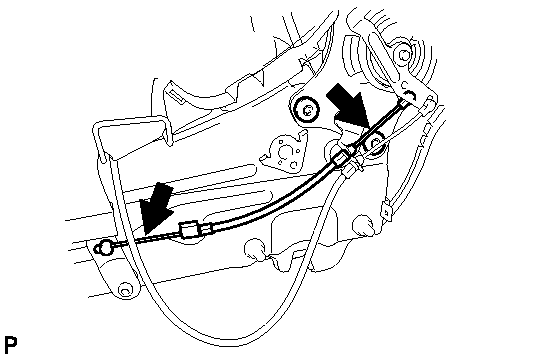

      Fig 23: Identifying LH Rear Seat Lock Control Cable
      GTY299151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FOLD SEAT LOCK LEVER
    1. Install the fold seat lock lever with the 2 nuts.

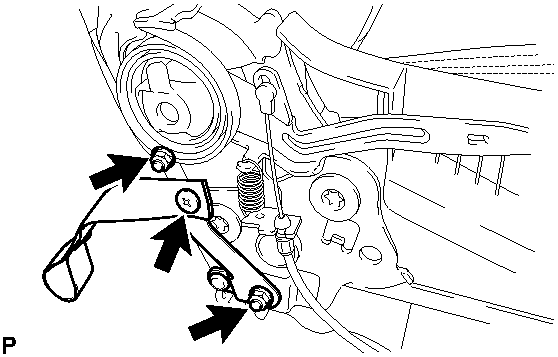

      Fig 24: Identifying Fold Seat Lock Lever, Nuts & Screw
      GTY304825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

    2. Install the assist grip strap with the screw.
  20. INSTALL RECLINING ADJUSTER INSIDE COVER RH
    1. Install the reclining adjuster inside cover RH.

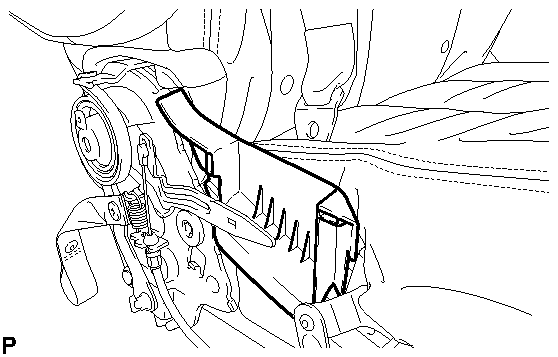

      Fig 25: Identifying RH Reclining Adjuster Inside Cover
      GTY297691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL RECLINING ADJUSTER INSIDE COVER LH
    1. Install the reclining adjuster inside cover LH.

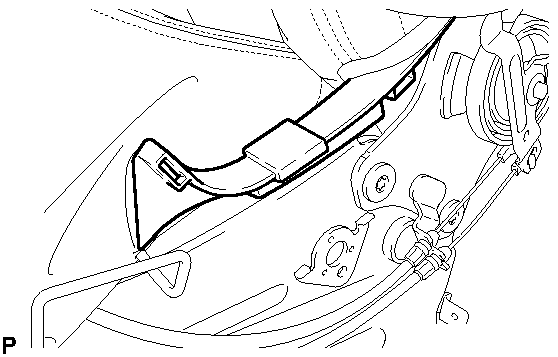

      Fig 26: Identifying LH Reclining Adjuster Inside Cover
      GTY297114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY  . Refer to INSTALLATION - Step 1
  23. INSTALL NO. 1 REAR SEAT RECLINING COVER LH
    1. Engage the 3 claws and install the No. 1 rear seat reclining cover LH.

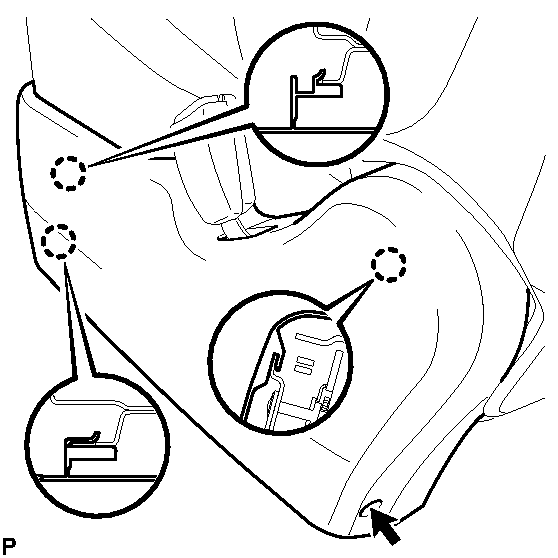

      Fig 27: Identifying LH No. 1 Rear Seat Reclining Cover, Claws & Screw
      GTY295081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tight the screw.
  24. INSTALL NO. 1 REAR SEAT RECLINING COVER RH
    1. Install the seat cable.

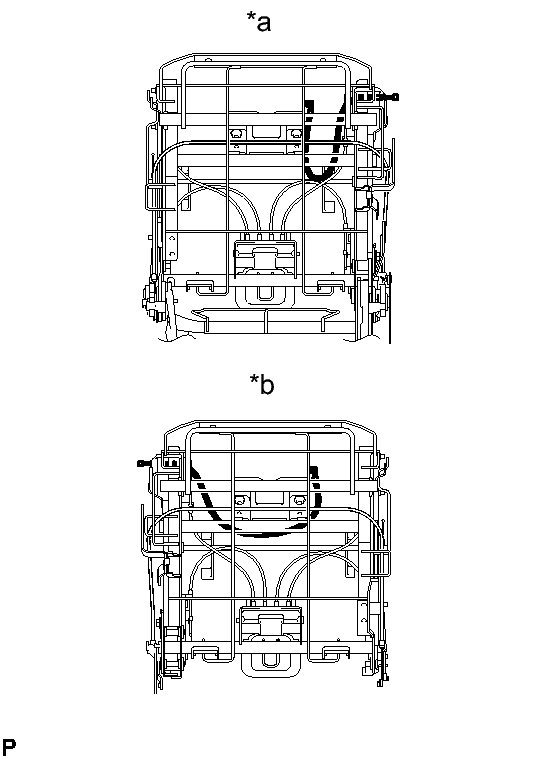

      Fig 28: Identifying RH & LH No. 1 Rear Seat Reclining Seat Cable
      GTY303012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a for RH Side
      *b for LH Side
    2. Connect the seat cable.

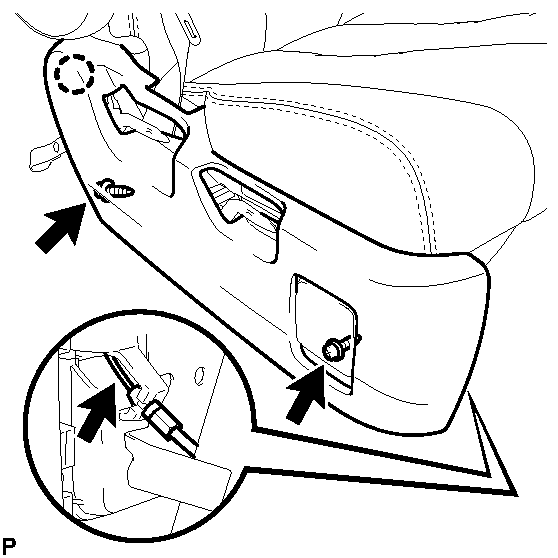

      Fig 29: Identifying RH No. 1 Rear Seat Reclining Cover, Seat Cable & Fasteners
      GTY297282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the claw and install the No. 1 rear seat reclining cover RH.
    4. Tighten the 2 screws.
  25. INSTALL RECLINING ADJUSTER INSIDE COVER LH
    1. Engage the 2 claws and 2 guides and install the reclining adjuster inside cover LH.

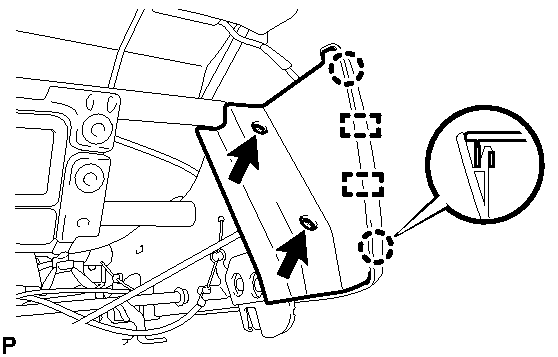

      Fig 30: Identifying LH Reclining Adjuster Inside Cover & Fasteners
      GTY297221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 2 screws.
  26. INSTALL RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  27. INSTALL RECLINING ADJUSTER RELEASE HANDLE RH
    1. Engage the claw and install the reclining adjuster release handle RH.

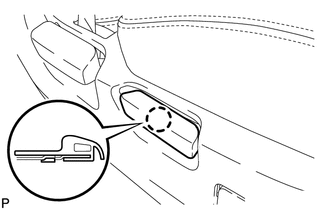

      Fig 31: Identifying RH Reclining Adjuster Release Handle & Claw
      GTY304504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH
    1. Engage the claw and install the No. 1 reclining adjuster release handle RH.

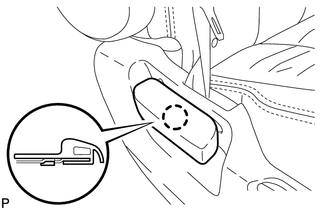

      Fig 32: Identifying RH No. 1 Reclining Adjuster Release Handle & Claw
      GTY304505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL REAR SEAT LEG REST RH
    1. Install the rear seat leg rest RH with the 4 bolts.

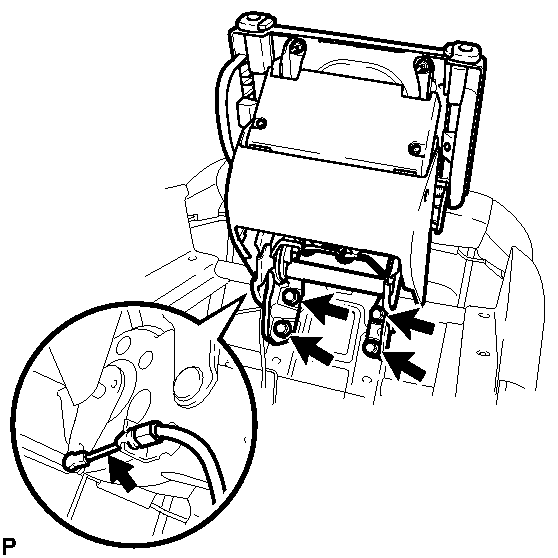

      Fig 33: Identifying RH Rear Seat Leg Rest, Bolts & Seat Cable
      GTY295078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf)

    2. Connect the seat cable.
  30. INSTALL REAR SEAT HEADREST ASSEMBLY
