Parts Location: Illustration

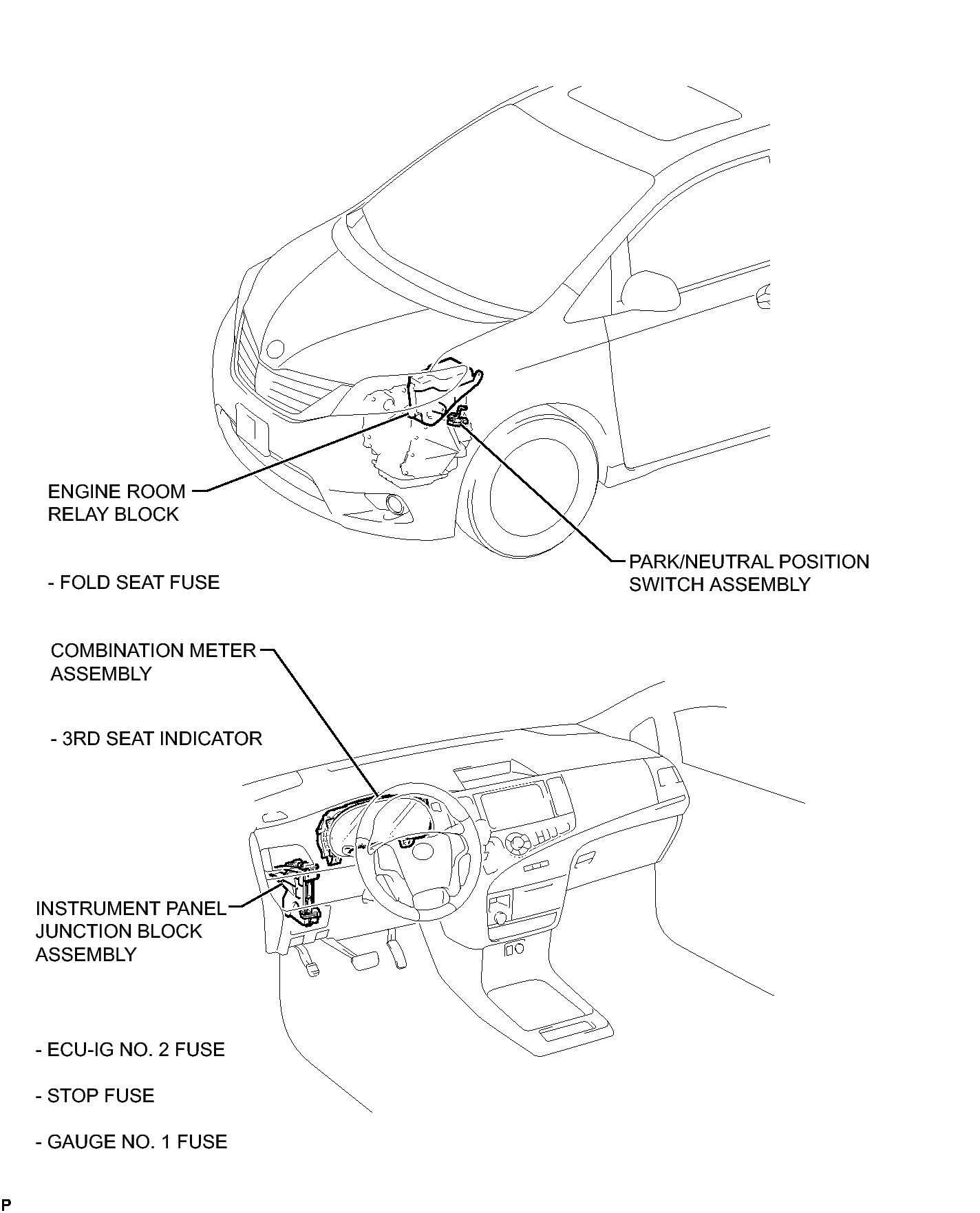

Fig 1: Rear Power Seat Control System Components Location (1 Of 3)
GTY304635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

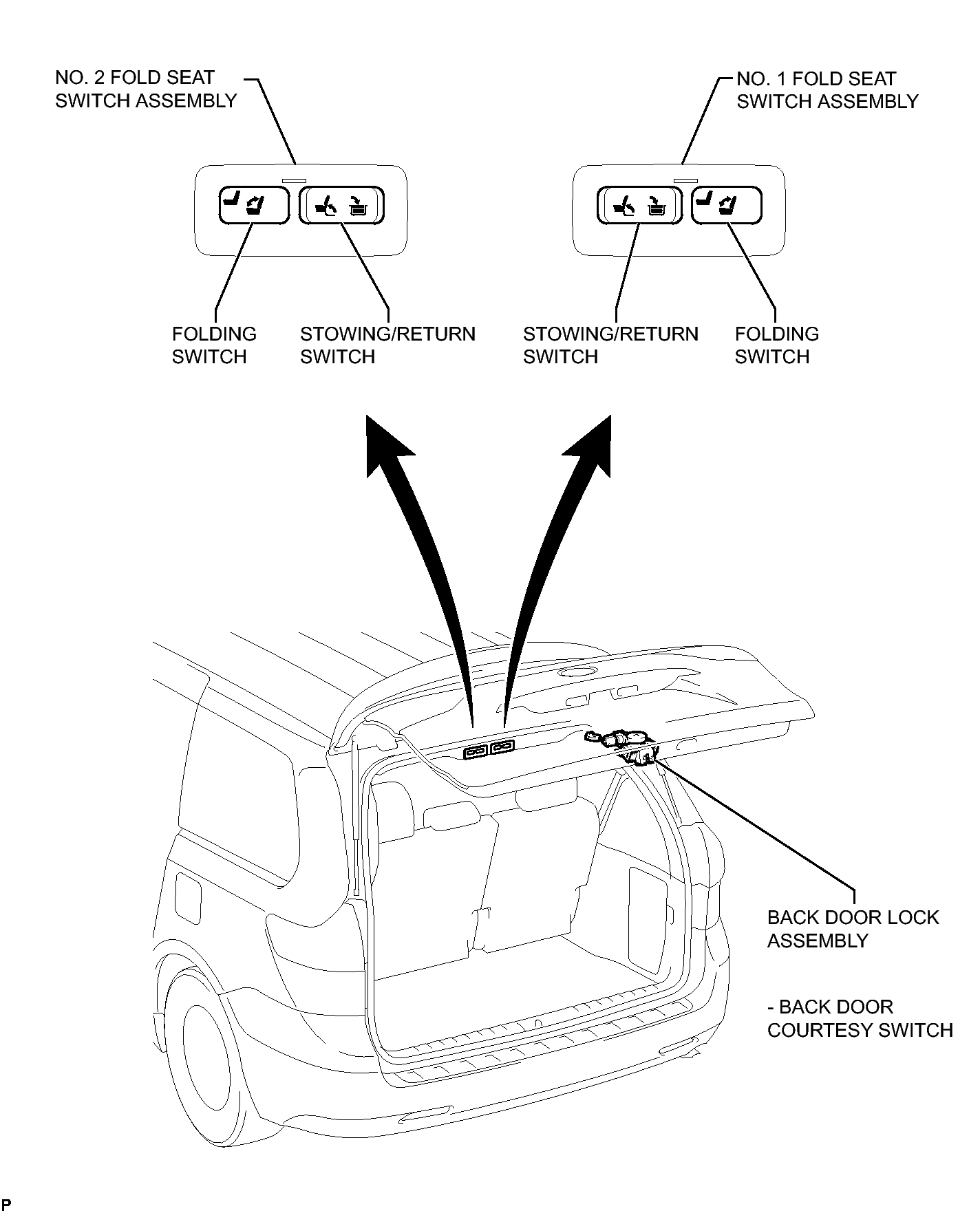

Fig 1: Rear Power Seat Control System Components Location (2 Of 3)
GTY302240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

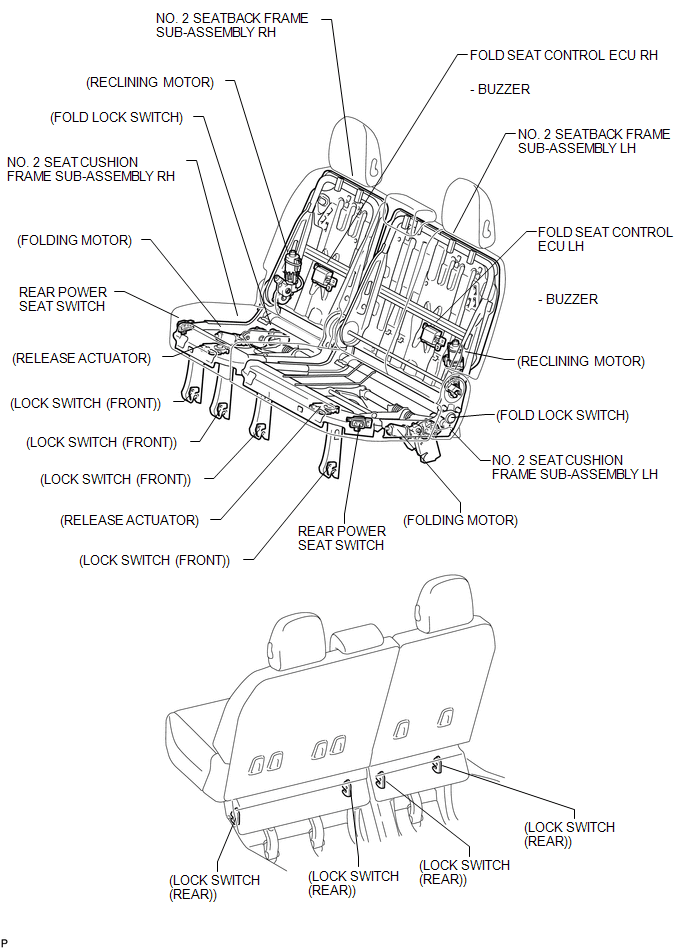

Fig 1: Rear Power Seat Control System Components Location (3 Of 3)
GTY299859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
